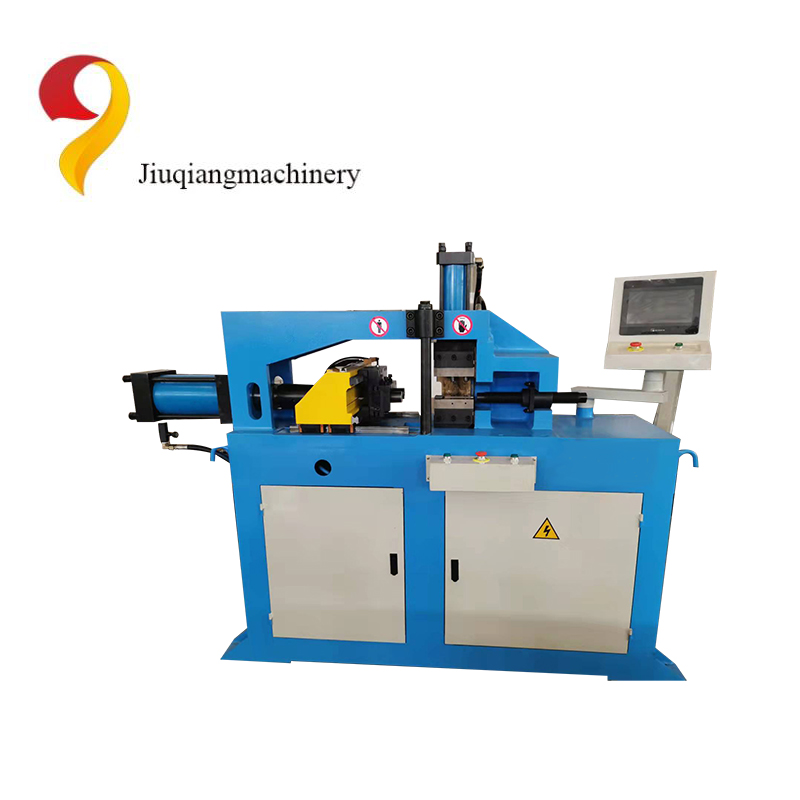

metal pipe end forming machine

Views: 0 Author: Site Editor Publish Time: 2025-09-28 Origin: Site

A metal pipe end forming machine is a specialized industrial equipment designed to reshape, modify, or process the ends of metal pipes/tubes to meet specific dimensional, structural, or functional requirements for subsequent assembly (e.g., joining, connecting, or fitting) in various industries. It eliminates manual labor for end processing, ensuring high precision, consistency, and efficiency—critical for applications where pipe connections must be leak-proof, strong, or compatible with other components.

Core Functions & Common End-Forming Processes

The machine performs a range of cold-forming (or sometimes hot-forming for thick/wide pipes) operations on pipe ends, depending on the application. Below are the most typical processes:

Process Name	Description	Key Application Scenarios
Expanding	Uses a mandrel, hydraulic/pneumatic pressure, or rollers to enlarge the pipe end’s inner/outer diameter. Creates a "flared" or "stepped" opening to fit over another pipe or component.	Plumbing (fitting connections), automotive fuel lines, HVAC ducting.
Reducing	Compresses the pipe end to decrease its diameter, forming a smaller, uniform section. Often used to create a "necked-down" end for inserting into a smaller pipe or fitting.	Hydraulic hoses, aerospace tubing, electrical conduit.
Flanging	Bends the pipe end outward at a 90° (or custom) angle to form a flat, circular "flange." Flanges allow bolts to fasten pipes to tanks, valves, or other flanged parts.	Oil/gas pipelines, industrial pressure vessels, water treatment systems.
Beading	Creates a raised, circular ridge (bead) on the pipe end’s outer surface. The bead acts as a stop to prevent fittings, hoses, or clamps from sliding off.	Automotive coolant lines, garden hoses, irrigation systems.
Threading	Cuts internal (female) or external (male) threads on the pipe end, enabling threaded connections with fittings, valves, or other pipes.	Plumbing (galvanized steel pipes), construction, industrial piping.
Chamfering	Removes sharp edges or burrs from the pipe’s cut end, creating a smooth, angled (45° typical) finish. Prevents damage to gaskets, seals, or O-rings during assembly.	Almost all pipe applications (preparation for welding, fitting, or threading).
Swaging	Shapes the pipe end into a tapered, conical, or custom profile (e.g., for nozzles or connectors). Uses dies or punches to compress and stretch the metal.	Aerospace fuel injectors, medical devices (e.g., hypodermic tube ends), spray nozzles.

Key Components of a Metal Pipe End Forming Machine

A standard machine consists of several critical parts working together to ensure precision:

Frame: A rigid structure that supports all components and resists vibration during high-pressure forming.
Feeding System: Automatically or manually loads pipes into the machine, ensuring proper alignment with the forming tools.
Clamping Unit: Secures the pipe firmly in place during forming to prevent movement (critical for dimensional accuracy).
Forming Tools: Dies, mandrels, punches, or rollers tailored to the specific process (e.g., expanding dies, threading taps, flanging tools).
Actuation System: Drives the forming tools using hydraulic, pneumatic, or electric power. Hydraulic systems are most common for heavy-duty applications (thick-walled pipes), while electric systems excel at precision for thin-walled or small-diameter tubes.
Control System: A PLC (Programmable Logic Controller) or touchscreen interface to set parameters (e.g., forming pressure, speed, depth) and automate the process. Some advanced models include sensors for quality checks (e.g., diameter measurement).
Unloading System: Removes the finished pipe from the machine after forming.

Types of Metal Pipe End Forming Machines

Machines are categorized by their automation level, pipe size, and specialized functions:

Manual/Hand-Operated: Small, portable machines for low-volume, on-site work (e.g., plumbing repairs). Require human force to actuate tools.
Semi-Automatic: Automates forming but requires manual loading/unloading. Suitable for medium-volume production (e.g., small-scale manufacturing).
Fully Automatic: Integrates feeding, clamping, forming, and unloading into a continuous line. Used for high-volume production (e.g., automotive, HVAC component manufacturing).
Specialized Machines: Designed for unique tasks, such as double-end forming machines (processes both ends of a pipe simultaneously) or multi-station machines (performs multiple processes—e.g., chamfering + threading + beading—in one pass).

Materials & Industries Served

Materials: Works with most metal pipes/tubes, including carbon steel, stainless steel, aluminum, copper, brass, and alloy metals. The machine’s tooling and actuation power are adjusted based on the metal’s ductility and thickness.
Key Industries:

Automotive (fuel lines, brake tubes, exhaust systems)
Plumbing & HVAC (water pipes, ducting connections)
Oil & Gas (high-pressure pipeline flanges, wellhead tubing)
Aerospace (precision fuel/ hydraulic tubes)
Medical (stainless steel tubes for devices like endoscopes)
Construction (structural pipe connections, electrical conduit)

Advantages of Using a Pipe End Forming Machine

Precision: Ensures consistent dimensions (e.g., thread pitch, flange flatness) across all parts, reducing assembly errors.
Efficiency: Replaces time-consuming manual work (e.g., hand-flanging) with automated processes, boosting production speed.
Strength: Cold-forming preserves the metal’s grain structure, resulting in stronger end connections than welded or cut ends.
Cost Savings: Reduces material waste and labor costs, especially in high-volume production.

In summary, a metal pipe end forming machine is a versatile tool that shapes pipe ends to enable reliable, standardized connections—making it indispensable in modern manufacturing and construction where pipe performance and assembly efficiency are critical.
