20+ years of expertise in manufacturing high-quality automatic steel pipe end forming machines.
Materials: Suitable for steel sheet, copper, aluminum, stainless steel, and more.
Key Specifications:
1. User-friendly CNC control unit for easy operation and maintenance.
2.Versatile machine capable of forming various metal tubes in different materials and shapes.
3.Safety features include an emergency stop device with manual and automatic operation modes.
4.Features a retraction stroke of 100 mm and can accommodate workpieces up to 450 mm in length.
5.Capable of forming shapes such as convex, concave, cross-section, flat, square, V-shaped, open elbow, and flat bend. Mold design can be customized based on workpiece and customer requirements.

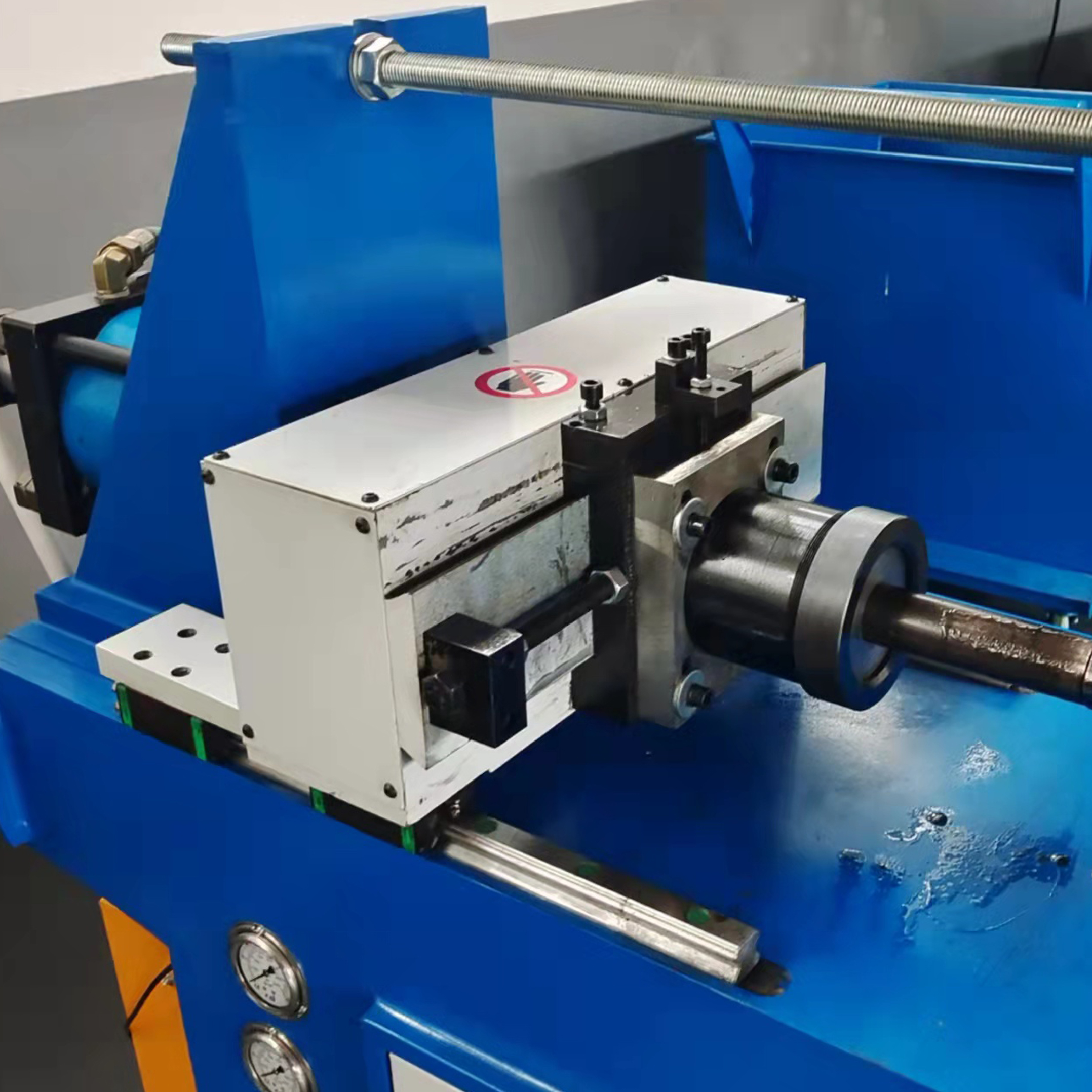

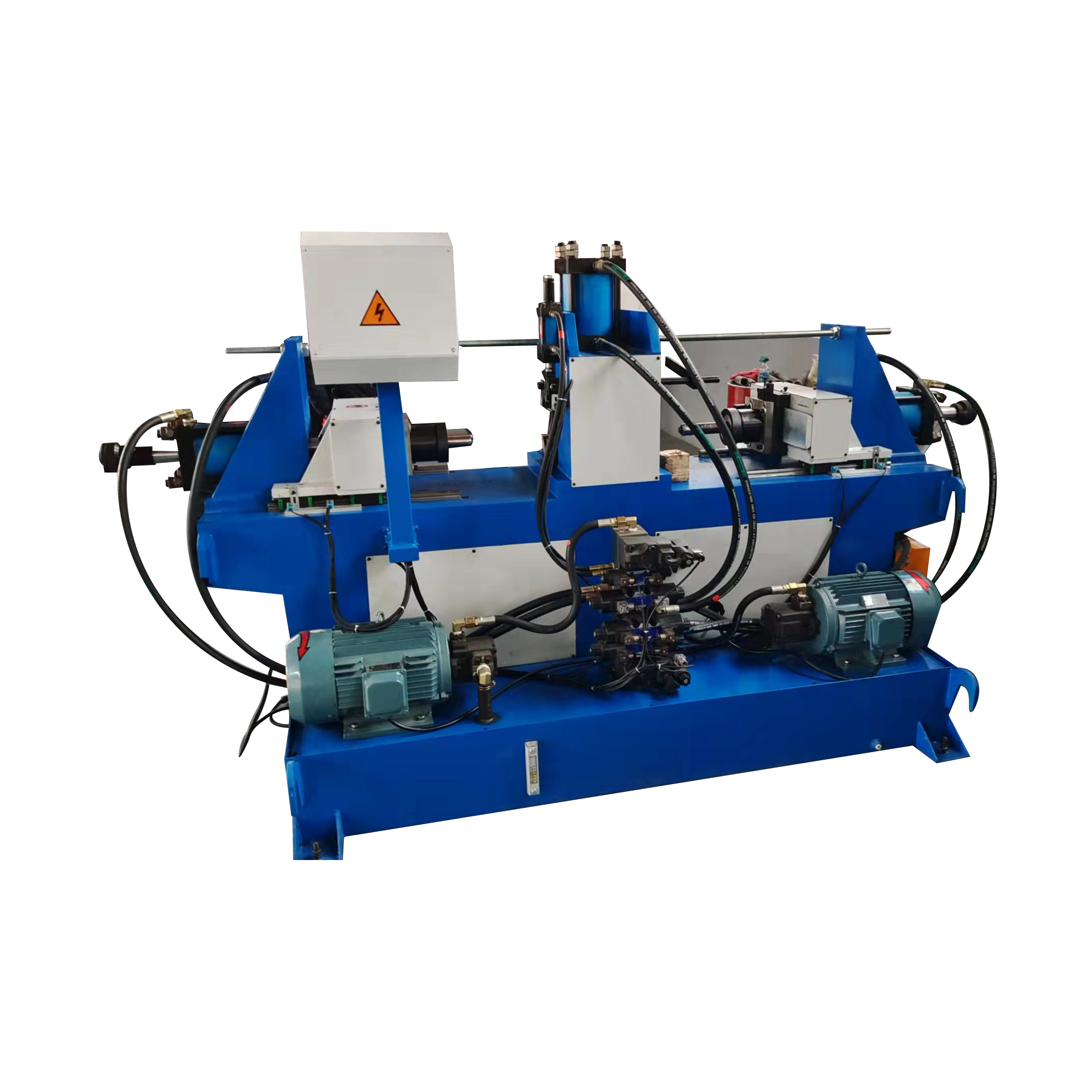

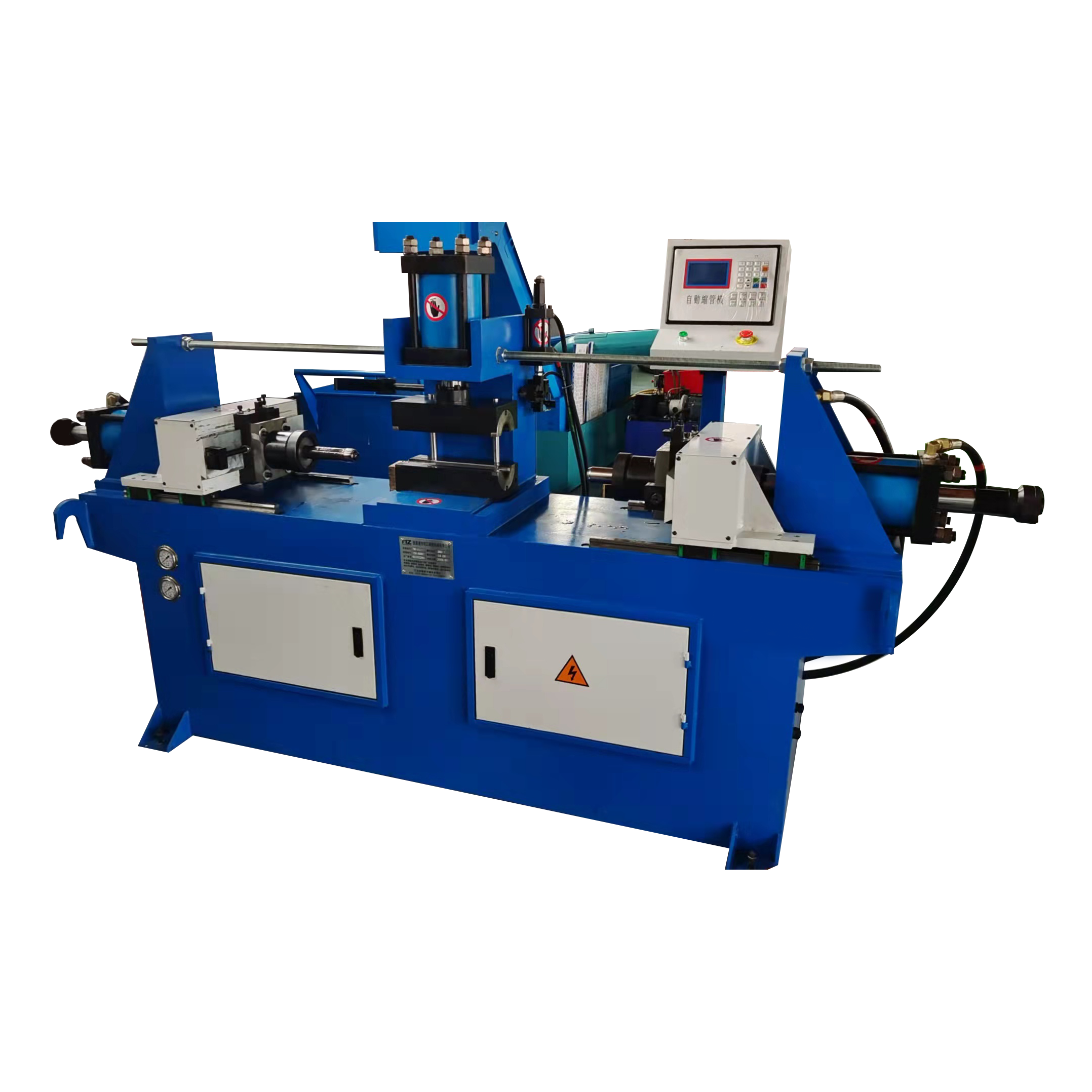

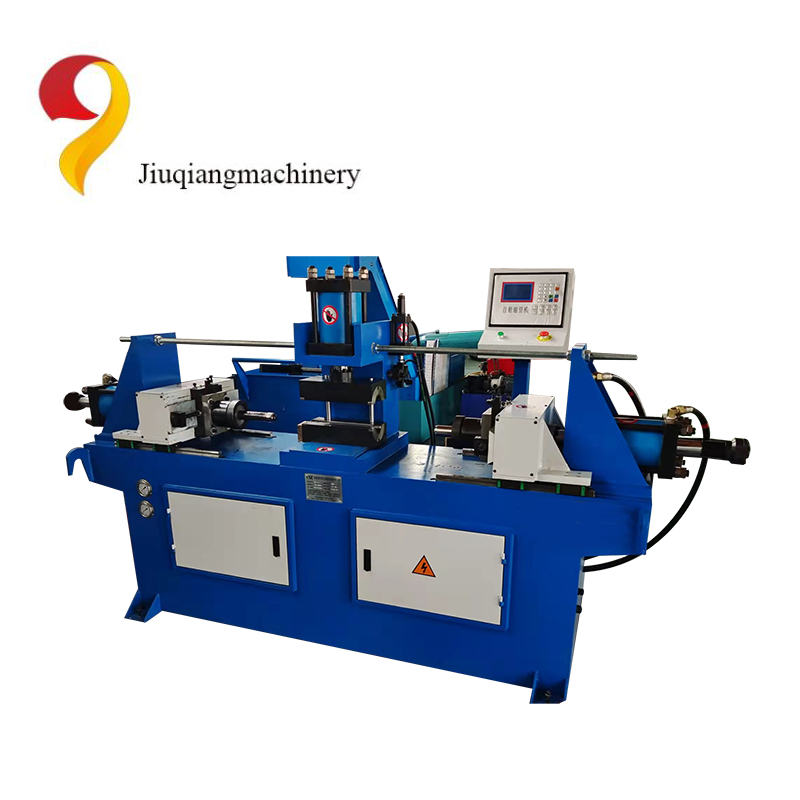

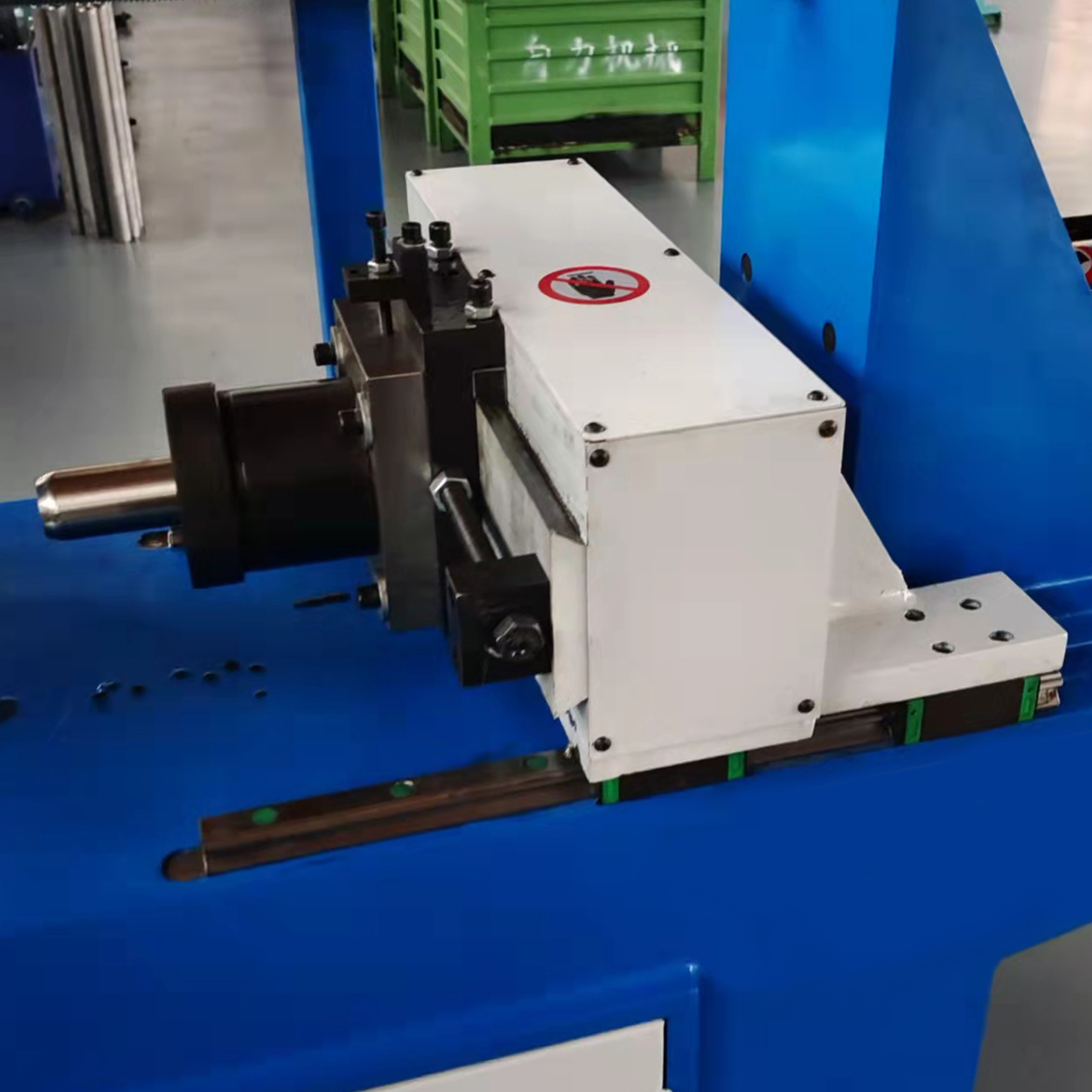

TM80CNC tube pipe end forming machine show

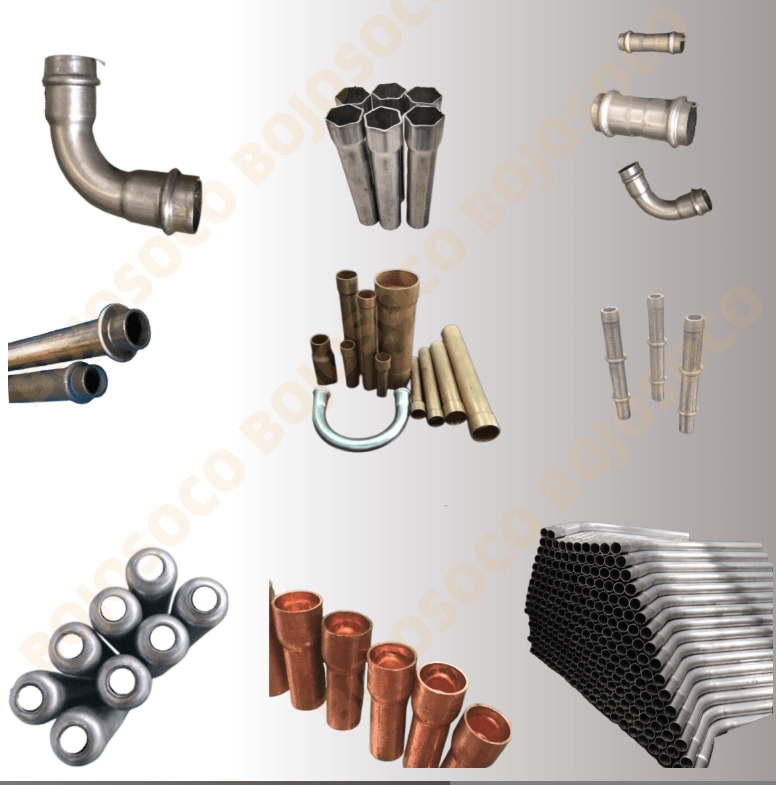

TM80CNC pipe end forming machine final sample
Technical Parameters
type | SG-40 | SG-60 | SG-80 | SG-100 |
Maximum tube (mm) | & phi;40*2.0 | & phi;60*2.0 | & phi;80*3.0 | & phi;100*3.5 |
Maximum processing length (mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Speed of work | 100 mm in3-4/sec | 100 mm in3-4/sec | 100 mm in3-4/sec | 100 mm in3-4/sec |
Size (cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight (kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The maximum processing length can be determined according to customer requirements. | |||
Warranty Information:
1. Warranty Coverage: jiuqiang machinery offer a one-year guarantee on the quality of the machine. During this period, if any spare parts of the machine are damaged, we will provide the components to customers at no cost. Shipping will be arranged through DHL or T/T.
2.Installation and Training: jiuqiang machinery factory offers complimentary services for installation, commissioning, and training by sending engineers to the customer's facility. Customers are responsible for providing double air tickets, as well as food and accommodation for our engineers. Alternatively, customers can opt to send their engineers to our factory for hands-on training and maintenance sessions.
3.Customer Support: jiuqiang machinery is committed to providing ongoing support to customers. For any operational assistance needed, customers can reach out to us via Skype, email, or phone at any time. jiuqiang offer round-the-clock online service for your convenience. Additionally, we create instructional videos to guide customers through the operation steps effectively.
