TM 60NC Tube End Forming Machine (Three Working Positions, Left and Right Clamping, Servo Motor Mold Change)

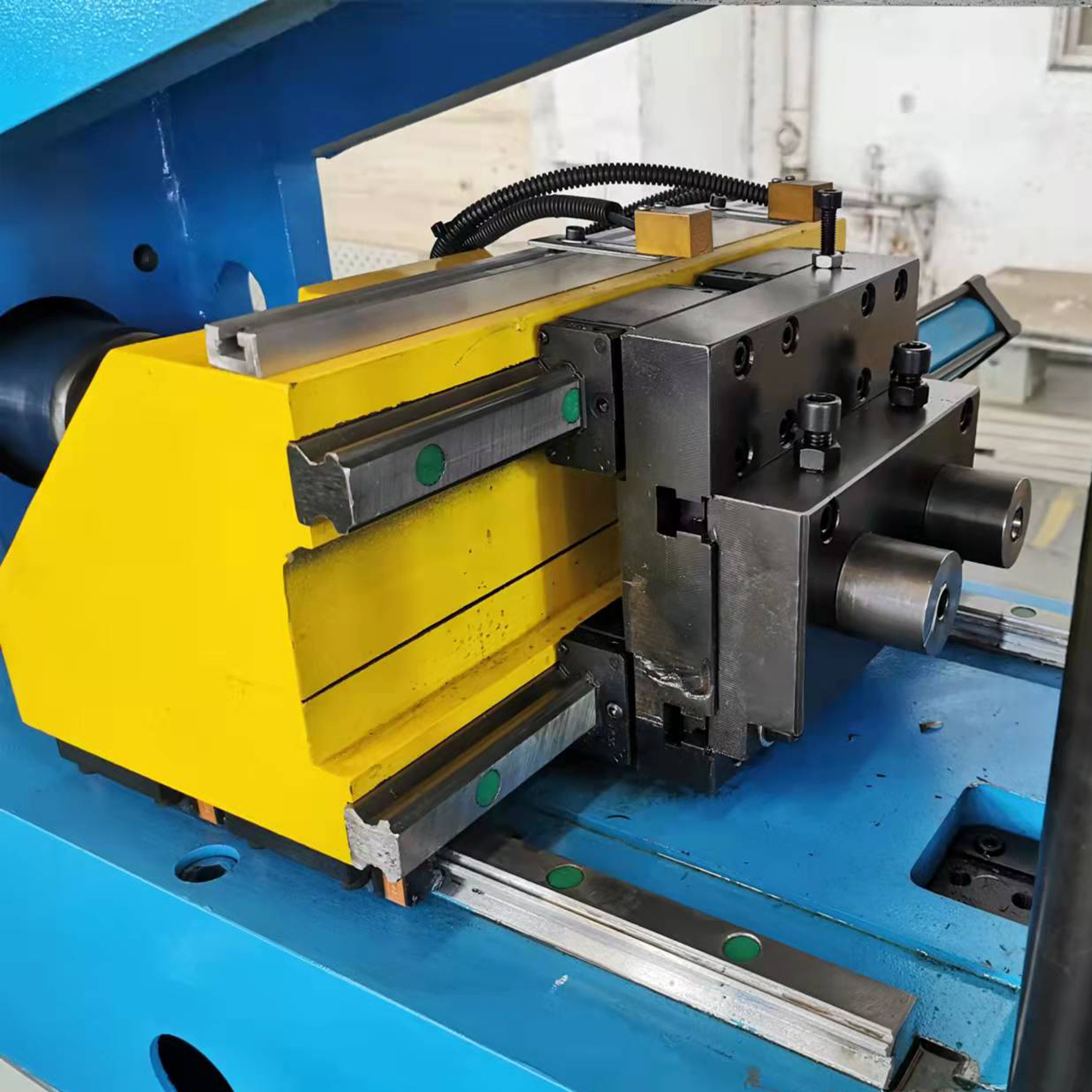

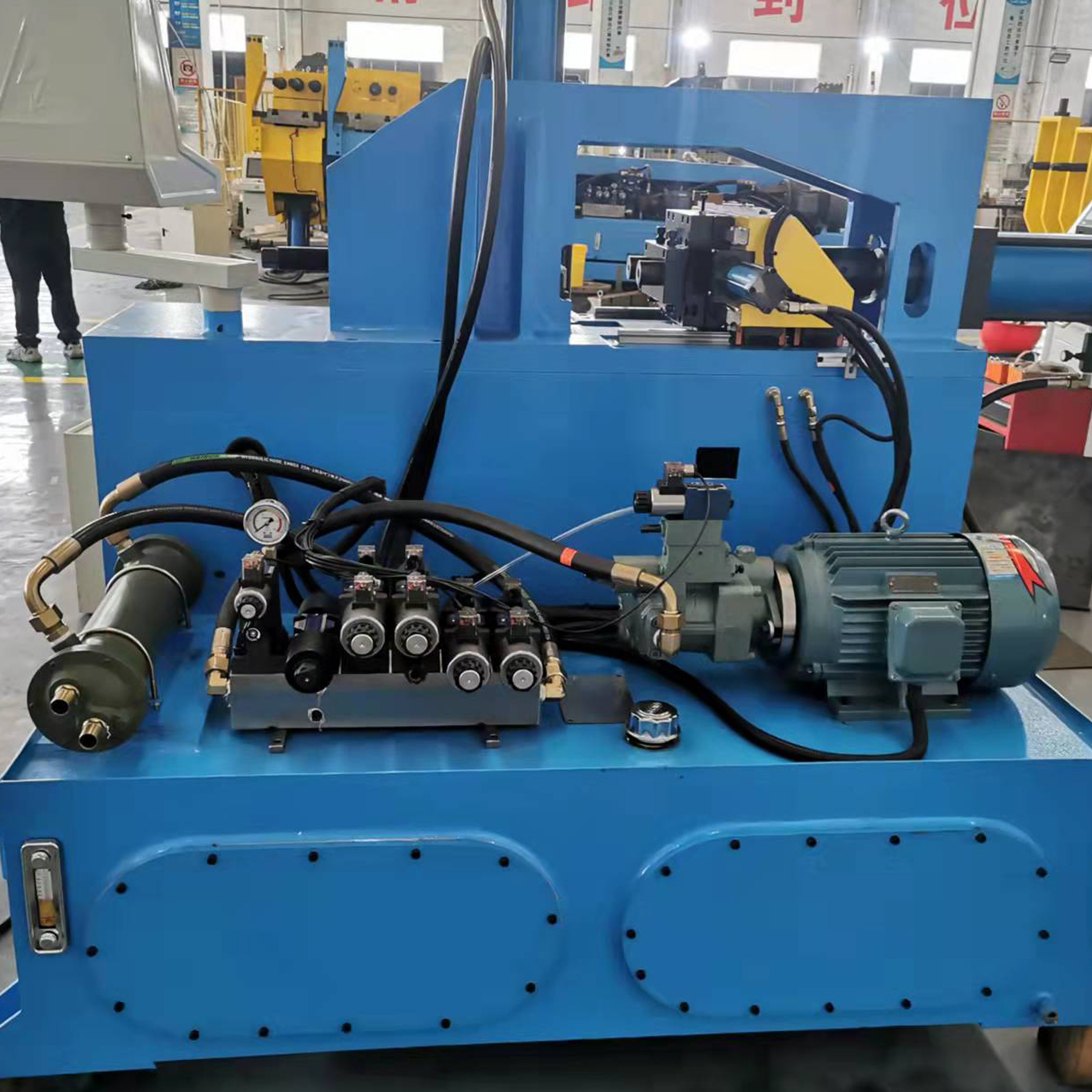

1.This product features microcomputer control and hydraulic-driven operation. It utilizes a Chinese character display and human-computer dialogue interface, allowing for manual or semi-automatic operation. The one-point foot switch serves dual functions of starting and emergency stop.

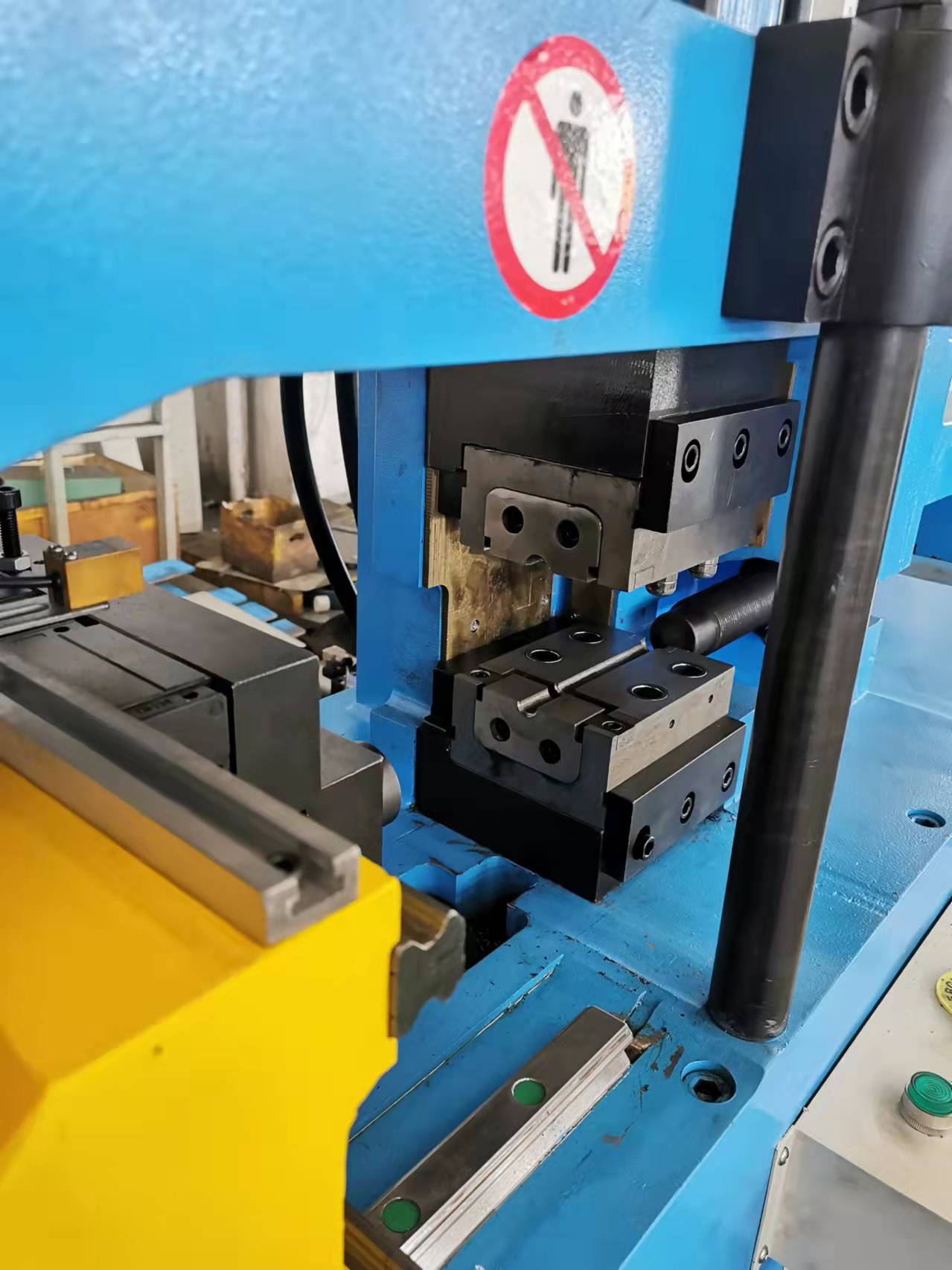

2.Equipped with a three-station layout, this tube end forming machine can simultaneously shrink the tube at three positions. The use of linear guides ensures wear-free movement and excellent repeatability.
3.Processing Shapes: Convex, concave, nodular, long-biased, square, topological, oblique, V-shaped, cracked, and flat. Mold shapes should be tailored to the specific processing requirements.
4.The distance between the two ends is adjustable based on the tube length (applies to double-end forming machines only).
5.Single-end or double-end clamping can be executed depending on the pipe length.
6. Known for its user-friendly operation, stable performance, high efficiency, and safety features, this product is an ideal choice for the pipe processing industry.

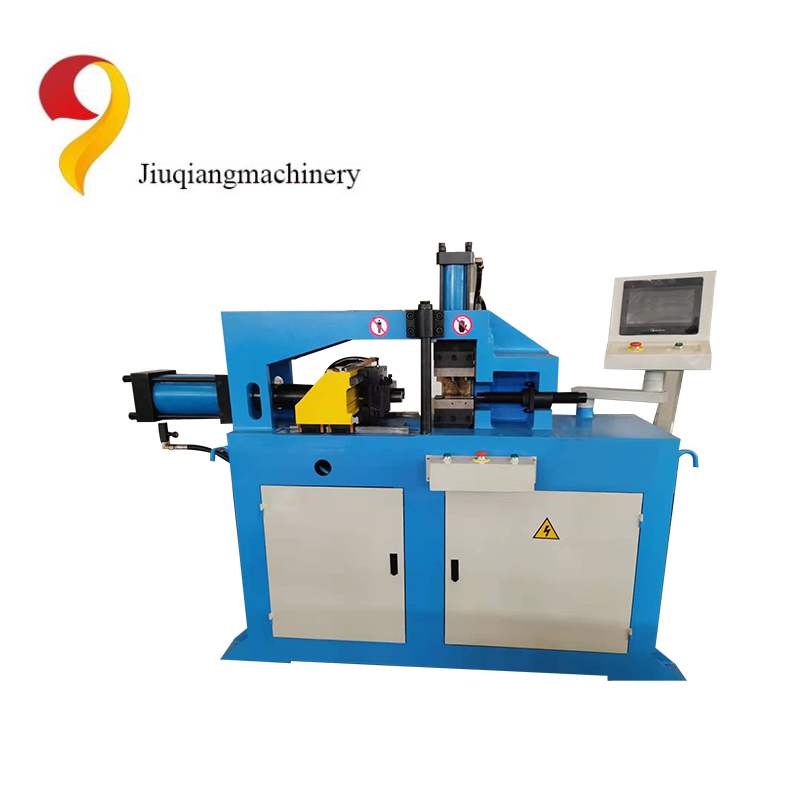

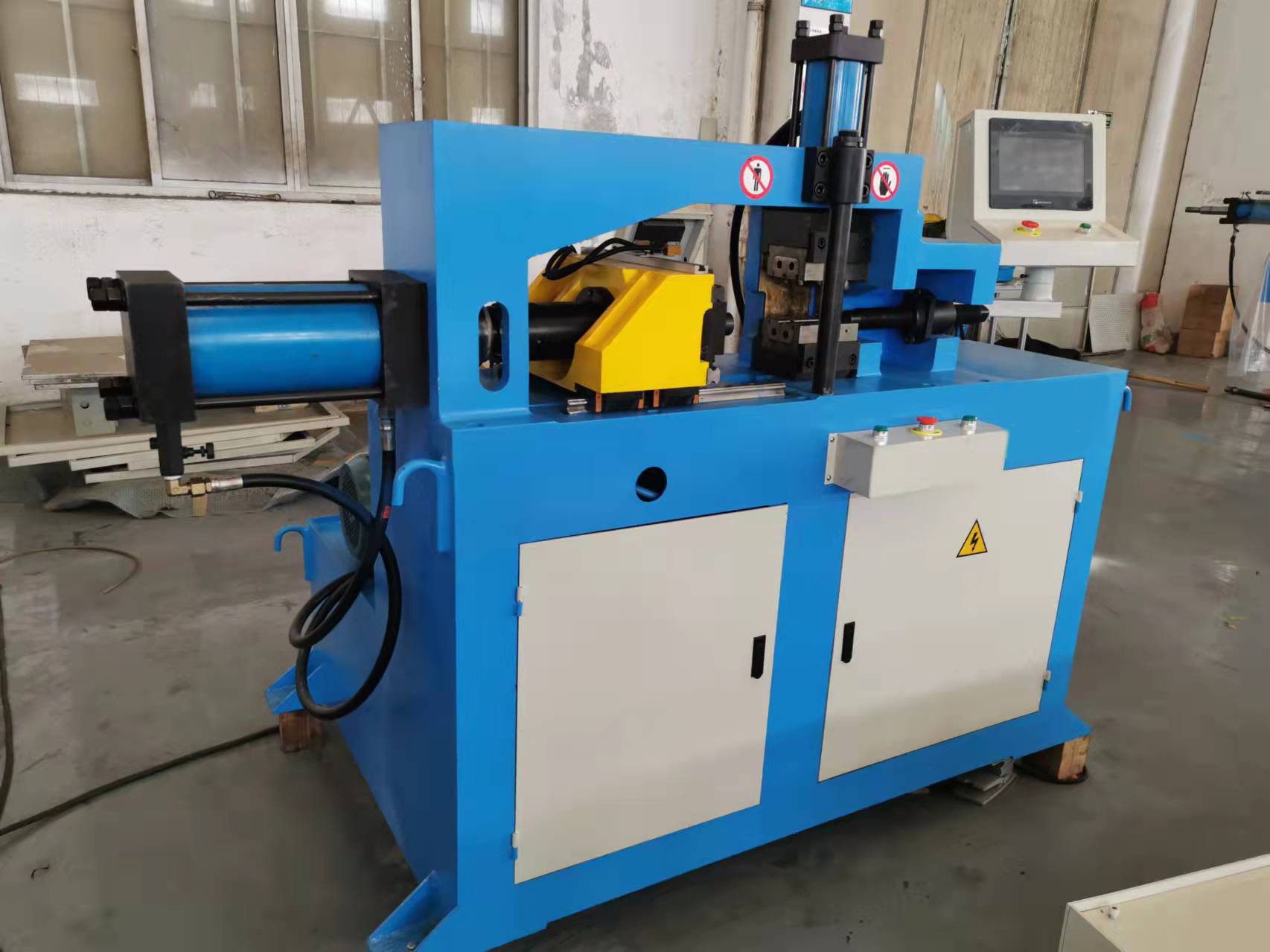

TM 60CNC pipe end forming machine show
Specification :
Specifications / Models . | TM 6 0CNC | notes |
Maximum applicable pipe fittings | Φ 60mm × 2 | Maximum working schedule According to fulfill customer's request |
Maximum working time | 1 25 mm | |
Oil pressure | 12 Mpa | |
Speed of work | 100 mm at 3-4/s | |
Total Power | 5.5 kW | |
Machine size (length x width x height ) | 2450mm x 850mm x 1400mm | |
Machine weight | 800 kg |
Frequently Asked Questions:
1. Manufacturer or Trading Company?
We are a manufacturer specializing in metal tube processing machinery. Established in 2005,
our factory is based in China.
2.How to Choose a Pipe Bending Machine?
To select the right machine, provide us with:
Outer diameter range
Wall thickness range
Bend radius (center line of radius)
Pipe material
Providing product drawings is beneficial.
3.Control System of the Machine?
Standard control: Mitsubishi PLC (Windows system)
Special control: IPC control.
4.Difference Between CNC and CNC Machine Tools?
CNC: Standard hydraulic pipe bender with manual feeding and rotation, and hydraulic automatic bending.
CNC Machine: Fully automatic tube bender with servo motors for feeding and rotating, hydraulic or servo motors for bending, and multiple tool stacks for various bending radio.
