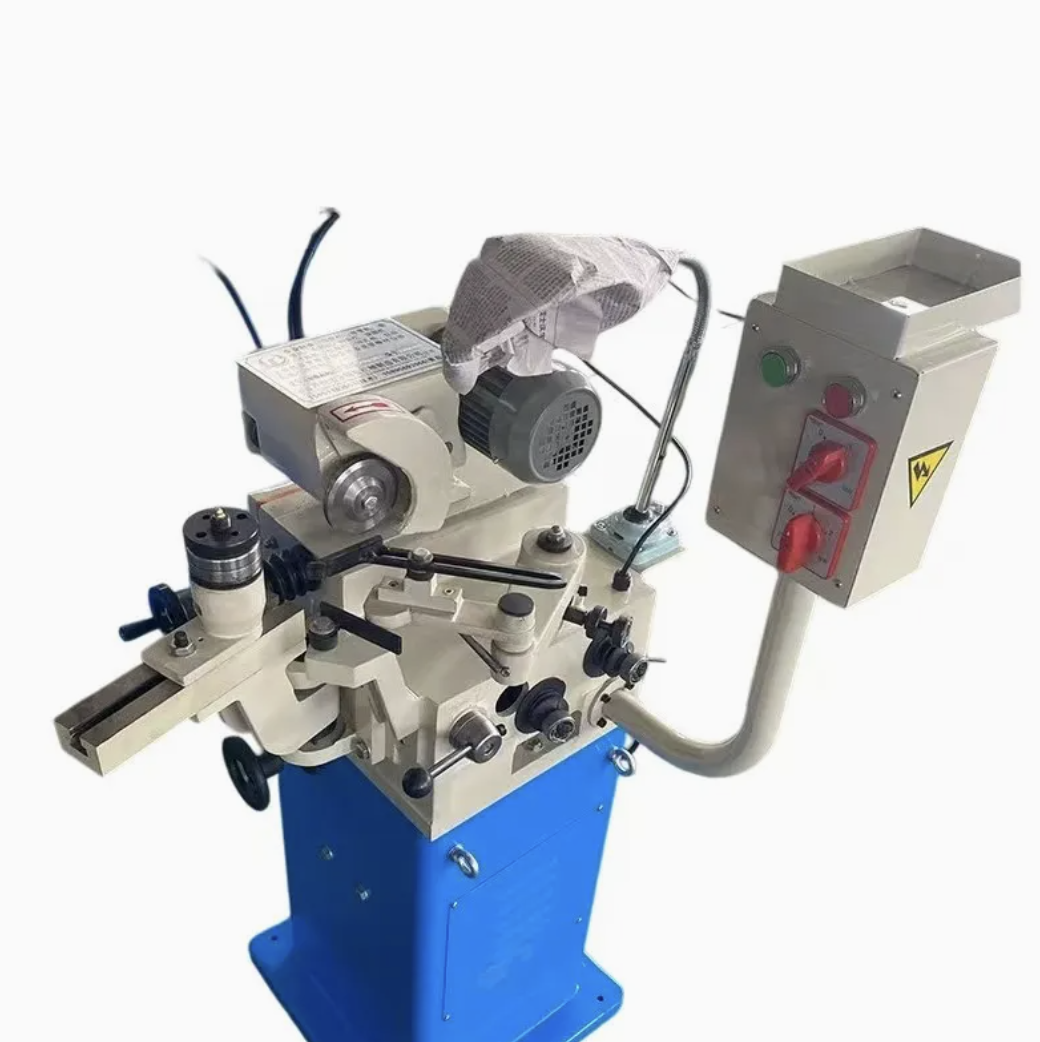

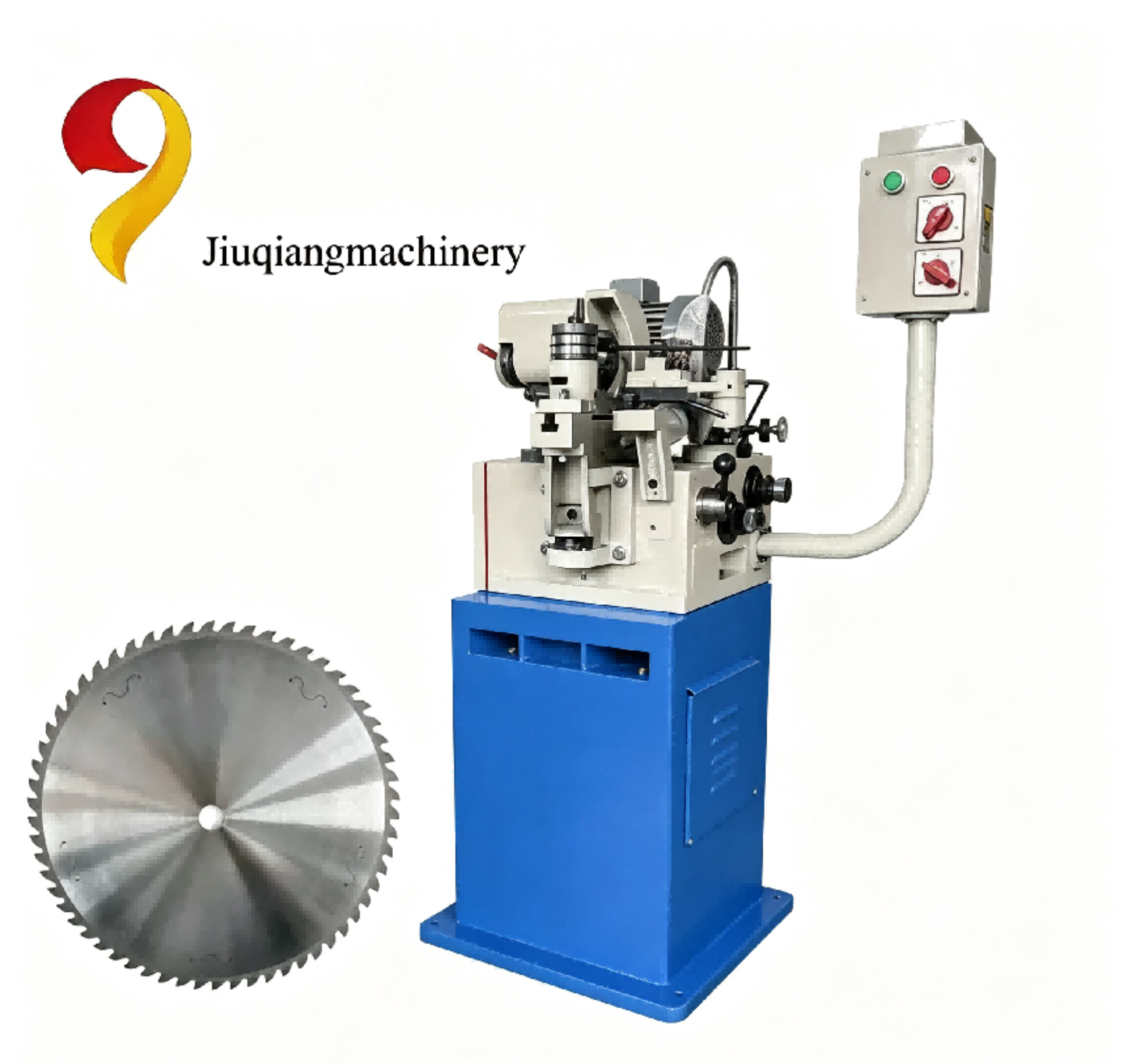

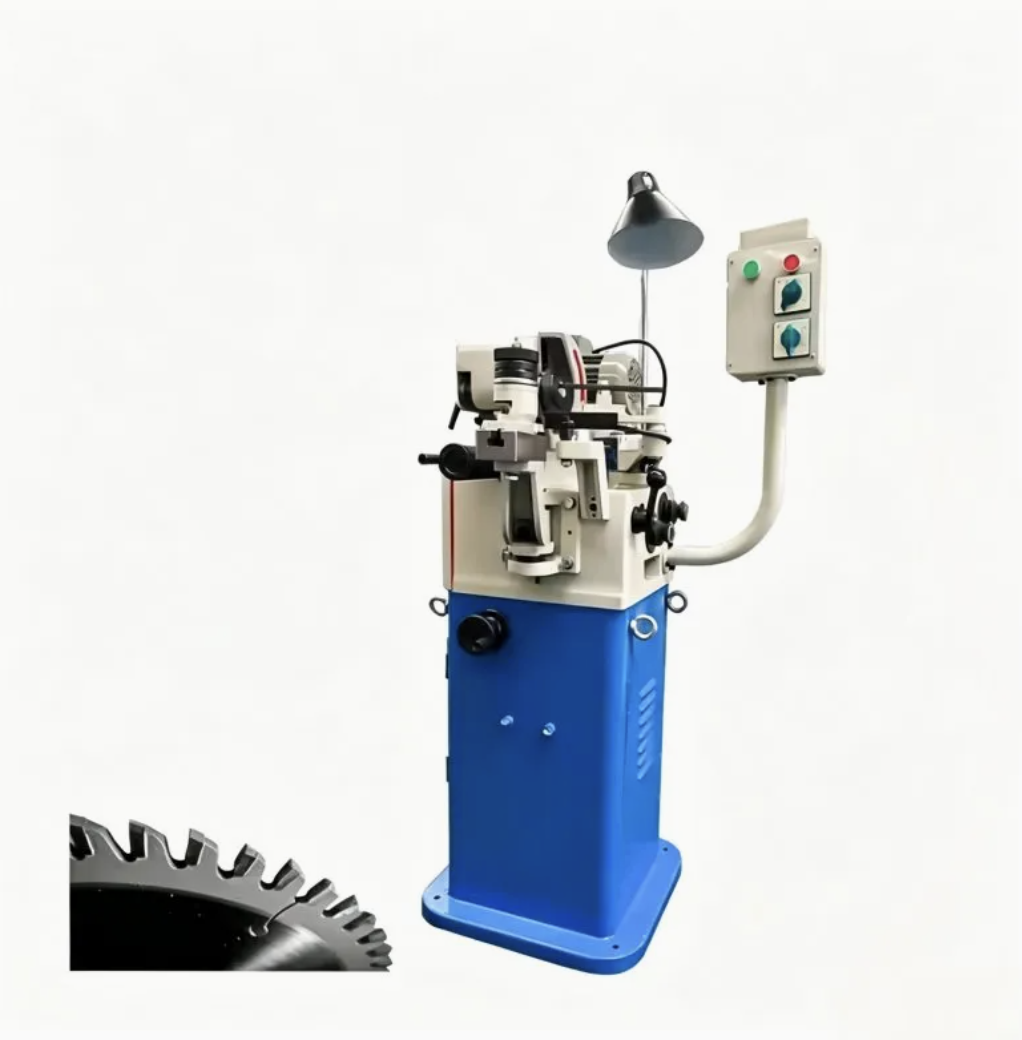

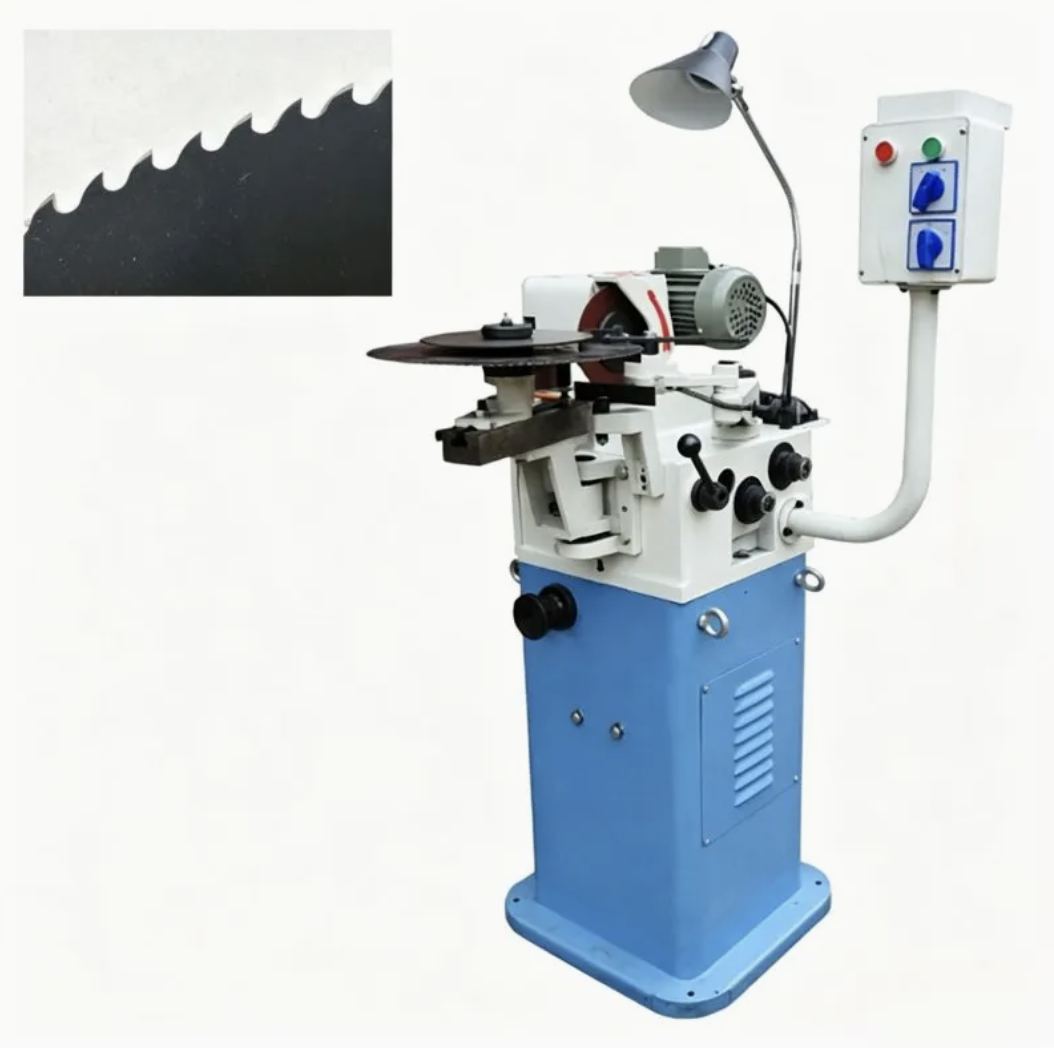

Features on Saw Blade Sharpener

·Operation panel offers easy operation of machine.

Economical, efficient and simple construction. Drive assembly is a simple combination of driving motor and cam drive motor, providing dependable feeding and trouble-fee operation.

All regulating levers are arranged in the proper order so that quick and easy adjusting can be made with the: cutting angle, back gap angle, gear depth, tooth pitch, as well as grinding the saw blade precisely.

The no step speed change of the belt disc on the machine makes adjusting the angle a seamless process to keep up with the change in the tooth pitch.

The head of the grinding wheel is able to move up and down to grind the bevel edge without having to replace the grinding wheel.

The machine is controlled by an elevation difference control button, which can grind the tooth at different elevations. There is also an SG-2 option.

The transmission unit, driven by the grinding wheel and transmission device, ensures efficient and safe functionality.

 Main Technical Parameters Sheet
