JQ50CNC automatic pipe bending machine manufacturer

A pipe bending machine is a crucial tool in metalworking. It is designed to precisely bend pipes of various materials and diameters. It operates by applying force to gradually deform the pipe into the desired curved shape. There are different types, such as manual, hydraulic, and electric models. Manual ones are suitable for small-scale, simple bending tasks. Hydraulic pipe bending machines offer greater power and accuracy, ideal for thicker pipes and more complex bends.
Availability:
Inquire

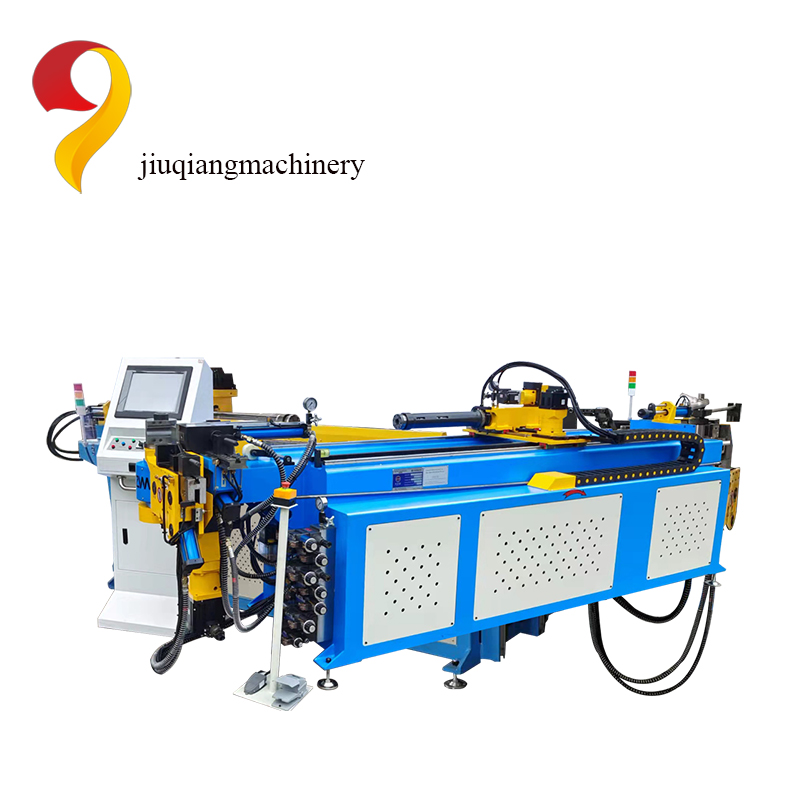

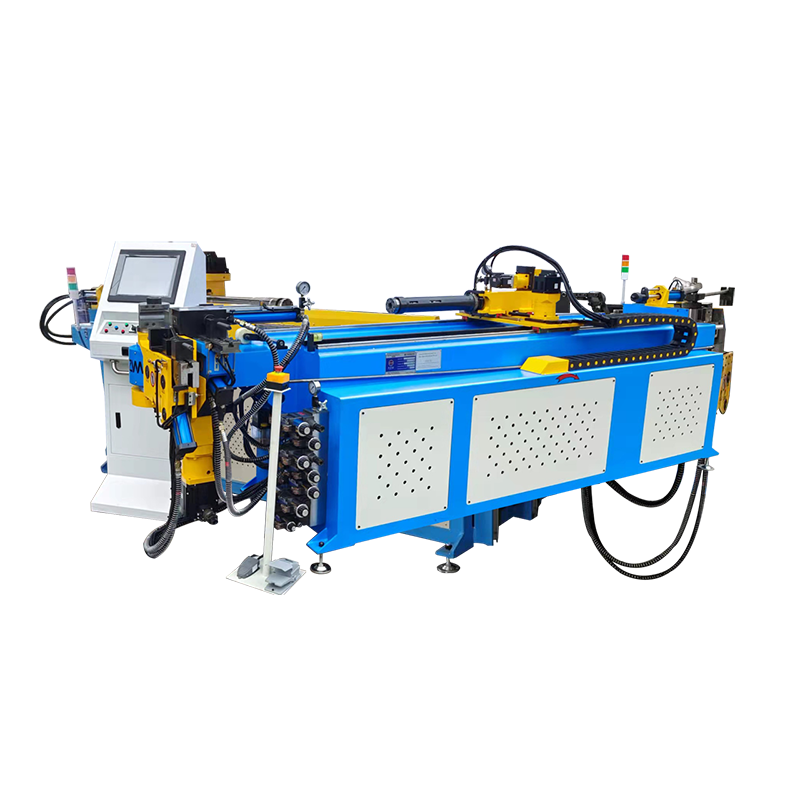

JQ50CNC pipe bending machine
Introduction
Why Choose Us
We prioritize quality in every aspect of our manufacturing process, ensuring that our pipe bending machines meet the highest standards of performance, durability, and precision. We offer customizable solutions to meet your specific requirements, providing tailored pipe bending machines that align with your unique needs and applications. With 20 years of experience in the industry, we have the knowledge and expertise to deliver cutting-edge pipe bending machines that cater to diverse industrial sectors.
ABOUT US
SERVICE
Intruduction of Jiuqiang machinery
  • Jiuqiang Machiner is one of the leading pipe bening machine manufactuerer in China, we offer several options in pipe bending machine.
    加 Created with Sketch.
    形状 Created with Sketch.
    Main machine of jiuqiang machinery
    △ NC pipe bending machine                          △CNC pipe bending machine                  △left and right pipe bending machine
    △double head pipe bending machine             △metal disk saw machine                        △pipe end forming machine                      △pipe chamfering machine                            △steel pipe production line                      △customization automatic pipe bending production line
Model
38CNC-2A-1S
50CNC-2A-1S
63CNC-2A-1S
76CNC-2A-1S
Maximum capacity
38.1 (1.5”) × 2 mm
50.8 (2”) × 2 mm
63.5 (2.5”) × 4 mm
76.2 (3”) × 5 mm
Curvature
0-190°
0-190°
0-190°
0-190°
Bending radius
10-200mm(for machines)
15-250mm(for machines)
20-300mm(for machines)
25-350mm(for machines)
Minimum bending radius
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
Spindle length
2300mm(customizable)
2500mm(customizable)
3000mm(customizable)
3200mm(customizable)
Maximum bending speed
90 °/s
65 °/s
60 seconds
45/sec
Bending accuracy
± 0.1 °
± 0.1 °
± 0.1 °
± 0.1 °
Motor Power
4 kW
5.5 kW
7.5 kW
7.5 kW





Model
89CNC-2A-1S
114CNC-2A-1S
129CNC-2A-1S
168CNC-2A-1S
Maximum Capacity
￣ 89 (3.5”) × 8 mm
114 (4.5”) × 8 mm
129(5”)×12mm
168(6.5”)×16mm
Curvature
0-190°
0-190°
0-190°
0-190°
Bending radius
30-450mm(for machines)
40-550mm(for machines)
50-650mm(for machines)
60-850mm(for machines)
Mini bend radius
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
Spindle length
3800mm(customizable)
4500mm(customizable)
4600mm(customizable)
6500mm(customizable)
Maximum bending speed
40/sec
25/sec
20 seconds
10 seconds
Bending accuracy
± 0.1 °
± 0.1 °
± 0.1 °
± 0.1 °
Motor Power
11 kW
15 kW
18.5 kW
22 kW
