JQ38CNC pipe bending machine manufacturer

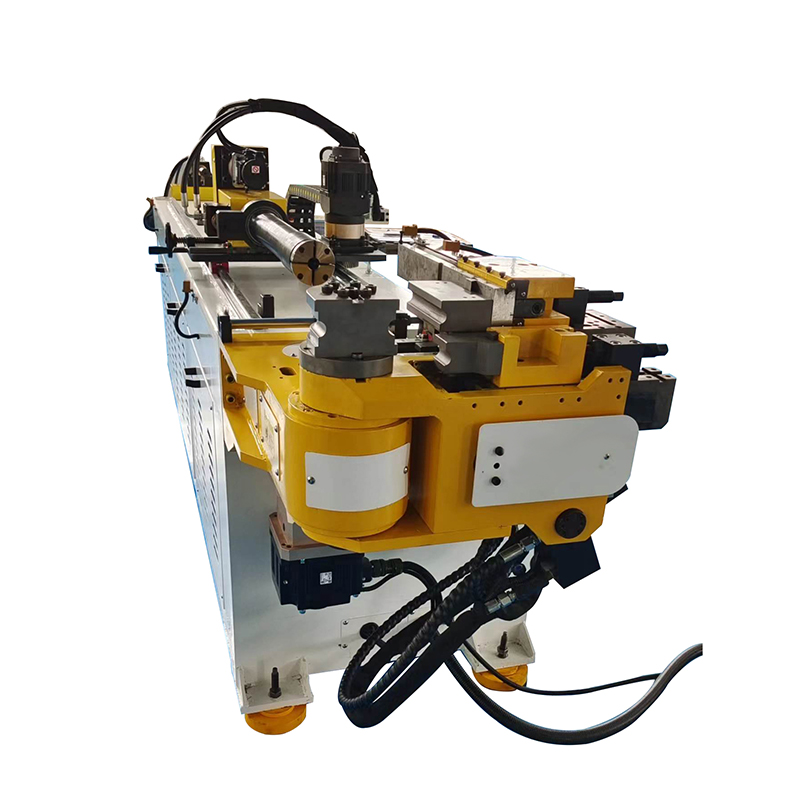

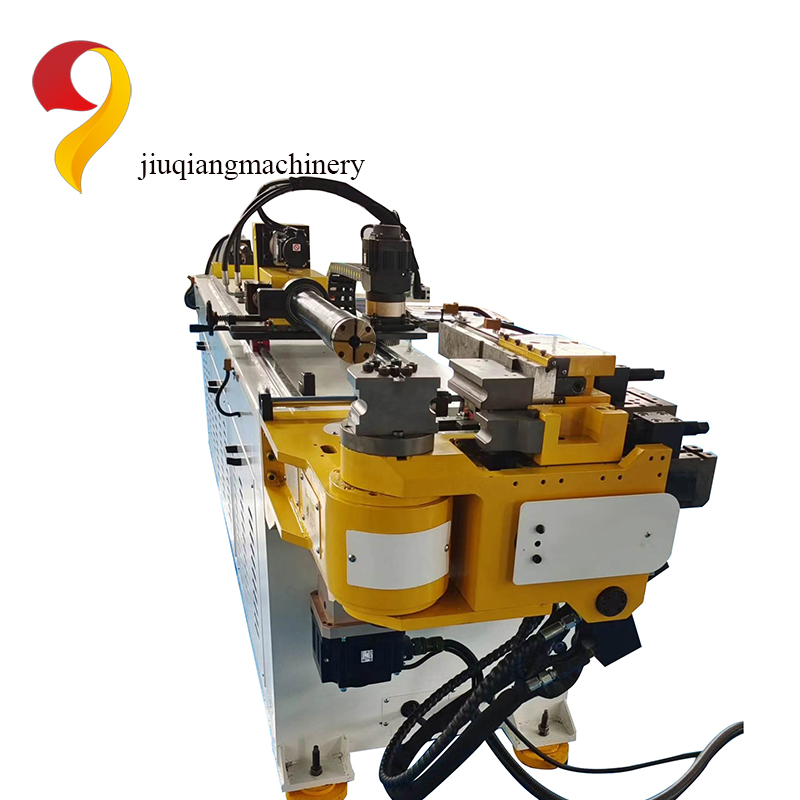

Enhance precision and efficiency with the 38CNC-2A-1S automatic pipe bending machine. Featuring automatic error detection for real-time fault display on the screen, operators can swiftly address obstacles. Material input is seamless through the touch screen interface. Each bending step allows for resetting compensation data, speed adjustments, and gap release for varying materials. Program up to 5 action sequences and 10 running speeds per bend, streamlining operations and reducing pipeline interference. Servo motor-driven bending control and corner feeding ensure high accuracy and efficiency in bending angles. Ideal for intricate pipe configurations and high precision requirements.
Availability:
Inquire

JQ38CNC pipe bending machine
Introduction
Why Choose Us
We prioritize quality in every aspect of our manufacturing process, ensuring that our pipe bending machines meet the highest standards of performance, durability, and precision. We offer customizable solutions to meet your specific requirements, providing tailored pipe bending machines that align with your unique needs and applications. With 20 years of experience in the industry, we have the knowledge and expertise to deliver cutting-edge pipe bending machines that cater to diverse industrial sectors.
ABOUT US
SERVICE
Intruduction of Jiuqiang machinery
  • Jiuqiang Machiner is one of the leading pipe bening machine manufactuerer in China, we offer several options in pipe bending machine.
    加 Created with Sketch.
    形状 Created with Sketch.
    Main machine of jiuqiang machinery
    △ NC pipe bending machine                          △CNC pipe bending machine                  △left and right pipe bending machine
    △double head pipe bending machine             △metal disk saw machine                        △pipe end forming machine                      △pipe chamfering machine                            △steel pipe production line                      △customization automatic pipe bending production line
Model
38CNC-2A-1S
50CNC-2A-1S
63CNC-2A-1S
76CNC-2A-1S
Maximum capacity
38.1 (1.5”) × 2 mm
50.8 (2”) × 2 mm
63.5 (2.5”) × 4 mm
76.2 (3”) × 5 mm
Curvature
0-190°
0-190°
0-190°
0-190°
Bending radius
10-200mm(for machines)
15-250mm(for machines)
20-300mm(for machines)
25-350mm(for machines)
Minimum bending radius
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
Spindle length
2300mm(customizable)
2500mm(customizable)
3000mm(customizable)
3200mm(customizable)
Maximum bending speed
90 °/s
65 °/s
60 seconds
45/sec
Bending accuracy
± 0.1 °
± 0.1 °
± 0.1 °
± 0.1 °
Motor Power
4 kW
5.5 kW
7.5 kW
7.5 kW





Model
89CNC-2A-1S
114CNC-2A-1S
129CNC-2A-1S
168CNC-2A-1S
Maximum Capacity
￣ 89 (3.5”) × 8 mm
114 (4.5”) × 8 mm
129(5”)×12mm
168(6.5”)×16mm
Curvature
0-190°
0-190°
0-190°
0-190°
Bending radius
30-450mm(for machines)
40-550mm(for machines)
50-650mm(for machines)
60-850mm(for machines)
Mini bend radius
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
R ≥ 1.5D (for pipes)
Spindle length
3800mm(customizable)
4500mm(customizable)
4600mm(customizable)
6500mm(customizable)
Maximum bending speed
40/sec
25/sec
20 seconds
10 seconds
Bending accuracy
± 0.1 °
± 0.1 °
± 0.1 °
± 0.1 °
Motor Power
11 kW
15 kW
18.5 kW
22 kW
