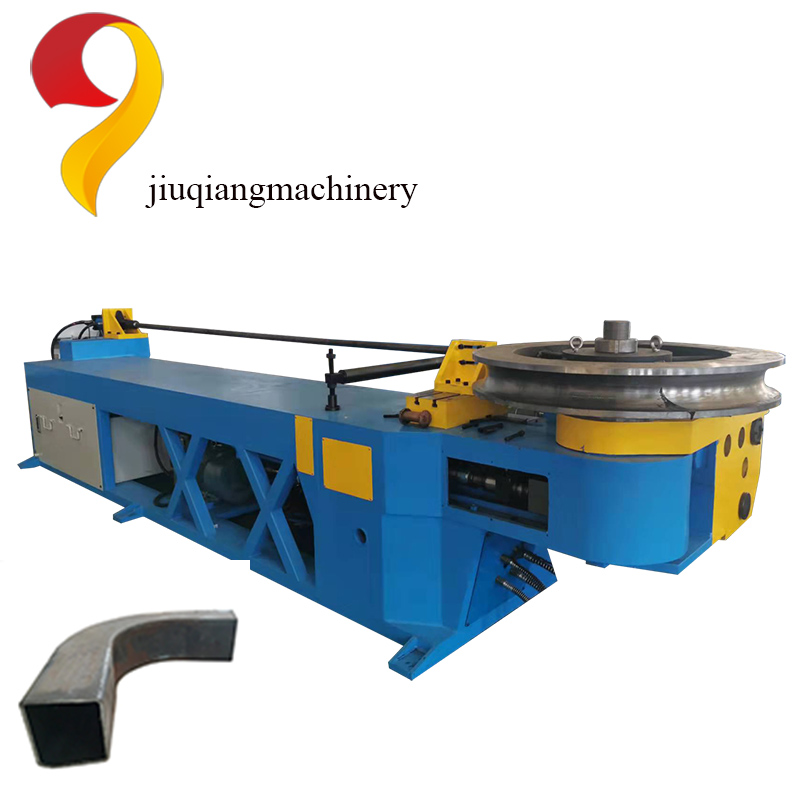

Hot selling 130NC pipe induction elbow bender
Applications and features
application
1. Motorcycle manufacturing, bicycle manufacturing (handlebars, frames), fitness equipment
2. Steel furniture, air conditioning, refrigeration, and sanitary industries.
3. Auto parts (brake pipes, bumpers, mufflers, exhaust pipes, car seats)
4. Shipbuilding and boiler industries.
5. Suitable for pipes of any shape and any metal material. Such as: iron, stainless steel, carbon steel, aluminum, copper and other metal pipes. Pipes in round, square, rectangular, W-shaped, special cross-section and other shapes.
Main features:
The body is welded; the mechanical parts are assembled; the hydraulic system and electronic control system are imported.
1. Microcomputer control, automatic bending
2. Safety: Emergency stop button on the bending arm
3. Conversation operation, easy to learn and understand
4. High bending accuracy up to ± 0.15 °
5. 1000 sets of bending information storage, each angle works to form a coherent whole.
6. The mandrel automatically enters and exits, saving a lot of time
7. Auxiliary push mold can be installed, low core return function, can bend thin tubes
8, Special accessories: special mold, anti-wrinkle plate, auxiliary push installation, etc.
9. CE,certificates.
Hot selling 130NC pipe induction elbow bender
project | name | data |
1 | Maximum bending capacity | Φ130mm × 12mm |
2 | Maximum bending radius | R530 mm |
Can be made according to customer requirements | ||
3 | Minimum bending radius | R90 mm |
4 | Standard spindle length | 4500 mm |
Can be made according to customer requirements | ||
5 | Maximum curvature | 190 degrees |
6 | control Panel | PLC |
8 | Bending unit | 16 items |
9 | Bending accuracy | ± 0.1 mm |
10 | Oil motor power | 22 kW |
11 | greatest pressure | 16 MPa |
12 | Hydraulic control system | Magnetic exchange valve |
Japanese brand | ||
13 | tank | 450L |
14 | Machine weight | 8800 kg |
15 | Machine size | 6500 × 1600 × 1600 mm |
Partner with Zhangjiagang Jiuqiang Machinery Co., Ltd. for reliable, efficient, and high-quality pipe bending machines that will elevate your manufacturing processes and drive success in your business operations. jiuqiang machinery offer severa options in pipe bending machine.
