JQ130CNC automatic pipe bending machine manufacturer

JQ130CNC automatic pipe bending machine manufacturer

Enhance precision and efficiency with the 130CNC automatic pipe bending machine. Featuring automatic error detection for real-time fault display on the screen, operators can swiftly address obstacles. Material input is seamless through the touch screen interface. Each bending step allows for resetting compensation data, speed adjustments, and gap release for varying materials. Program up to 5 action sequences and 10 running speeds per bend, streamlining operations and reducing pipeline interference. Servo motor-driven bending control and corner feeding ensure high accuracy and efficiency in bending angles. Ideal for intricate pipe configurations and high precision requirements.

Availability:



Inquire

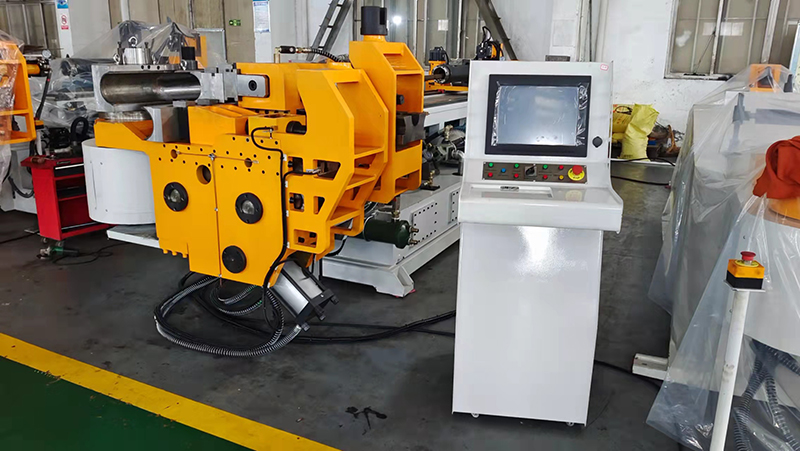

JQ130CNC pipe bending machine

Introduction

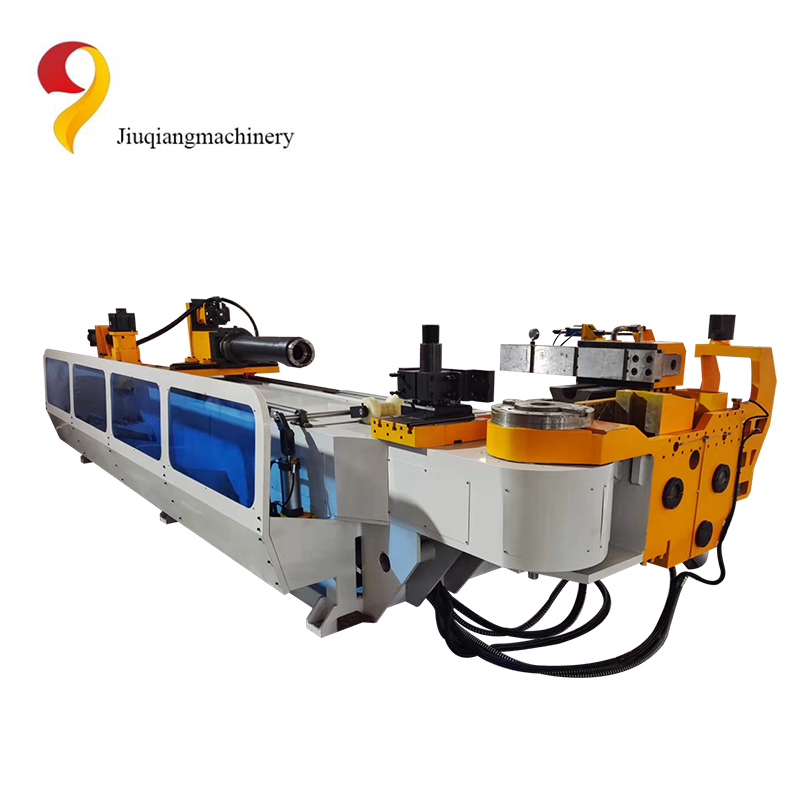

JQ130CNC pipe bending machine

JQ130CNC pipe bending machine utilizes servo drive technology, with the electronic control system integrating a touch screen and PLC. Equipped with essential components such as tube clamps, guide dies, mandrels, anti-wrinkle devices, auxiliary push mechanisms, tube bending tools, and tube rotation features. Operating under cooling conditions, this advanced European tube bending machine excels in bending metal tubes of diverse sizes and shapes, both standard and irregular. The bending angle precision is maintained through a high-precision imported servo motor, ensuring exceptional accuracy in operations

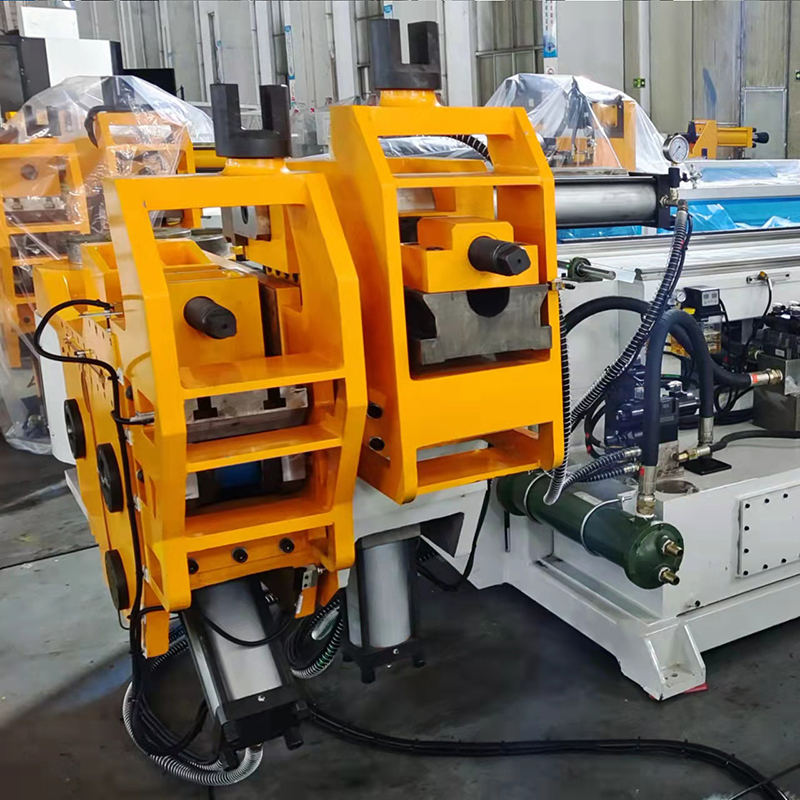

JQ130CNC pipe bending machine mold

JQ130CNC Pipe bending machine molds, also known as dies or tooling, are crucial components that determine the shape and accuracy of the bends made by the machine. The choice of mold material is essential for ensuring durability, precision, and efficiency in the bending process
What kind of pipe material can JQ130CNC pipe bending machine be bent?

The JQ130CNC pipe bending machine can bend a variety of materials including carbon steel, stainless steel, aluminum, and copper pipes, tubes, and profiles. It is suitable for bending applications such as boiling bank tubes, condensate tubes, wheelbarrow tubes, exhaust pipes, car tubes, solid bars, and garage door profiles, offering versatility and efficiency in various industries.

Why Choose Us

We prioritize quality in every aspect of our manufacturing process, ensuring that our pipe bending machines meet the highest standards of performance, durability, and precision. We offer customizable solutions to meet your specific requirements, providing tailored pipe bending machines that align with your unique needs and applications. With 20 years of experience in the industry, we have the knowledge and expertise to deliver cutting-edge pipe bending machines that cater to diverse industrial sectors.

ABOUT US

SERVICE

Intruduction of Jiuqiang machinery

Jiuqiang Machiner is one of the leading pipe bening machine manufactuerer in China, we offer several options in pipe bending machine.

Main machine of jiuqiang machinery
△ NC pipe bending machine △CNC pipe bending machine △left and right pipe bending machine
△double head pipe bending machine △metal disk saw machine △pipe end forming machine △pipe chamfering machine △steel pipe production line △customization automatic pipe bending production line

Model	89CNC-2A-1S	114CNC-2A-1S	130CNC-2A-1S	168CNC-2A-1S
Maximum Capacity	￣ 89 (3.5”) × 8 mm	114 (4.5”) × 8 mm	130(5”)×12mm	168(6.5”)×16mm
Curvature	0-190°	0-190°	0-190°	0-190°
Bending radius	30-450mm(for machines)	40-550mm(for machines)	50-650mm(for machines)	60-850mm(for machines)
Mini bend radius	R ≥ 1.5D (for pipes)	R ≥ 1.5D (for pipes)	R ≥ 1.5D (for pipes)	R ≥ 1.5D (for pipes)
Spindle length	3800mm(customizable)	4500mm(customizable)	4600mm(customizable)	6500mm(customizable)
Maximum bending speed	40/sec	25/sec	20 seconds	10 seconds
Bending accuracy	± 0.1 °	± 0.1 °	± 0.1 °	± 0.1 °
Motor Power	11 kW	15 kW	18.5 kW	22 kW
