How to choose the appropriate metal pipe expanding machine for specific applications?

Views: 0 Author: Site Editor Publish Time: 2025-09-28 Origin: Site

Choosing the appropriate metal pipe expanding machine requires a systematic evaluation of your specific application requirements, including pipe characteristics, production demands, process constraints, and practical operational factors. Below is a step-by-step guide to help you make an informed decision, organized by the most critical selection criteria.

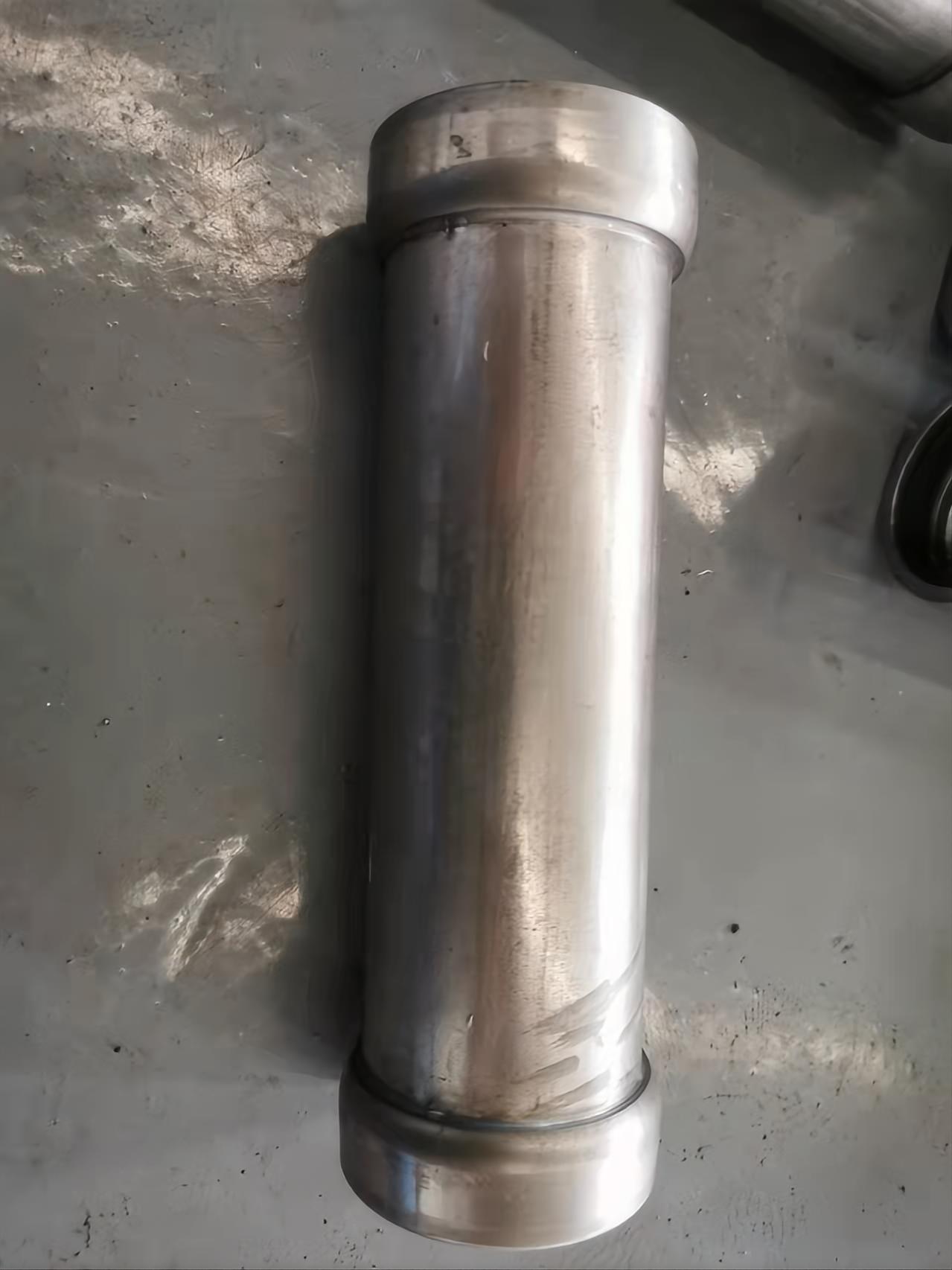

TM130CNC pipe end forming machine for expanding mold or reducing sample (1)(1)

1. First: Define Core Pipe Parameters (Non-Negotiable Foundations)

The physical and material properties of the pipe you’re processing are the starting point—they directly dictate the machine’s minimum capabilities.

1.1 Pipe Material

Different metals have varying ductility, tensile strength, and response to forming (cold vs. hot), which determines the machine’s power, tooling, and forming method.

Pipe Material	Key Considerations	Recommended Machine Features
Low-plasticity metals	High-carbon steel, alloy steel, titanium (prone to cracking if cold-formed).	Hot expanding capability; hydraulic drive (high force); heat-resistant tooling (e.g., cemented carbide).
High-plasticity metals	Low-carbon steel, copper, aluminum, brass (easy to stretch at room temperature).	Cold expanding capability; hydraulic/pneumatic/electric drive (depending on size); standard tooling.
Corrosive/hard metals	Stainless steel (work-hardens easily), nickel alloys.	Wear-resistant tooling (coated or carbide); precise force control (to avoid over-forming).

1.2 Pipe Dimensions

Diameter Range: Machines are designed for specific size windows (e.g., 2mm–20mm for medical tubes, 500mm–2000mm for oil pipelines). Choose a machine with a diameter capacity that matches your pipe (avoid over-sizing, as it wastes energy and reduces precision).
Wall Thickness: Thick-walled pipes (≥5mm) require high clamping force and hydraulic drive to avoid deformation unevenness. Thin-walled pipes (≤1mm) need gentle, uniform pressure (e.g., pneumatic or bladder-driven machines) to prevent wrinkling or bursting.

1.3 Expansion Requirements

Expansion Ratio: The percentage increase in diameter (e.g., 10% for fitting connections, 50%+ for custom profiles). High expansion ratios (≥30%) often require hot forming or multi-stage cold forming (to avoid metal failure).
Precision Tolerance: Critical applications (e.g., aerospace, medical) demand tolerances of ±0.01mm–±0.05mm, requiring machines with PLC control and real-time sensors (e.g., laser diameter measurement). General industrial use (e.g., plumbing) may accept ±0.1mm–±0.5mm.
End Profile: Do you need a straight expansion, stepped expansion, or flared end? Specialized tooling (e.g., tapered mandrels for flaring, segmented dies for stepped profiles) is required.

2. Second: Match to Production Requirements

Your production volume, speed, and labor resources will determine the machine’s automation level and efficiency.

2.1 Production Volume

Volume Type	Description	Recommended Machine Type
Low Volume	<100 pieces/day (e.g., repairs, prototypes).	Manual or semi-automatic machines (portable, low initial cost, no need for automation).
Medium Volume	100–1000 pieces/day (e.g., small workshops).	Semi-automatic machines (automatic forming + manual loading/unloading; balances cost and speed).
High Volume	>1000 pieces/day (e.g., automotive mass production).	Fully automatic machines (integrated feeding/clamping/forming/unloading; PLC control for 24/7 operation).

2.2 Production Speed

Manual machines: ~10–30 pieces/hour (limited by human operation).
Semi-automatic machines: ~50–200 pieces/hour (faster forming, but manual handling is a bottleneck).
Fully automatic machines: ~200–1000+ pieces/hour (continuous processing, ideal for tight deadlines).

2.3 Consistency Needs

For applications requiring uniform quality (e.g., automotive brake tubes, medical devices), avoid manual machines—opt for semi/automatic models with PLC control (ensures consistent pressure, speed, and expansion depth across batches).

3. Third: Select the Right Forming Mechanism & Drive System

The machine’s forming mechanism (how it expands the pipe) and drive system (what powers it) must align with your pipe and production needs.

3.1 Forming Mechanism (Key for Quality & Compatibility)

Mechanism Type	Best For	Pros	Cons
Mandrel Expanding	Thin-walled pipes, precision profiles (e.g., HVAC coils, medical tubes).	High precision; smooth inner surface finish.	Limited to small-to-medium diameters; tooling changes for different sizes.
Roller Expanding	Thick-walled/large-diameter pipes (e.g., oil pipelines, structural steel).	Handles heavy-duty materials; uniform expansion for large pipes.	Slower than mandrel; requires more floor space.
Bladder Expanding	Delicate/thin-walled pipes (e.g., catheters, small copper tubes).	Gentle, even pressure; avoids wrinkling/bursting.	Lower force (not for thick pipes); bladder replacement over time.

3.2 Drive System (Key for Force & Control)

Drive Type	Output Force	Best For	Pros	Cons
Hydraulic	High (10–1000+ tons)	Thick-walled/high-strength pipes (alloy steel, titanium).	Large force; precise pressure control.	Higher energy use; requires oil maintenance.
Pneumatic	Low-Medium	Small-diameter/thin-walled pipes (aluminum, medical stainless steel).	Fast response; low maintenance; clean operation.	Limited force (not for heavy pipes); dependent on compressed air.
Electric	Medium-High	Precision applications (aerospace, electronics).	Energy-efficient; quiet; precise speed/position control.	Higher initial cost; less force than hydraulic for ultra-thick pipes.

4. Fourth: Evaluate Practical Operational Factors

Beyond technical specs, consider factors that impact long-term usability and cost.

4.1 Budget & Total Cost of Ownership (TCO)

Initial Investment: Manual machines ($5k–$20k) < semi-automatic ($20k–$100k) < fully automatic ($100k–$500k+).
TCO: Include ongoing costs (energy, tooling replacement, maintenance). For example:

Hydraulic machines have higher oil/filter costs but lower tooling wear.
Pneumatic machines have low maintenance but high compressed air costs.

4.2 Floor Space & Portability

Portable/manual machines: Fit on workbenches (ideal for on-site repairs or small workshops).
Fully automatic/roller machines: Require large floor space (3m–10m+ length) and fixed installation.

4.3 Tooling Flexibility

If you process multiple pipe sizes/profiles, choose a machine with quick-change tooling (e.g., modular mandrels, adjustable rollers). This reduces downtime vs. machines with fixed tooling.

4.4 After-Sales Support

Prioritize suppliers that offer:

Spare parts availability (e.g., tooling, hydraulic components).
Technical training (for operators/maintenance staff).
Warranty (1–3 years is standard for industrial machines).

5. Example Decision-Making Scenario

Let’s apply the above criteria to a real-world case:

Application: Mass-producing 10mm-diameter, 1mm-thick aluminum brake tubes for cars (expansion ratio: 15%, tolerance: ±0.03mm, volume: 2000 pieces/day).

Selection Process:

Pipe Parameters: Aluminum (high plasticity) → cold forming; small diameter/thin wall → mandrel mechanism.
Production Needs: High volume → fully automatic; tight tolerance → PLC control + sensors.
Drive System: Medium force needed → electric or pneumatic (electric preferred for precision).
Practical Factors: Quick-change tooling (for future size adjustments); compact footprint (factory floor constraints).

Final Choice: Fully automatic electric mandrel expanding machine with PLC control and laser diameter inspection.

Summary

To choose the right metal pipe expanding machine, follow this priority order:

Lock in pipe parameters (material, size, expansion needs).
Align with production volume/speed/consistency.
Select forming mechanism + drive system matching the above.
Validate with budget, space, and support needs.

By focusing on these criteria, you’ll ensure the machine delivers reliable performance, cost efficiency, and compatibility with your specific application.
