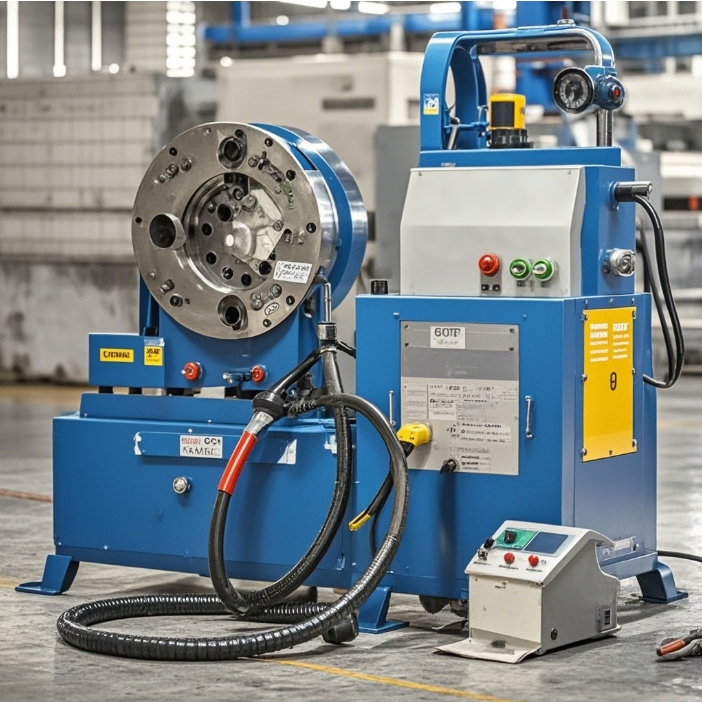

The operation of a hydraulic pipe crimping machine involves several key steps for the operator to control it effectively:
Inspect the Machine: Before starting, the operator should thoroughly inspect the hydraulic pipe crimping machine. Check for any visible signs of damage, such as cracks in the frame, leaks in the hydraulic hoses, or wear on the crimping die set. Ensure that all components are in proper working condition.
Select the Appropriate Die Set: Based on the type and diameter of the pipe and fitting to be crimped, the operator must choose the correct die set. Different pipes and fittings require specific die sets that match their dimensions precisely. This ensures a proper and secure crimp.
Prepare the Pipe and Fitting: Cut the pipe to the required length using an appropriate pipe cutter. Make sure the cut end is smooth and free of burrs. Insert the fitting onto the pipe end, ensuring it is properly aligned and seated.
Position the Pipe and Fitting in the Die: Place the assembled pipe and fitting into the crimping die of the machine. Align them carefully so that the area to be crimped is centered within the die. This step is crucial for achieving an even and accurate crimp.
Adjust Hydraulic Pressure (if necessary): Some hydraulic pipe crimping machines have adjustable pressure settings. The operator needs to set the hydraulic pressure according to the characteristics of the pipe material, its thickness, and the specific requirements of the crimping job. For example, thicker or harder pipes may require higher pressure settings. Refer to the machine's manual or manufacturer's guidelines for the appropriate pressure values.
Activate the Hydraulic Pump: Once the pipe and fitting are properly positioned and the pressure (if needed) is set, the operator activates the hydraulic pump. This can usually be done by pressing a start button or operating a control lever on the machine. The pump then begins to generate hydraulic pressure, which is directed to the crimping die.
Monitor the Crimping Process: As the hydraulic pressure is applied and the crimping takes place, the operator should closely monitor the process. Watch for any signs of abnormal behavior, such as excessive noise, vibration, or a sudden drop in pressure. These could indicate a problem with the machine or an improper crimping operation.
Ensure Complete Crimping: The operator should wait until the crimping process is fully completed. This is typically indicated by the machine reaching a preset pressure level or by a visual indication on the machine's control panel. Once the crimp is complete, the hydraulic pressure is released automatically (on most machines), and the crimped pipe and fitting can be removed from the die.
Inspect the Crimped Connection: After removing the crimped pipe and fitting from the die, the operator should carefully inspect the connection. Check for any signs of a weak or leaky crimp, such as gaps between the pipe and fitting, deformation of the pipe or fitting that looks incorrect, or any visible cracks in the crimped area. If any issues are detected, the crimp may need to be redone.
Clean and Store the Machine: Clean any debris or residue from the machine, especially around the crimping die area. Wipe down the hydraulic hoses and other components. Store the machine in a clean and dry location, and make sure it is properly shut down and disconnected from any power sources (if applicable).
