How To Control The Tube Bending Parts Quality?

How to Control the Tube Bending Parts Quality

Controlling the quality of tube bending parts is crucial for ensuring the reliability and safety of electrical installations. Here are some key steps and practices to ensure high-quality tube bending parts:

1. Material Selection

· Quality of Raw Material: Use high-quality, certified materials suitable for the intended application (e.g., EMT, rigid conduit).

· Material Specifications: Ensure materials meet the required specifications for tensile strength, ductility, and corrosion resistance.

2. Precision in Bending Process

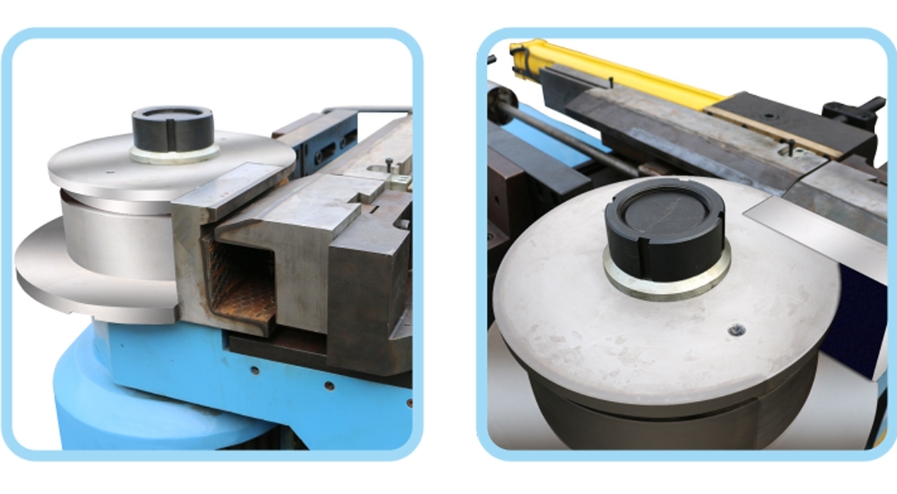

· Proper Tooling: Use the correct bending tools and equipment for the specific material and diameter of the tubes.

· Calibration of Equipment: Regularly calibrate bending machines to maintain accuracy and consistency in bends.

· Mandrel Use: For tight bends, use a mandrel to prevent wrinkling and maintain the internal diameter of the tube.

3. Operator Training

· Skilled Personnel: Ensure operators are well-trained and experienced in the tube bending process.

· Ongoing Training: Provide continuous training to keep operators updated on best practices and new techniques.

4. Quality Control Procedures

· Inspection Before Bending: Inspect tubes for any defects or inconsistencies before the bending process.

· Monitoring During Bending: Continuously monitor the bending process to detect any deviations or issues immediately.

· Post-Bend Inspection: Perform thorough inspections of bent tubes for defects such as cracks, flattening, wrinkling, or surface damage.

5. Dimensional Accuracy

· Measure Bend Angles: Use precise measuring tools to ensure bend angles are accurate and within specified tolerances.

· Check Radii and Lengths: Verify that the bend radii and lengths of straight sections meet design specifications.

6. Non-Destructive Testing (NDT)

· Visual Inspection: Conduct visual inspections to identify surface defects.

· Ultrasonic Testing: Use ultrasonic testing to detect internal defects that are not visible externally.

· Radiographic Testing: Employ radiographic testing for a detailed internal inspection, especially for critical applications.

7. Consistency and Repeatability

· Standard Operating Procedures (SOPs): Implement SOPs for the tube bending process to ensure consistency.

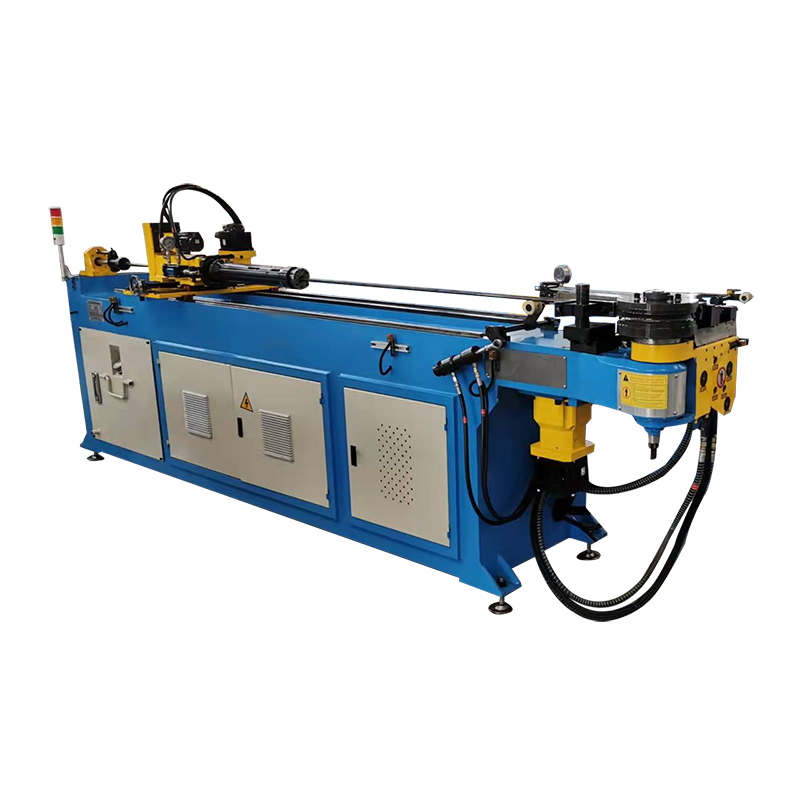

· Automation: Utilize automated bending machines for high-volume production to achieve consistent results.

8. Documentation and Traceability

· Record Keeping: Maintain detailed records of materials, equipment settings, and inspection results for traceability.

· Batch Tracking: Implement batch tracking to trace any defects back to their source, whether in materials or processes.

9. Continuous Improvement

· Feedback Loop: Establish a feedback loop from inspection results to continuously improve processes and address any recurring issues.

· Root Cause Analysis: Perform root cause analysis on defects to prevent recurrence and improve overall quality.

10. Compliance with Standards

· Adherence to Codes: Ensure all processes comply with relevant standards and codes (e.g., NEC, ISO).

· Third-Party Certification: Obtain third-party certifications for quality assurance (e.g., ISO 9001).

Summary

Controlling the quality of tube bending parts involves meticulous attention to detail at every stage of the process, from material selection to final inspection. By implementing robust quality control procedures, maintaining precise equipment calibration, and ensuring skilled operator involvement, you can achieve high-quality, reliable tube bending parts for electrical tubing applications.
