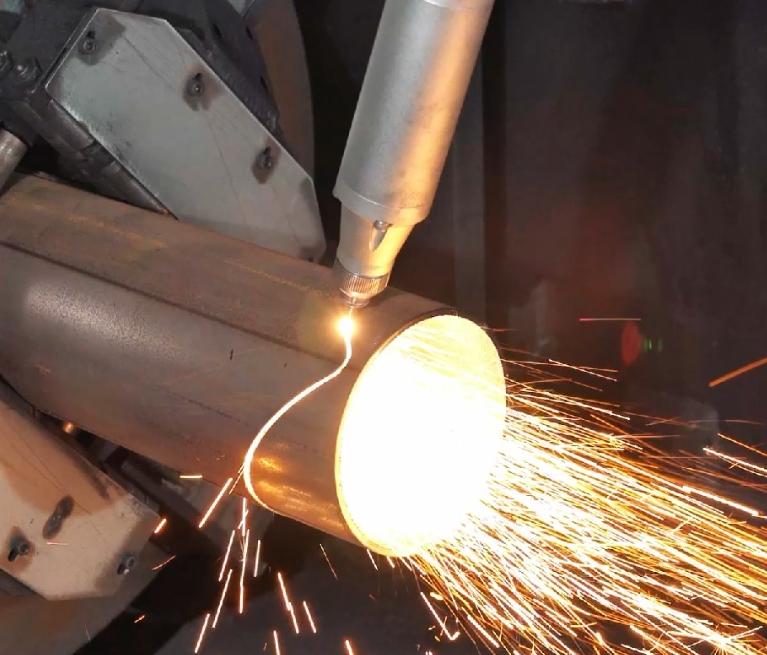

Tube laser cutting machines use a high - power laser beam to irradiate the surface of the tube. The laser energy is absorbed by the material, which causes the material to be heated to a melting or vaporization point. Then, a jet of high - pressure gas is used to blow away the molten or vaporized material, leaving a cut edge. The tube is usually held in a chuck or fixture and rotated while the laser head moves along the length of the tube to make the cut.
High Precision: It can achieve very high cutting accuracy, with tolerance levels as low as ±0.1 mm or even better, depending on the machine and the material. This makes it suitable for applications where precise dimensions are crucial.
Good Surface Quality: The cutting surface is smooth, with little to no burrs or roughness. This reduces the need for additional post - processing operations in many cases, saving time and cost.
Versatility: It can cut a variety of tube materials, including stainless steel, carbon steel, aluminum, and copper. It can also handle different tube shapes and sizes, from small - diameter thin - walled tubes to large - diameter thick - walled tubes.
High Efficiency: Laser cutting is a fast process, especially for complex shapes and patterns. It can significantly reduce production time compared to traditional cutting methods such as sawing or milling.
Automation: Tube laser cutting machines can be easily integrated into automated production lines. They can be programmed to cut multiple tubes with different specifications in a single run, increasing productivity and reducing labor costs.
Automotive Industry: Used for cutting exhaust pipes, drive shafts, and structural tubes. The high precision and surface quality ensure proper fit and performance of these components.
Aerospace Industry: In the manufacturing of aircraft structural components, engine components, and hydraulic tubing. The ability to cut complex shapes and the high quality of the cut are essential for meeting the strict requirements of the aerospace industry.
Construction Industry: Employed in the production of metal frames, handrails, and decorative tubes. The versatility of tube laser cutting allows for the creation of customized designs to meet architectural and design needs.
Furniture Industry: Used to cut tubes for chair frames, table legs, and other furniture components. The precise cutting helps in achieving a perfect fit and finish, enhancing the overall quality of the furniture.
Electronics Industry: For cutting tubes used in electronic device enclosures and heat sinks. The high - precision cutting ensures proper assembly and heat dissipation.

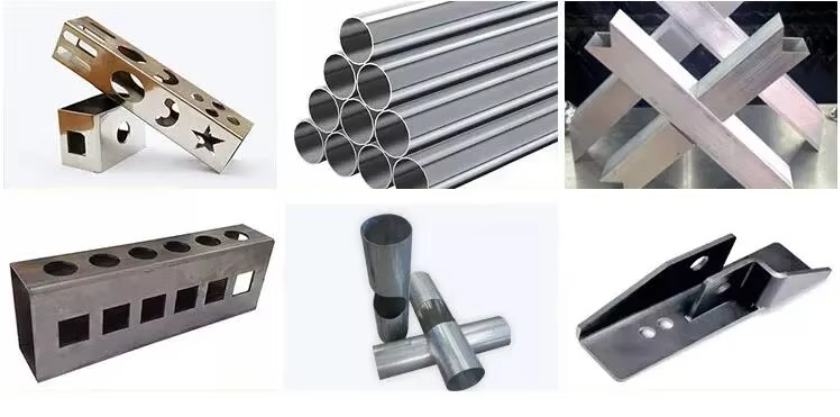

tube laser cutting final samples:
