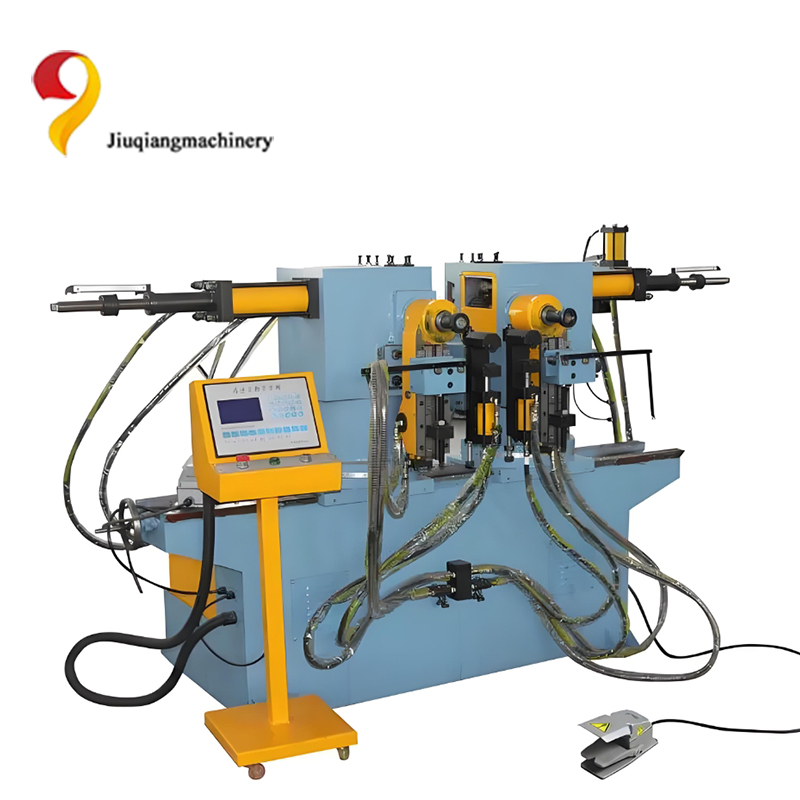

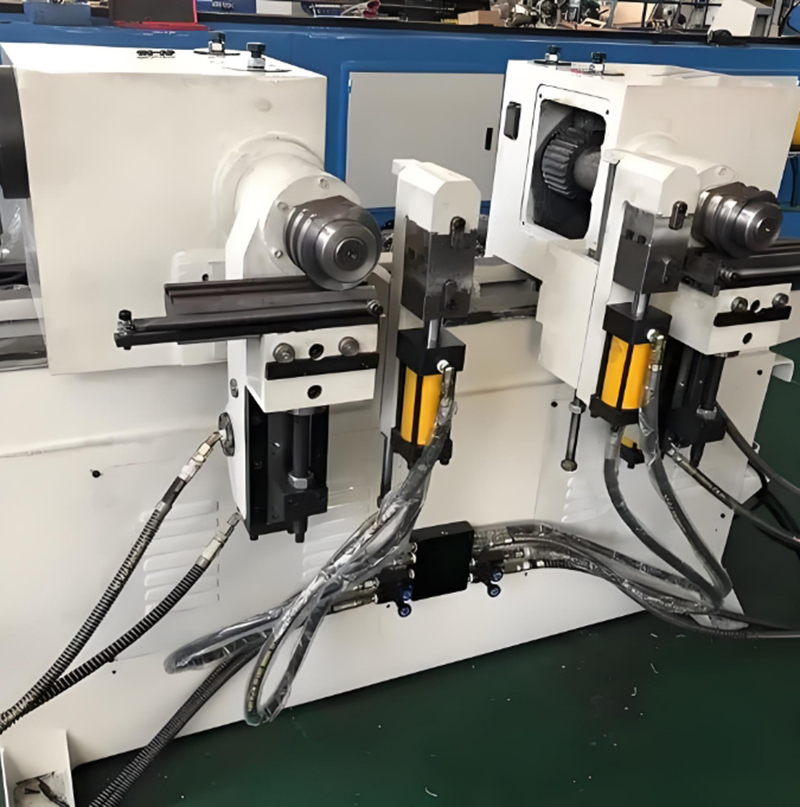

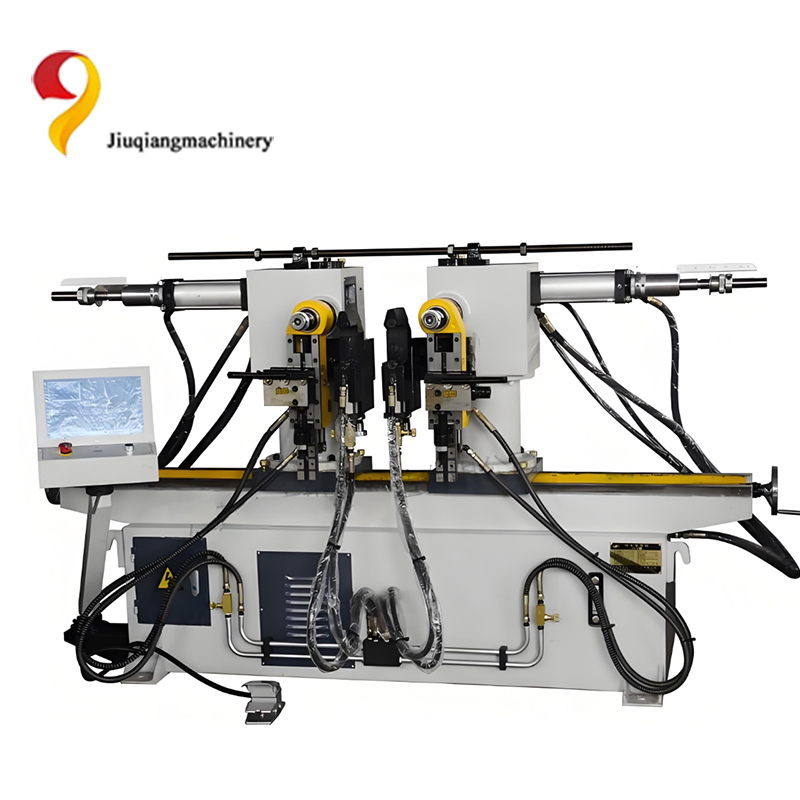

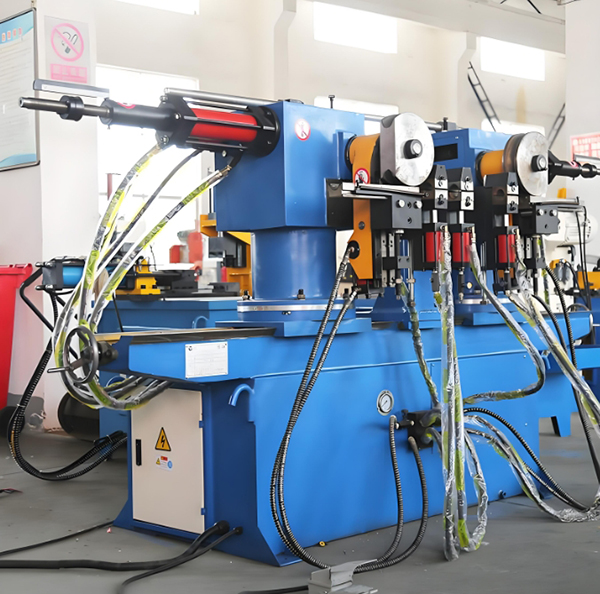

Optimized Version: The double-end pipe bending machine, equipped with a user-friendly microcomputer control system, offers stable performance and ease of operation. This machine synchronously forms precise angles at both ends of the workpiece, ensuring accurate bevel angles in the double-end bending process. Key features include:
Simultaneous bending of both ends
Capability to bend two, three, or four tubes at once
Mitsubishi PLC control system for efficient operation
Taiwan Weinview colorful touch screen for enhanced user interface
Japanese encoder guaranteeing high accuracy in bending angles
Individual valves to control bending speed at each head.
Product Specifications
| No | Model | SW38NC | SW50NC | |
| 1 | Maximum bending capacity | 38x 2 mm | 50x 2 mm | |
| 2 | Bending radius range | 38-200 mm | 45-300 mm | |
| 3 | Double bending center range | 170-1450 mm | 190-1650 mm | |
| 4 | Maximum bending angle | 185° | 185° | |
| 5 | Bending speed | 50° | 50° | |
| 6 | Motor Power | 5.5 | 7.5 | |
| 7 | greatest pressure | 14 | 14 | |
| 8 | weight | 1500 | 2100 | |
| 9 | Machine size | 2700x900x1350 mm | 3300x1300x1350 | |
