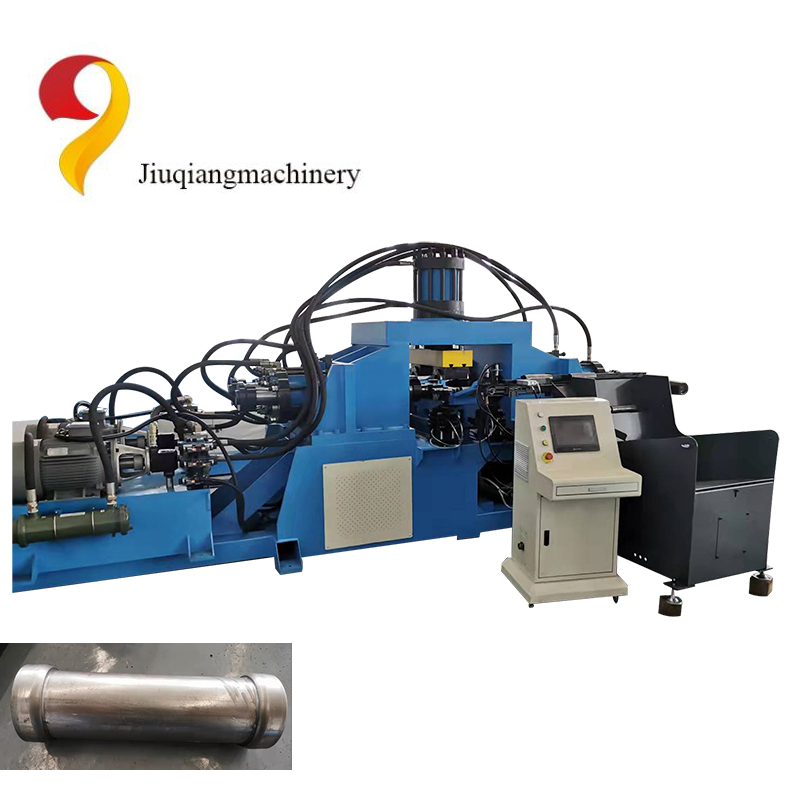

Factory Final Price CNC Hydraulic Steel Pipe End Forming Machine for Tube End Reduction Tube End Reducer Specifications:
Maximum Pipe Diameter Reduction at Pipe End: 6-150 mm
Maximum Pipe Thickness Reduction at Pipe End: 1-10 mm
Suitable Pipe End Reduction Materials: Alloy, Copper, Stainless Steel, Plastic, Aluminum, Carbon Steel, Stainless Steel
This CNC hydraulic machine is specifically designed for precise and efficient pipe end reduction processes, offering versatility in handling various materials and dimensions. Ideal for industrial applications requiring accurate tube end forming, the machine ensures high-quality results and reliable performance.
Key Specifications:
1. User-friendly CNC control unit for easy operation and maintenance.
2.Versatile machine capable of forming various metal tubes in different materials and shapes.
3.Safety features include an emergency stop device with manual and automatic operation modes.
4.Features a retraction stroke of 100 mm and can accommodate workpieces up to 450 mm in length.
5.Capable of forming shapes such as convex, concave, cross-section, flat, square, V-shaped, open elbow, and flat bend. Mold design can be customized based on workpiece and customer requirements.

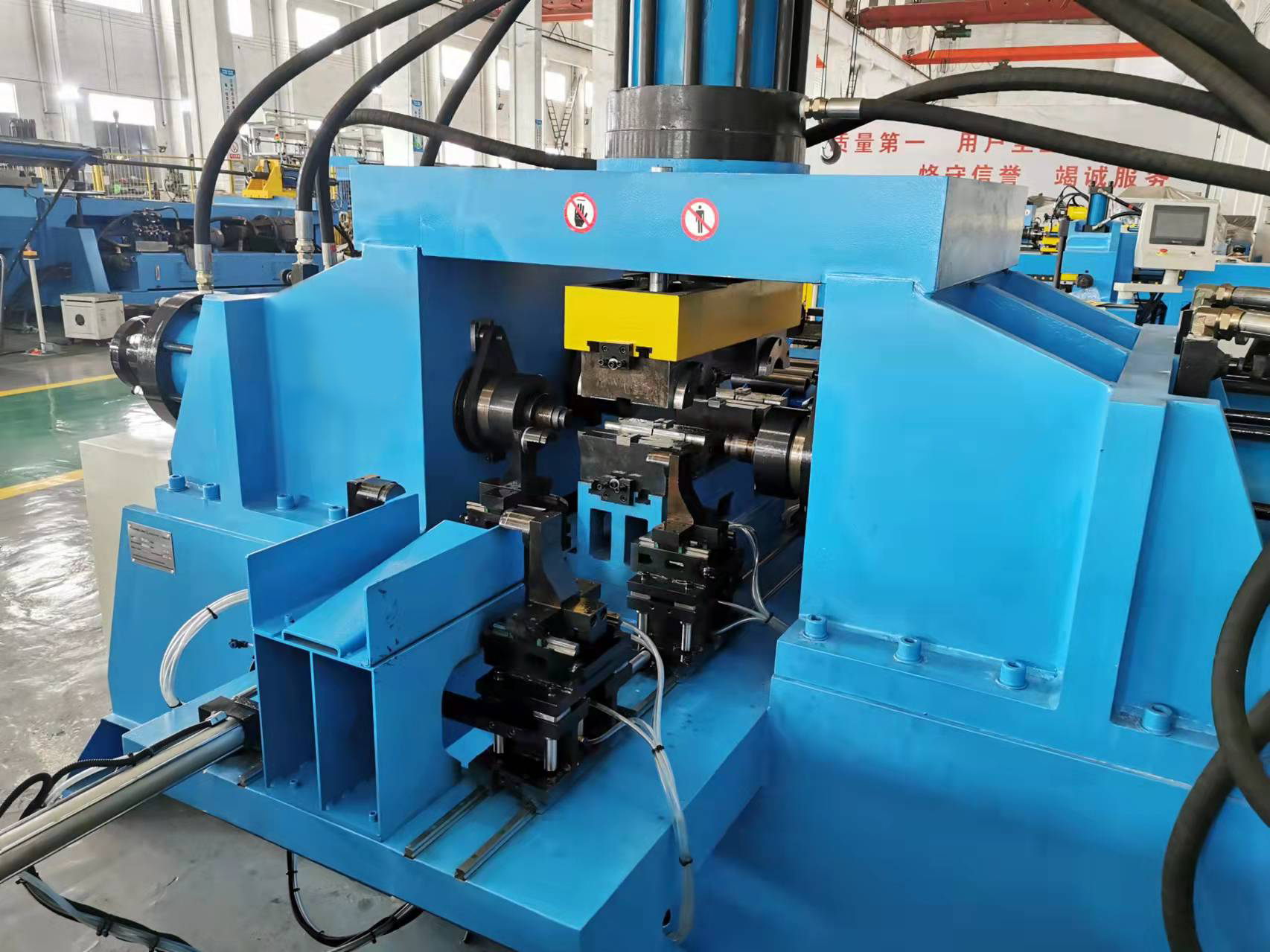

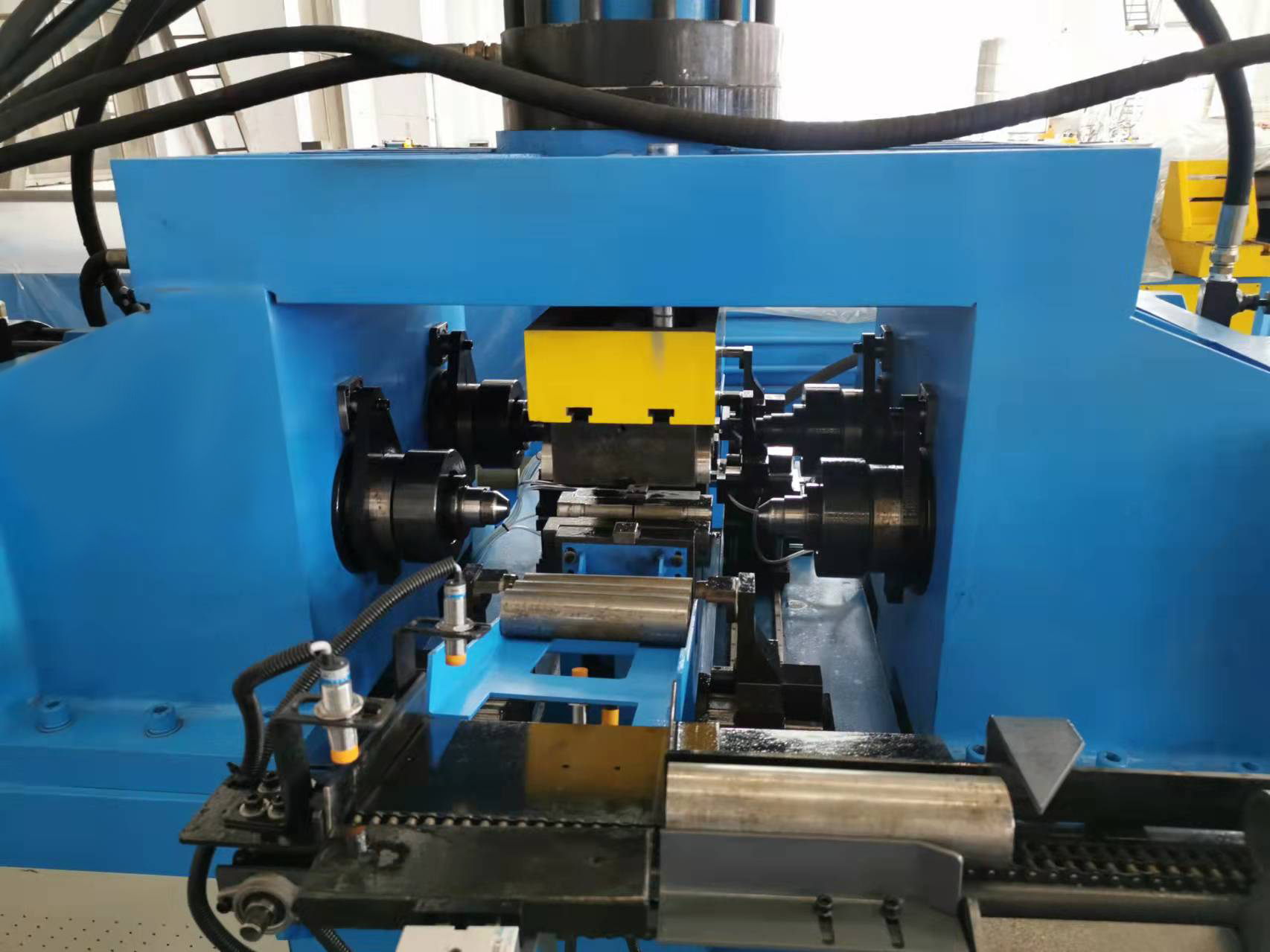

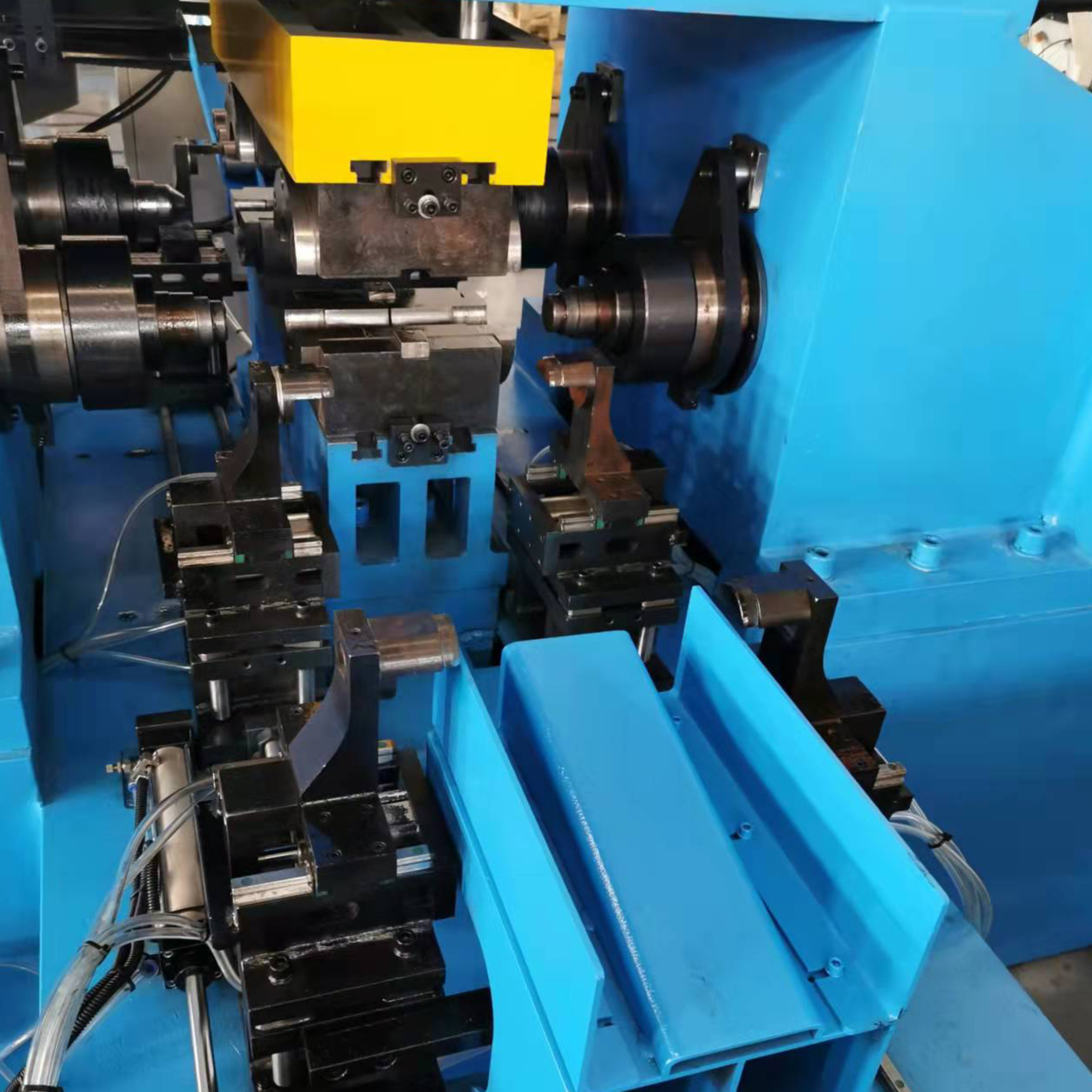

TM130CNC tube pipe end forming machine show

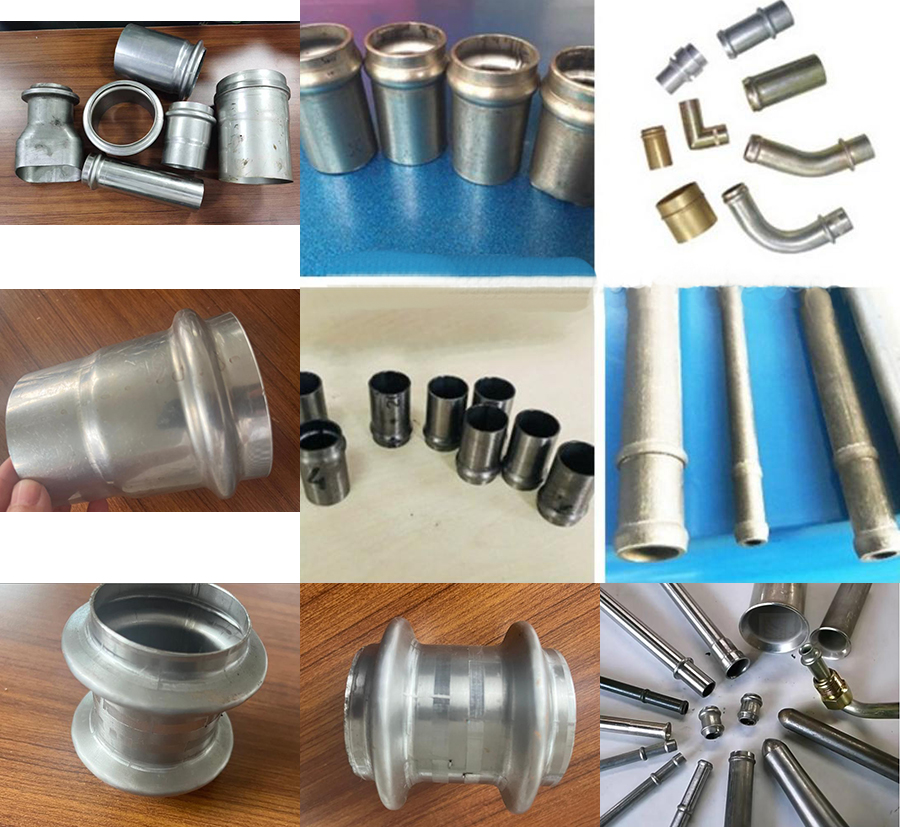

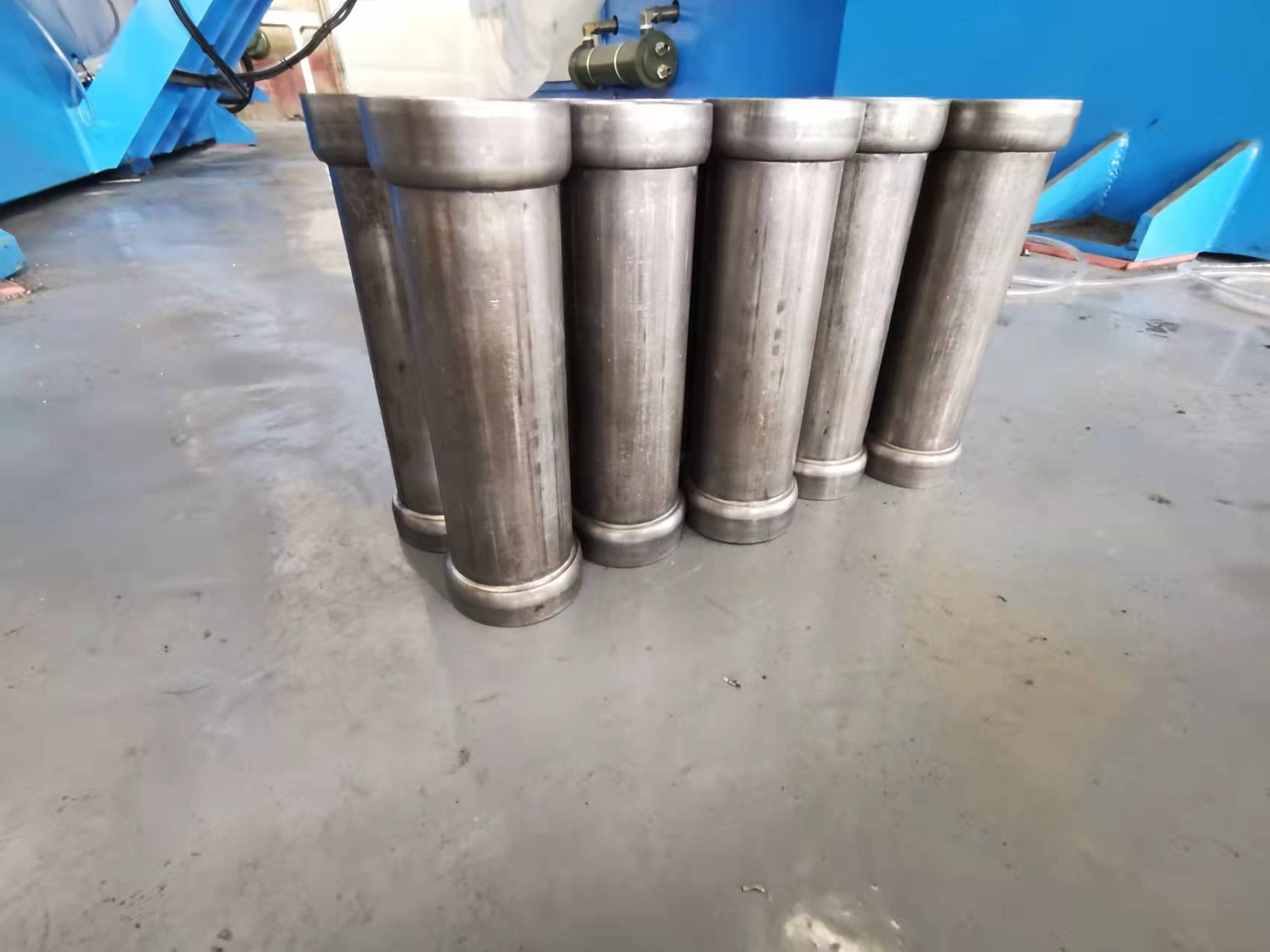

TM130CNC pipe end forming machine final sample
Technical Parameters
type | SG-40 | SG-60 | SG-80 | SG-100 |
Maximum tube (mm) | & phi;40*2.0 | & phi;60*2.0 | & phi;80*3.0 | & phi;100*3.5 |
Maximum processing length (mm) | 110 | 130 | 150 | 180 |
Oil pressure(Mpa) | 14 | 14 | 14 | 14 |
Speed of work | 100 mm in3-4/sec | 100 mm in3-4/sec | 100 mm in3-4/sec | 100 mm in3-4/sec |
Size (cm) | 180*45*120 | 200*50*130 | 290*70*140 | 300*75*150 |
Weight (kg) | 600 | 950 | 1600 | 1800 |
Remark | 1.The maximum processing length can be determined according to customer requirements. | |||
Warranty Information:
1. Warranty Coverage: jiuqiang machinery offer a one-year guarantee on the quality of the machine. During this period, if any spare parts of the machine are damaged, we will provide the components to customers at no cost. Shipping will be arranged through DHL or T/T.
2.Installation and Training: jiuqiang machinery factory offers complimentary services for installation, commissioning, and training by sending engineers to the customer's facility. Customers are responsible for providing double air tickets, as well as food and accommodation for our engineers. Alternatively, customers can opt to send their engineers to our factory for hands-on training and maintenance sessions.
3.Customer Support: jiuqiang machinery is committed to providing ongoing support to customers. For any operational assistance needed, customers can reach out to us via Skype, email, or phone at any time. jiuqiang offer round-the-clock online service for your convenience. Additionally, we create instructional videos to guide customers through the operation steps effectively.
Frequently Asked Questions:
1. Manufacturer or Trading Company?
We are a manufacturer specializing in metal tube processing machinery. Established in 2005, our factory is based in China.
2.How to Choose a Pipe Bending Machine?
To select the right machine, provide us with:
Outer diameter range
Wall thickness range
Bend radius (center line of radius)
Pipe material
Providing product drawings is beneficial.
3.Control System of the Machine?
Standard control: Mitsubishi PLC (Windows system)
Special control: IPC control.
4.Difference Between CNC and CNC Machine Tools?
CNC: Standard hydraulic pipe bender with manual feeding and rotation, and hydraulic automatic bending.
CNC Machine: Fully automatic tube bender with servo motors for feeding and rotating, hydraulic or servo motors for bending, and multiple tool stacks for various bending radio.
