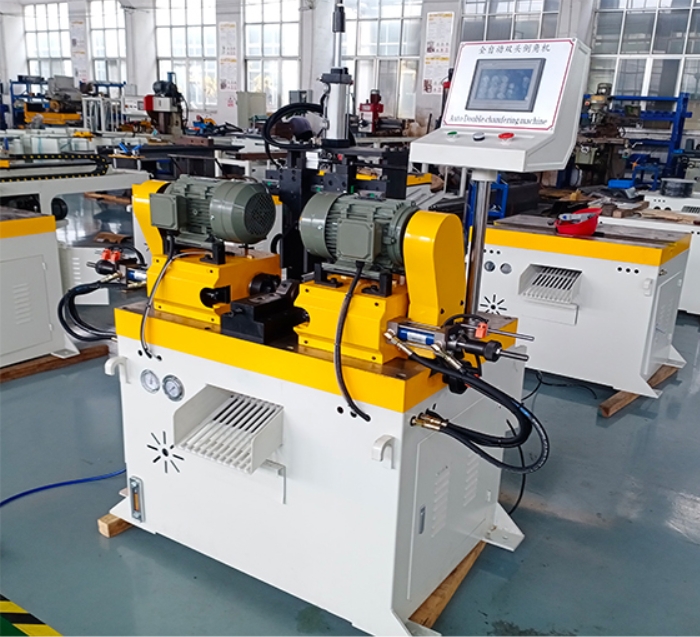

The round bar chamfering machine is equipped with a power source, usually an electric motor. When the motor is powered on, it starts to operate, converting electrical energy into mechanical energy to provide power support for the entire processing process.
The power of the motor is transmitted to various working components through a transmission device. Common transmission methods include belt drive, gear drive, chain drive, etc. For example, a belt is used to transfer the rotation of the motor to the tool spindle, ensuring that the tool can obtain a sufficient rotational speed for efficient cutting.
The power is transmitted to the tool part, driving the tool to rotate at a high speed. The tool is a key component for achieving chamfering. It is generally made of wear-resistant materials such as carbide to ensure good wear resistance and cutting performance during high-speed cutting.
The rotating tool comes into contact with the end of the round bar. The sharp edge of the tool is used to cut the round bar material. Under the action of the cutting force, the material at the end of the round bar is gradually removed, thus forming the required chamfer shape.
Before processing, the round bar needs to be accurately positioned on the workbench. The round bar chamfering machine is equipped with special positioning devices, such as V-blocks and fixtures. These devices can be adjusted according to the diameter and shape of the round bar to ensure that the round bar remains in a stable position during processing, avoiding shaking or offset, and thus guaranteeing the accuracy of the chamfer.
After positioning, the round bar moves towards the rotating tool through the feeding mechanism. The feeding mechanism can control the feeding speed and distance of the round bar manually or automatically. Manual feeding is usually suitable for small-batch and simple processing tasks. Operators can control the movement of the round bar through devices such as handles according to experience and actual conditions. Automatic feeding relies on components such as motors, lead screws, and guide rails to achieve precise feeding movements and is suitable for high-volume and high-precision processing requirements. The automatic feeding system can accurately control the movement of the round bar according to preset parameters, such as feeding speed and feed amount, ensuring that the chamfer size and shape are consistent for each processing.
The round bar chamfering machine can control chamfer parameters, such as chamfer angle and chamfer depth, through various methods. For the control of the chamfer angle, it is usually achieved by adjusting the installation angle of the tool or changing the relative position between the round bar and the tool. For example, on some chamfering machines, by rotating the tool holder or adjusting the tilt angle of the workbench, the tool and the round bar can form a specific angle, thus machining chamfers with different angles.
The chamfer depth is mainly adjusted by controlling the feed amount of the round bar. In the automatic feeding system, the feed amount of the round bar can be precisely controlled by setting the moving distance of the lead screw or the number of rotations of the motor, thereby achieving accurate control of the chamfer depth. In addition, some advanced round bar chamfering machines are equipped with a numerical control system. Operators can input various processing parameters through programming to achieve automated and high-precision chamfering.
During the cutting process, a large amount of metal chips are generated. The round bar chamfering machine is usually equipped with a chip removal device, such as a chip chute and a chip conveyor belt. These devices can timely discharge the chips from the processing area to avoid chip accumulation, which may affect the processing accuracy and tool life.
At the same time, in order to reduce the cutting temperature, reduce tool wear, and improve the processing quality, the chamfering machine is also equipped with a cooling system. The cooling system generally uses coolant to cool the tool and the round bar. The coolant can be sprayed onto the contact area of the tool and the round bar through a nozzle to take away the heat generated during the cutting process, keeping the tool and the round bar within an appropriate temperature range and ensuring the smooth progress of the processing.
