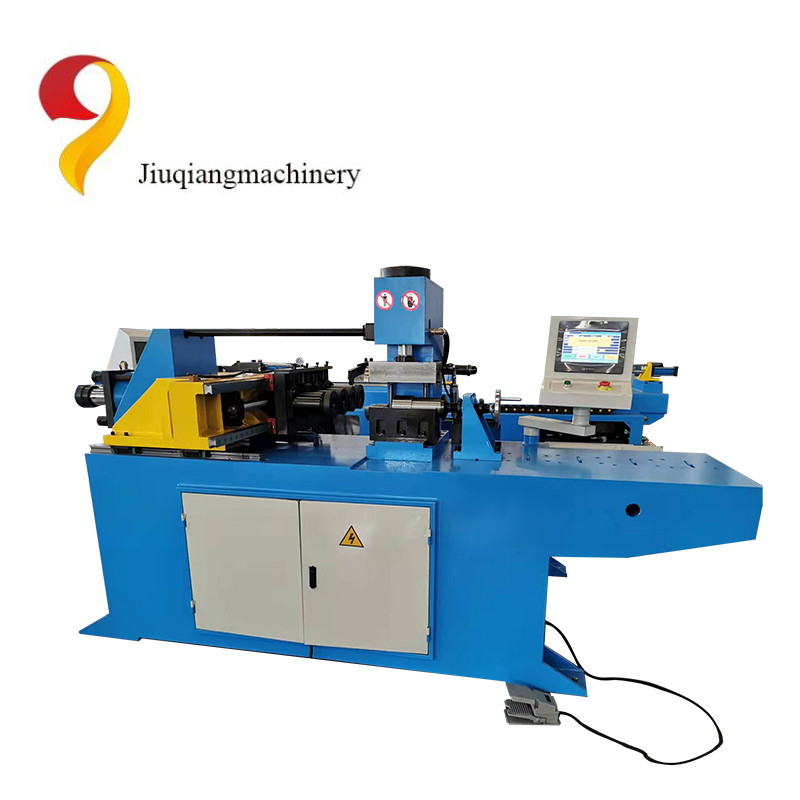

A metal pipe expanding machine

Views: 0 Author: Site Editor Publish Time: 2025-09-28 Origin: Site

A metal pipe expanding machine is a specialized industrial device designed to enlarge the inner or outer diameter of metal pipe/tube ends (or specific sections along the pipe) through cold or hot forming processes. This controlled expansion modifies the pipe’s geometry to meet precise dimensional requirements, typically for enabling secure connections (e.g., fitting one pipe over another), enhancing structural compatibility, or creating custom profiles—all while preserving the metal’s mechanical integrity. It is a key subset of pipe end-forming equipment, widely used in industries where standardized, leak-proof, or interlocking pipe assemblies are critical.

Core Working Principle

The machine operates by applying controlled force to the inner or outer surface of the pipe, causing the metal to plastically deform (stretch) and expand without cracking. The exact mechanism depends on the machine type, but the core steps are consistent:

Clamping: The pipe is securely fixed in a fixture to prevent movement during expansion (misalignment would cause uneven diameter growth or pipe damage).
Tool Engagement: A forming tool (e.g., mandrel, roller, or hydraulic bladder) is inserted into the pipe end or positioned around its outer surface.
Force Application: Hydraulic, pneumatic, or electric power drives the tool to exert radial pressure on the pipe wall. For cold forming (most common), the metal stretches at room temperature; hot forming may be used for thick-walled or high-strength metals (e.g., alloy steel) to reduce deformation resistance.
Dimensional Control: The tool stops expanding once the pipe reaches the preset target diameter (monitored via mechanical stops, sensors, or PLC systems).
Tool Retraction & Unloading: The tool is withdrawn, and the expanded pipe is removed for subsequent processing or assembly.

Key Types of Pipe Expanding Machines

Machines are classified by their forming mechanism, automation level, and pipe size, each suited to specific applications:

Machine Type	Working Mechanism	Typical Applications
Mandrel Expanding Machine	Uses a tapered or multi-segmented mandrel (inserted into the pipe). As the mandrel expands (via hydraulic/pneumatic force), it pushes the pipe wall outward.	Precision expansion for thin-walled tubes (e.g., automotive fuel lines, HVAC coils).
Roller Expanding Machine	Employs 2–4 rotating rollers (positioned inside/outside the pipe). The rollers move radially outward while spinning, gradually stretching the pipe.	Thick-walled pipes (e.g., oil/gas pipelines, structural steel tubes) and large-diameter pipes.
Hydraulic Bladder Machine	Uses an inflatable rubber bladder (inserted into the pipe). The bladder is filled with high-pressure hydraulic fluid, expanding uniformly to stretch the pipe.	Seamless, uniform expansion for delicate or irregularly shaped pipes (e.g., medical stainless steel tubes).
Manual/Portable Machine	Hand-operated (via levers or cranks) for small-scale, on-site work. Limited to low force and small pipes.	Plumbing repairs, on-site pipe fitting adjustments, low-volume workshops.
Fully Automatic Machine	Integrates automatic feeding, clamping, expanding, and unloading. Controlled by a PLC for consistent high-volume production.	Mass manufacturing (e.g., automotive brake tubes, appliance water pipes).

Key Components

A standard metal pipe expanding machine relies on these critical parts to ensure accuracy and reliability:

Frame: A rigid, vibration-resistant structure to support high-pressure forming forces.
Clamping Unit: Jaws or fixtures that grip the pipe tightly (prevents slippage during expansion, which causes uneven diameters).
Forming Tools: Mandrels, rollers, or bladders—customized by pipe material (e.g., steel vs. aluminum) and target diameter.
Actuation System: Hydraulic (most common for high force), pneumatic (for low/medium force), or electric (for precision control) drives the tool expansion.
Control System: PLC (Programmable Logic Controller) or touchscreen interface to set parameters (target diameter, expansion speed, pressure). Advanced models include laser sensors for real-time diameter verification.
Feeding/Unloading System: (Semi/automatic machines) Conveyors or robotic arms to load raw pipes and unload finished parts, reducing manual labor.

Materials & Industries Served

Compatible Materials: Works with ductile metals (critical for plastic deformation), including:

Carbon steel, stainless steel (most common)
Aluminum, copper, brass
Alloy metals (e.g., titanium for aerospace, nickel alloys for oil/gas)

The machine’s tooling and force are adjusted based on the metal’s tensile strength and ductility (e.g., stainless steel requires more force than aluminum).

Key Industries:

Automotive: Expanding fuel lines, brake tubes, or exhaust pipes to fit connectors/fittings.
HVAC & Plumbing: Creating flared or stepped pipe ends for leak-proof connections (e.g., copper water pipes, HVAC ducting).
Oil & Gas: Expanding thick-walled steel pipes for pipeline joints or wellhead tubing.
Aerospace: Precision expansion of lightweight alloy tubes for hydraulic or fuel systems.
Medical: Uniform expansion of small-diameter stainless steel tubes for devices (e.g., endoscopes, catheters).
Construction: Expanding structural steel tubes for interlocking joints (e.g., scaffolding, building frames).

Advantages of Using a Pipe Expanding Machine

Precision & Consistency: Delivers uniform diameter expansion (tolerance as tight as ±0.01mm) across batches, eliminating manual errors.
Strength Preservation: Cold forming maintains the metal’s grain structure, resulting in stronger expanded ends than welded or cut alternatives.
Efficiency: Automates a labor-intensive manual process (e.g., hand-flaring), boosting production speed by 5–10x in high-volume settings.
Versatility: Accommodates different pipe sizes (from 2mm to 2000mm+ diameter) and materials with tooling swaps.
Cost Savings: Reduces material waste (no over-cutting) and labor costs, especially in mass production.

In short, a metal pipe expanding machine is essential for creating compatible, high-strength pipe ends—enabling reliable assembly in industries where pipe performance and connection integrity are non-negotiable.
