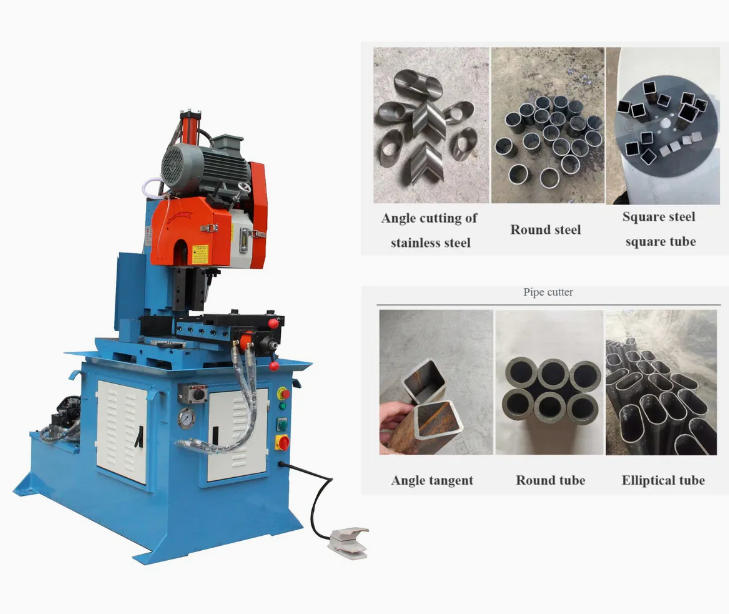

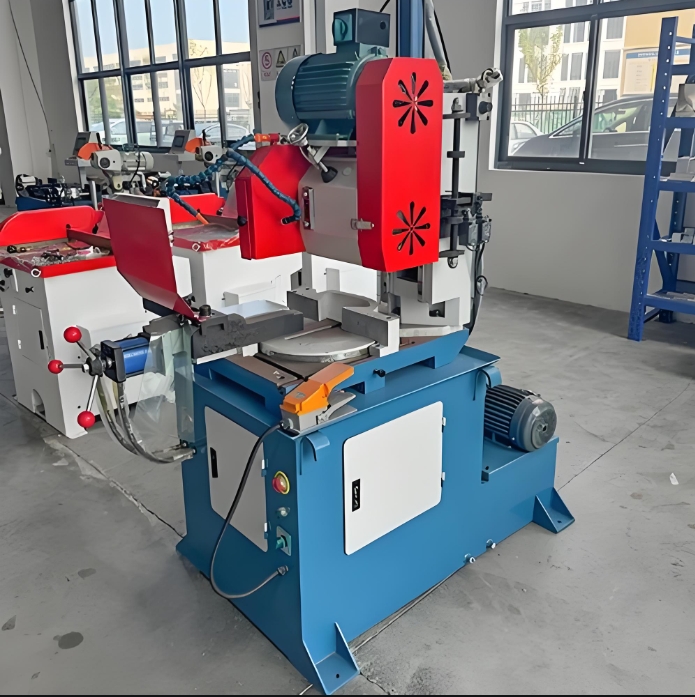

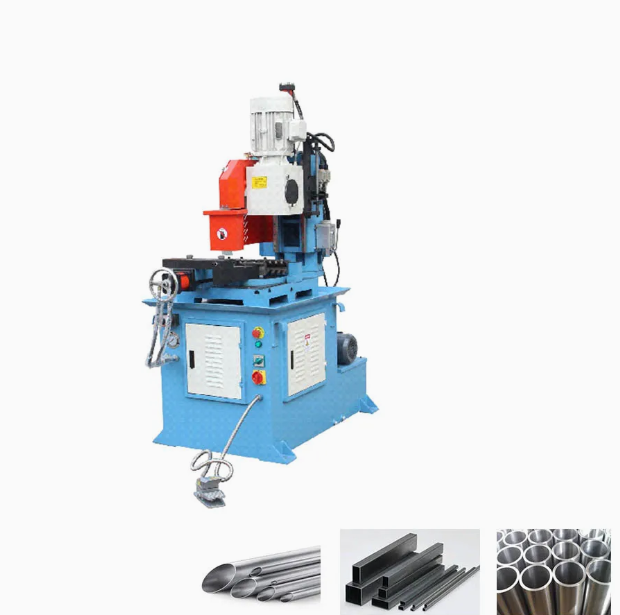

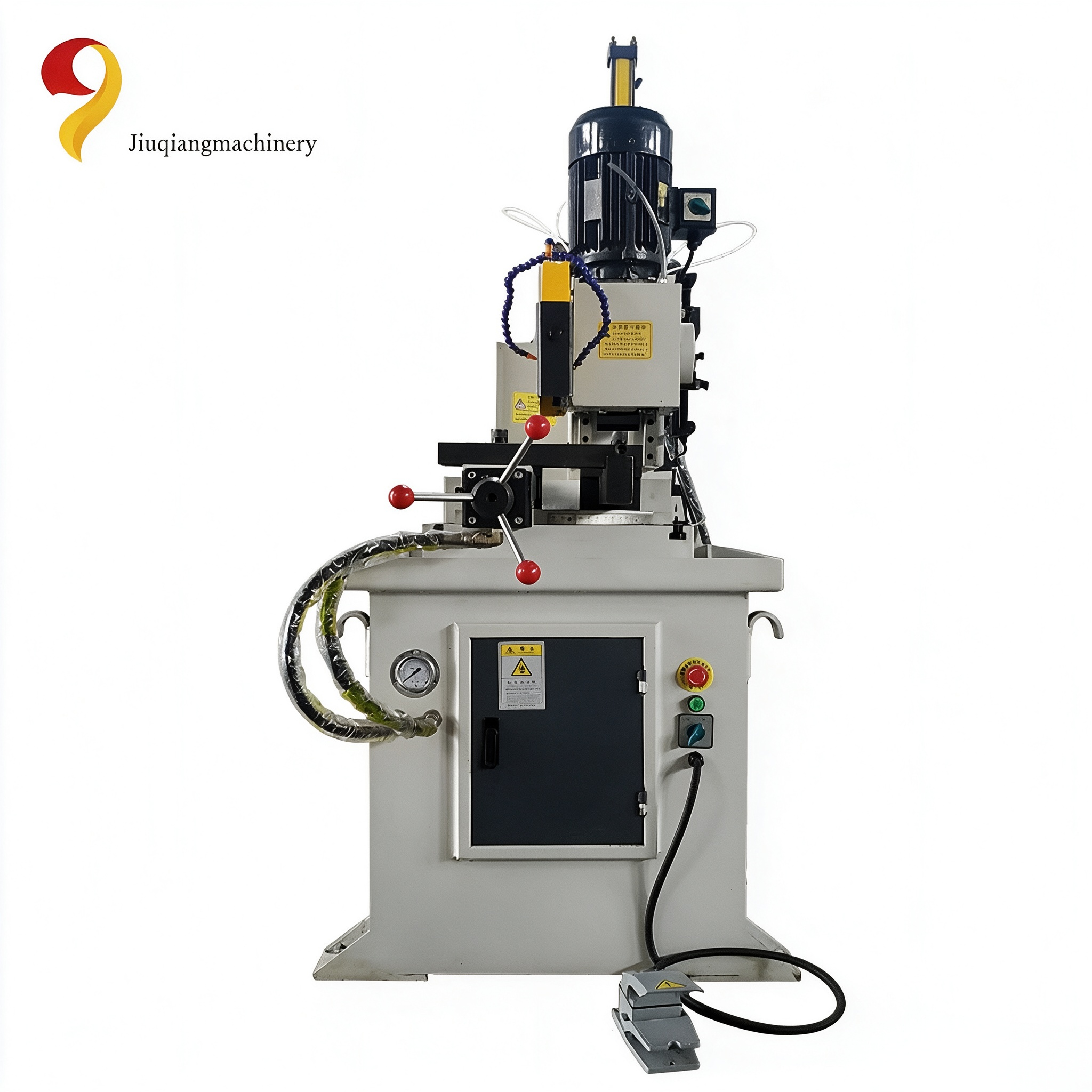

Brief Introduction on cold saw machine
Jiuqiang Hydraulic cold saw machine with function of hydraulic clamp,manual feeding and hydraulic cutting. Machine can be realized angle cutting
which greatly increase the cutting feasibility. Good mechanical system ensures high cutting quality without burrs on tube internal and external.
Water cooling and lubricate system prolongs the life of machine and saw blade. Each cold saw is covered by a one year parts warranty plus
lifetime technical support by Jiuqiang.We keep many tube cutting machine models in stock for quick shipments.
Features on cold saw machine
Manual feeding, hydraulic clamping and hydraulic cutting
Strengthened and high precision flexible cutting head (2 sides 45°): Able to adjust angle freely, High precision of angle, Easy and quick adjustment.
2 sides and 2 way clamping system: High precision cutting, reduce vibration and soundless while cutting.
Material Available: Steel&Stainless Steel
Cutting Shape Available: Round,Square,Rectangle and other profiles...
Available for several pieces cutting together for small pipe size.
Length stopper improve the accuracy of cutting length.
Good mechanical parts ensure machine runs in high stability.
CE, Certification
| Item | Name | Unit | Data | |
| 1 | Sawing Scale | mm | 90 degree | 45 degree |
| square tube | 150×150 | 100×100 | ||
| Round tube | Φ160 | Φ120 | ||
| Round bar | Φ70 | Φ50 | ||
| Square stick | 85 x 85 | 60 x 60 | ||
| Rectangular tube | 200 x 150 | 150 x 100 | ||
| 3. | Voltage | According to your requirements | ||
| 3 | Machine size | mm | 900 X 1200 X 2150mm | |
| 4 | Weight | kgs | 700 kgs | |
