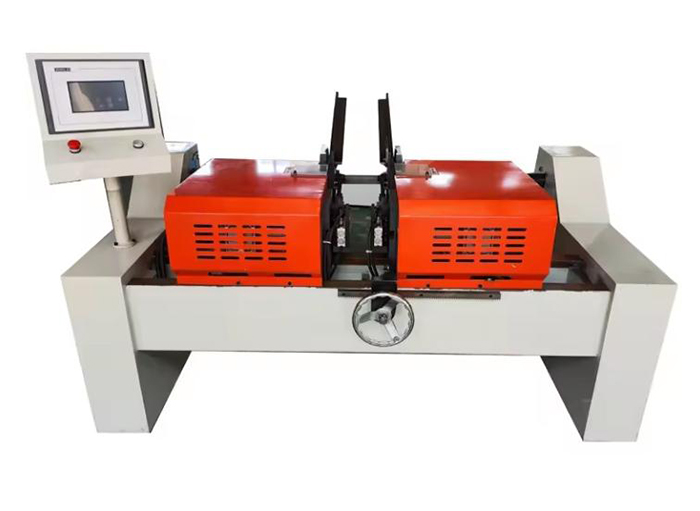

what is pipe chamfering machine？

I. Meaning The term "pipe end chamfering machine" means a machine tool specifically designed for chamfering the ends of pipes. It is a kind of mechanical equipment used to carry out chamfering processing on the ends of pipe materials.

 II. Working Principle Its working principle usually involves that a power device (such as an electric motor, etc.) drives cutting tools or abrasives to rotate. Then, the ends of the pipes are fixed in an appropriate position so that they come into contact with the rotating cutting tools or abrasives. Under precise control, the cutting tools or abrasives perform cutting, grinding and other operations on the pipe ends according to the set angles and dimensions, thus forming the required chamfer shapes, such as the commonly seen 45-degree chamfer, 30-degree chamfer, etc.

 III. Main Structures and Components

1. Power System: It generally includes an electric motor, which provides power for the entire chamfering processing process and drives the rotation of the cutting tools or abrasives. The power of the electric motor needs to be selected with an appropriate specification according to the material, size and processing requirements of the pipes to be processed, so as to ensure that there is sufficient power to complete the chamfering operation and the machine runs stably.

2. Cutting Tool or Abrasive System: For cutting-type pipe end chamfering machines, special cutting tools, such as carbide cutting tools, etc., will be equipped. The angle and shape of the cutting edge are designed to meet the requirements of different chamfer angles and sizes. The material of the cutting tools should be hard and wear-resistant enough to ensure the processing accuracy and the service life of the cutting tools. If it is a machine that performs chamfering by grinding, there will be abrasives such as grinding wheels. Similarly, grinding wheels with appropriate parameters such as particle size need to be selected according to the processing requirements to ensure that smooth and precise chamfers can be ground.

3. Clamping Device: It is used to fix the pipes so that they will not shake or displace during the chamfering process, thus ensuring the accuracy of chamfering. The clamping device needs to be able to adapt to pipes of different diameters and have a  good function of adjusting the clamping force, so that it can clamp the pipes tightly without causing damage to the surface of the pipes. 4. Feed System: It is responsible for controlling the relative movement between the cutting tools or abrasives and the ends of the pipes, realizing precise control of the feed amount. By adjusting the feed speed and feed amount, the depth and accuracy of the chamfer can be controlled.

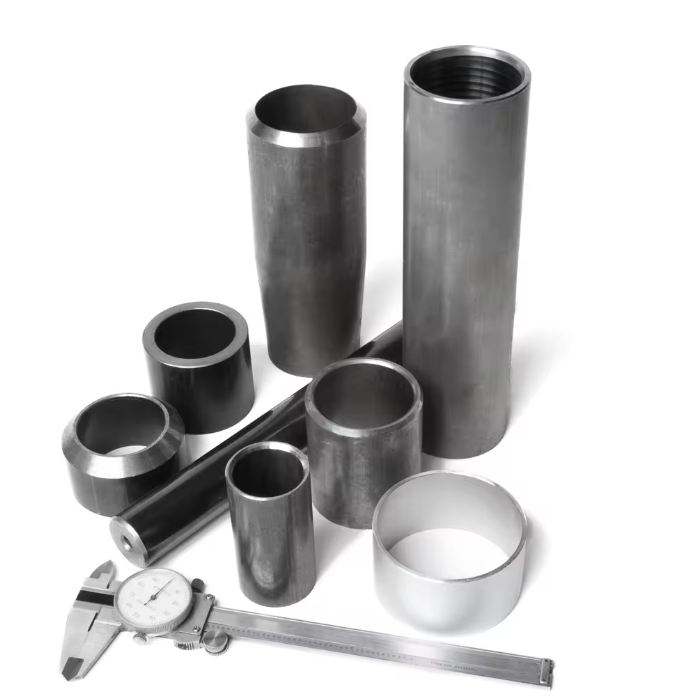

 IV. Application Fields

1. Construction Industry: In building construction, various types of pipes are widely used, such as water supply and drainage pipes, heating pipes, etc. The pipe end chamfering machine can perform chamfering treatment on these pipes, enabling better connection of the pipes when they are connected, for example, when using welding, threaded connection and other methods, the chamfered pipe ends can make the connection tighter and smoother, reducing the occurrence of leakage and other problems.

2. Machinery Manufacturing Industry: In the process of machinery manufacturing, various types of metal pipes are often used as structural components or fluid conveying parts, etc. The pipe end chamfering machine can perform standardized chamfering processing on these pipes, facilitating subsequent assembly processes, such as precisely fitting and installing the pipes with other components, improving the assembly quality of the entire mechanical product.

3. Automobile Manufacturing Industry: Some components of automobiles, such as fuel pipes, brake oil pipes, etc., also mostly use pipes. Chamfering the ends of these pipes can improve the connection reliability with related connectors (such as joints, pipe fittings, etc.), ensuring the safety performance and normal operation of the automobile.

 4. Furniture Manufacturing Industry: In the production of some metal furniture, pipes are used as structural parts such as frames. The pipe end chamfering machine can chamfer these pipes, making the appearance of the furniture more beautiful. At the same time, it can also be more convenient to connect with other components during the assembly process, improving the production quality and overall aesthetics of the furniture.

 V. Advantages

1. Improving Processing Accuracy: Compared with manual chamfering, the pipe end chamfering machine can achieve more accurate control of chamfer angles and sizes through precise mechanical control, ensuring that each pipe end chamfer meets the standards and design requirements, thus improving the quality and stability of pipe connection.

2. Improving Processing Efficiency: It can realize continuous and rapid chamfering operations and can complete the chamfering treatment of a large number of pipes in a short time, greatly saving processing time, especially in the case of large-scale production, the advantage is more obvious.

3. Reducing Labor Intensity: Manual chamfering requires workers to hold tools for a long time to operate, with a relatively high labor intensity. By using the pipe end chamfering machine, workers only need to place the pipes on the clamping device and start the machine to complete the chamfering, greatly reducing the labor intensity of the workers.

4. Ensuring Processing Consistency: Machine processing can ensure the consistency of each pipe end chamfer, whether it is in terms of chamfer angles, sizes or surface roughness, etc., all can remain relatively uniform, which is very important for projects that require a large number of pipes to be connected uniformly.

 VI. Consideration Factors for Machine Selection

1. Pipe Material: Different materials of pipes (such as steel pipes, copper pipes in metal pipes, plastic pipes in non-metal pipes, etc.) have different physical properties such as hardness and toughness, and it is necessary to select a pipe end chamfering machine that is suitable for them. For example, for high-hardness steel pipes, a chamfering machine with a larger power and more wear-resistant cutting tools may be required; for softer plastic pipes, a chamfering machine with sharper cutting tools and a flexible adjustment of the feed speed may be required to avoid damage to the surface of the pipes.

2. Pipe Size: The diameter and wall thickness and other size parameters of the pipes will affect the selection of the chamfering machine. Pipes with a larger diameter may require a clamping device with a larger clamping force and a more powerful power system to drive the cutting tools or abrasives; pipes with a thicker wall thickness may require the adjustment of the cutting or grinding depth of the cutting tools or abrasives, so it is necessary to select a suitable chamfering machine according to the specific pipe size.

3. Chamfer Requirements: If only simple chamfers are required, such as chamfers with a smaller angle and shallower depth, then a relatively simple and single-function pipe end chamfering machine can be selected. However, if high-precision, large-angle, deep-depth chamfers are required, or if multiple chamfer shapes need to be realized simultaneously (such as performing internal and external chamfers simultaneously, etc.), then a chamfering machine with higher precision control ability and more functions needs to be selected.

4. Production Scale: In the case of small-scale production, it may be sufficient to select a small, easy-to-operate and relatively inexpensive pipe end chamfering machine to meet the requirements. However, in the case of large-scale production, it is necessary to consider selecting a chamfering machine with high processing efficiency, high reliability and the ability to run continuously for a long time to ensure the production progress and product quality.
