Analysis of Mechanical Principles: When a tube is being bent on a tube bending machine, it is subjected to the bending force exerted by the tube bending die. According to the principles of mechanics of materials, during the bending process, the inner wall of the tube is in a compressed state, and the pressure it receives will increase as the bending angle increases. Without effective support measures, the inner wall of the tube will collapse and deform due to its inability to withstand this inward pressure, resulting in an irregular circular cross-section of the tube fitting, which will seriously affect the dimensional and shape accuracy of the tube fitting.
Practical Application Examples: Take the bending process of automobile exhaust pipes in the automobile manufacturing industry as an example. Automobile exhaust pipes are usually made of stainless steel or other metal materials, with specific requirements for diameter and wall thickness. During the bending of the exhaust pipe, without the support of the mandrel, since the exhaust pipe needs to be bent into a specific shape to fit the layout of the automobile chassis, the inner wall is prone to collapse under the action of the bending force, causing the inner diameter of the exhaust pipe to become smaller, which will affect the smoothness of the exhaust and, in turn, the performance of the engine. After the mandrel is inserted into the interior of the exhaust pipe, it can provide just the right amount of support force according to the inner diameter and bending requirements of the exhaust pipe, effectively preventing the collapse of the inner wall and ensuring that the exhaust pipe can maintain the circular cross-section required by the design after bending, meeting the normal operation requirements of the automobile exhaust system.

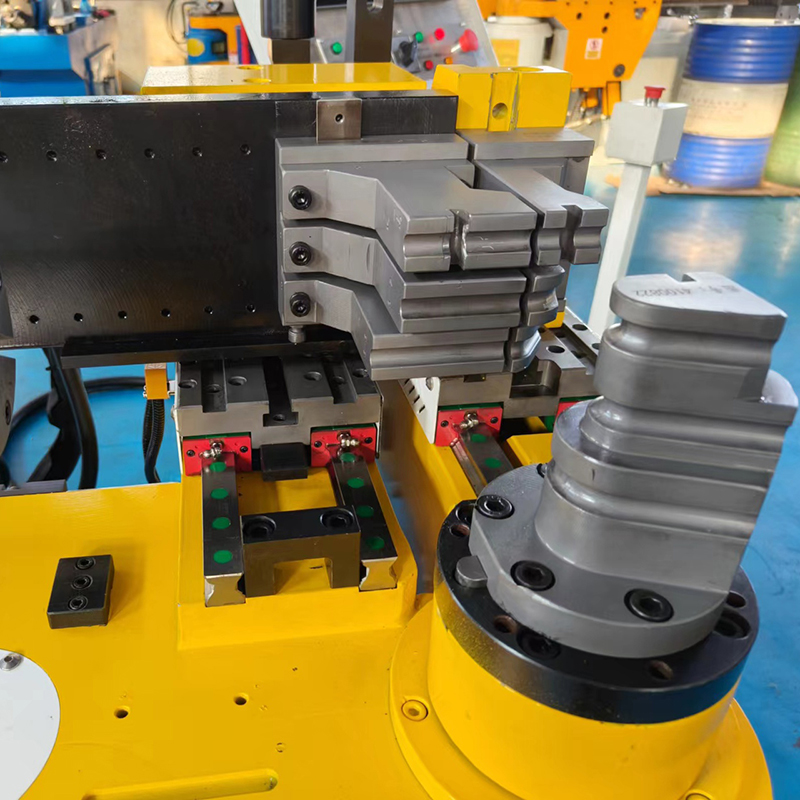

Design and Compatibility with Tubes: The design of the mandrel is carefully customized based on the specific specifications of the tube (such as diameter, wall thickness, etc.) as well as the required bending shape and angle. Its shape usually matches the internal shape of the tube, and it is reasonably set in the length direction according to the length of the bending section. For example, for a tube that requires multiple consecutive bends, the mandrel will be designed into a structure with multiple sections of different shapes and angles to accurately adapt to each bending process.
Precise Guiding Function: During the tube bending process, the mandrel moves synchronously inside the tube along with the movement of the tube bending die. It acts like an "internal guide rail", guiding the tube to be bent according to the preset bending path and angle. Take the bending of copper tubes in air conditioning systems as an example. Copper tubes in air conditioning refrigeration systems have specific layout requirements and need to be precisely bent into various shapes to connect different components. The mandrel can ensure that the copper tube is accurately bent along the designed path during the bending process, making each bending angle precisely reach the predetermined value, ensuring the accuracy and tightness of the copper tube connections in the air conditioning refrigeration system, and thus ensuring the normal operation of the entire refrigeration system.
Impact of Friction: During the tube bending process, there is inevitable friction between the tube and the tube bending die. On the one hand, this friction will hinder the smooth bending of the tube, causing the tube bending machine to consume more energy to overcome the friction and affecting the bending efficiency. On the other hand, a large amount of friction may cause scratches on the surface of the tube, especially for some tubes with high requirements for surface quality, such as stainless steel decorative tubes. Scratches will seriously affect the appearance quality of the tube fitting and reduce its market value.
Sharing Role of the Mandrel: After the mandrel is inserted into the interior of the tube, it changes the contact state between the tube and the die to some extent. It shares a part of the friction that the tube would originally have directly with the die, making the distribution of the friction on the tube more even. For example, when bending a large-diameter metal tube, without the mandrel, the tube has a large area of direct contact with the die, and the friction is concentrated in local areas, which is prone to cause surface wear of the tube. With the mandrel, the mandrel is in close contact with the inner wall of the tube, sharing part of the friction, making the friction on each part of the tube relatively balanced during the bending process, reducing the risk of excessive local wear of the tube, not only improving the surface quality of the tube fitting but also extending the service life of the tube bending die and reducing the frequency of die replacement due to tube wear.
Analysis of Wrinkling Phenomena and Causes: During the bending process of a tube, the outer wall of the tube is subjected to tensile force, and the mechanical properties of its material will change. When the tensile force exceeds the limit that the tube material can withstand, the outer wall of the present invention will show wrinkling phenomena. This is because during the stretching process of the outer wall of the tube, the fiber structure of the material will deform unevenly, resulting in wrinkles in local areas. Wrinkles will not only seriously affect the appearance quality of the tube fitting, making it look uneven and not smooth, but also reduce the mechanical properties of the tube fitting. For example, when subjected to pressure or tensile force, the wrinkled area is prone to become a stress concentration point, causing the tube fitting to be damaged prematurely.
Functioning Mechanism of the Anti-Wrinkle Die: The anti-Wrinkle die is installed on the outer side of the bending part of the tube. Its working principle is to apply an appropriate pressure on the outer wall of the tube. This pressure can offset the tensile force on the outer wall of the tube to some extent, restricting its excessive stretching, so that the fiber structure of the material on the outer wall of the tube can deform relatively evenly, effectively preventing wrinkles on the tube fitting. Take the bending of stainless steel decorative tubes as an example. Stainless steel decorative tubes have extremely high requirements for appearance quality. During the bending process, without the protection of the anti-Wrinkle die, the outer wall is prone to wrinkling, affecting its decorative effect. The anti-Wrinkle die can precisely adjust the applied pressure according to the diameter, wall thickness and bending angle of the stainless steel decorative tube, ensuring that the stainless steel decorative tube has a smooth and flat surface after bending, meeting the aesthetic requirements.
Causes and Impacts of Wall Thickness Changes: During the tube bending process, the wall thickness of the tube will change to some extent due to the action of the bending force. This is because during the bending of the tube, the inner wall is compressed and the outer wall is stretched, and this stress state will cause the material of the tube to redistribute in the thickness direction. If not controlled, there may be situations where the local wall thickness is too thin or too thick. The part with too thin wall thickness is prone to rupture when subjected to pressure or tensile force, and the part with too thick wall thickness may affect the dimensional accuracy of the tube fitting and the mating accuracy with other components, thereby affecting the overall performance and safety of use of the tube fitting.
Controlling Role of the Anti-Wrinkle Die: The anti-Wrinkle die, while preventing wrinkles on the tube fitting, also plays a certain role in controlling the changes in tube wall thickness. It makes the changes in wall thickness during the tube bending process more even through reasonable pressure distribution. Specifically, the pressure applied by the anti-Wrinkle die will affect the stretching state of the outer wall of the tube, and then affect the redistribution of the material of the tube in the thickness direction. For example, in the field of aerospace tube fittings processing, extremely high precision is required for the wall thickness of tube fittings. The anti-Wrinkle die can ensure that the changes in wall thickness during the bending process are within the allowable range according to the specific requirements of the tube fitting, ensuring that the wall thickness of the tube fitting can meet the corresponding engineering application requirements, improving the reliability and safety of the tube fitting in aerospace equipment.
Coordinated Work to Improve Precision: The anti-Wrinkle die works in coordination with other components of the tube bending die (such as the tube bending die body, mandrel, etc.) to contribute to improving tube bending precision. Based on preventing wrinkles on the tube fitting and controlling changes in wall thickness, the anti-Wrinkle die makes the bending process of the tube more stable and controllable. It can cooperate with the mandrel to further ensure that the tube has internal support and the outer part is not overly stretched during the bending process, thereby achieving more precise bending angles, radii and other parameters.
Meeting the Requirements of High-End Fields: In high-end fields such as aerospace and precision instrument manufacturing, extremely high requirements are placed on tube bending precision. The existence of the anti-Wrinkle die can effectively meet the strict requirements of these fields for the quality and precision of tube fittings. For example, in the manufacturing of aerospace engine tube fittings, tube fittings need to be precisely bent into various complex shapes to adapt to the internal structure of the engine, and extremely high precision is required for parameters such as the wall thickness and bending angle of the tube fittings. The anti-Wrinkle die, through coordinated work with other die components, can ensure that no wrinkles, excessive changes in wall thickness and other problems occur during the bending process of the tube fitting, while achieving precise bending angles and radius, ensuring that the quality and precision of the tube fitting meet the high-standard requirements of aerospace engine manufacturing.
