how to improve the bending accuracy of copper tube bending machines:

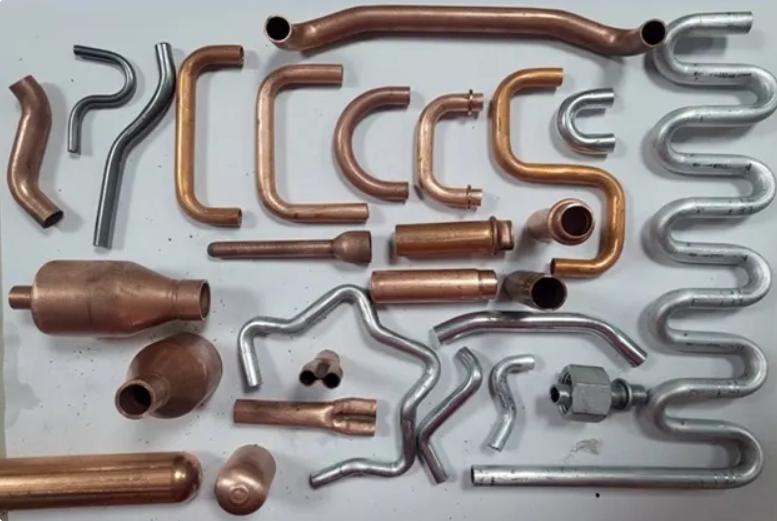

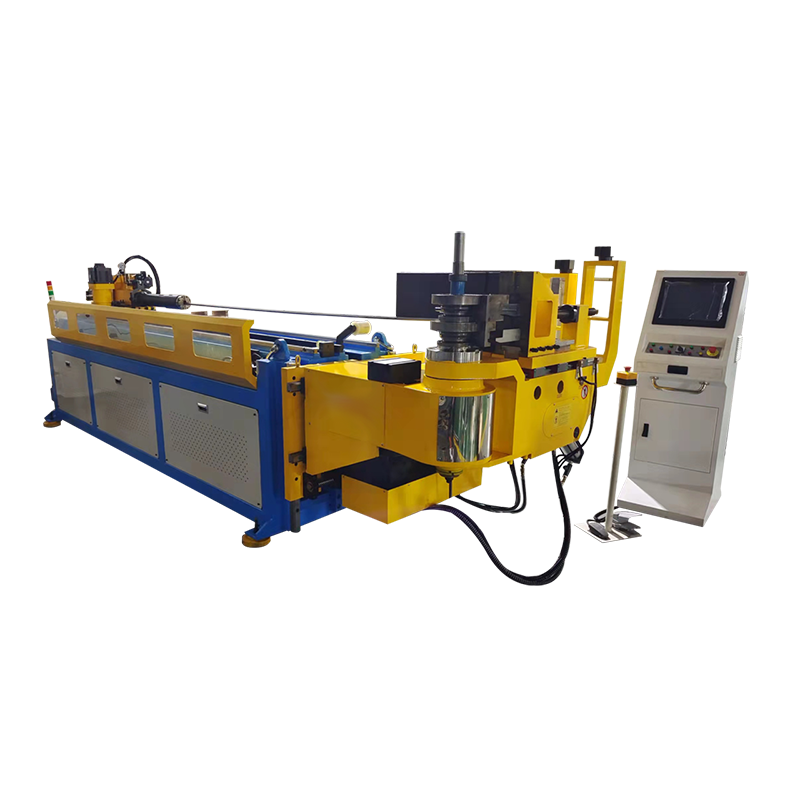

Precise Control by the CNC System: The reason why CNC bending machines can achieve high-precision bending lies in their advanced CNC systems. Based on the detailed parameters of the copper tube inputted, such as the exact diameter (accurate to millimeters or even smaller units), wall thickness (able to accurately identify different thickness specifications), bending angle (which can be set to very fine degrees), and bending radius (precisely determined specific values), etc., through complex algorithms and program instructions, the CNC system can extremely precisely control the movement trajectory of the bending die. For example, when manufacturing some precision refrigeration equipment with extremely high requirements for the bending accuracy of copper tubes, CNC bending machines can precisely bend the copper tubes into the预设 shapes and angles, with the error controlled within a very small range.
Attention to Details of Equipment Performance Indicators:
High-Resolution Sensors: High-quality CNC bending machines are usually equipped with high-resolution sensors, such as angle sensors and displacement sensors. The high resolution of the angle sensor means that it can more sensitively perceive the slightest changes in the bending angle of the copper tube during the bending process. Taking an angle sensor with a resolution of 0.01 degrees as an example, it can accurately monitor the changes in the angle in real time during the bending of the copper tube. Once any deviation from the预设 angle is detected, it will promptly feed back to the CNC system for adjustment, thus ensuring the high precision of the bending angle.
Precision Transmission Components: The transmission components in the equipment, such as lead screws and guide rails, have a significant impact on the bending accuracy. High-precision lead screws are manufactured by precision machining processes, with extremely small pitch errors, enabling them to accurately convert the rotational motion of the motor into the linear motion of the die, ensuring the accuracy of the die's position during movement. Similarly, high-precision guide rails have extremely low straightness errors and roughness, providing a smooth and precise guide for the movement of the die, reducing bending errors caused by the insufficient precision of the transmission components themselves.
Stable Control System: A stable and reliable control system is the guarantee for CNC bending machines to achieve high-precision bending. It needs to possess rapid data processing capabilities, being able to receive the information fed back by the sensors in real time and promptly adjust the various actions of the bending machine according to this information. For example, when the copper tube encounters resistance during the bending process, causing the bending speed to slightly decrease, the stable control system can promptly adjust the output power of the motor to restore the normal bending speed, thereby ensuring that the entire bending process is carried out according to the preset accuracy requirements.
Comprehensive Equipment Cleaning: Regularly conducting comprehensive cleaning of the bending machine is the foundation for maintaining its good performance. Not only should the dust, oil stains and other impurities on the surface of the equipment be removed, but also special attention should be paid to cleaning the dust and debris around the internal transmission components and inside the electrical control box. For the equipment surface, it can be wiped with a clean soft cloth; for the hard-to-reach internal parts, small cleaning tools such as hair dryers and small brushes can be used for cleaning. For example, if the dust inside the electrical control box is not promptly removed, it may lead to poor heat dissipation of the electrical components, thereby affecting their performance and even causing failures, ultimately affecting the normal operation and bending accuracy of the bending machine.
Precise Lubrication Operations: According to the lubrication cycle and parts specified in the equipment manual, precisely lubricating each transmission component is of crucial importance. Taking gear transmission as an example, special gear lubricating oil should be used, and an appropriate amount of lubricating oil should be evenly smeared on the tooth surfaces of the gears to ensure that each tooth is fully lubricated. For lead screws and guide rails, grease is usually used for lubrication, and a grease gun can be used to accurately inject the grease into the corresponding lubrication parts. The purpose of lubrication is to reduce the friction between transmission components, lower the heat and wear caused by friction, thereby ensuring the smooth operation of the transmission components and maintaining the bending accuracy of the bending machine.
Regular Component Inspection: A strict regular inspection system should be established to conduct detailed inspections on each component of the bending machine. Besides daily observing whether the equipment has abnormal noises, vibrations, etc., comprehensive inspections should also be carried out regularly (such as every certain working hours or production batches). The key inspection objects are the bending die, transmission components (such as gears, lead screws, guide rails, etc.), hydraulic system components (such as hydraulic cylinders, hydraulic valves, etc., if it is a hydraulic bending machine), and other easily worn parts. For example, when inspecting the bending die, it is necessary to check whether there are scratches, wear, deformation, etc. on the die surface and whether the dimensional accuracy of the die still meets the requirements; for the transmission components, it is necessary to measure whether the clearance has increased and whether the surface roughness has deteriorated.
Replacement Standards for Worn Components: Once it is found that the components have the following wear conditions, they should be replaced promptly:
When obvious scratches or the wear depth on the die surface exceeds the specified value (such as 0.1 mm), resulting in a significant decline in the dimensional accuracy of the die and affecting the bending accuracy of the copper tube: For example, if the inner diameter of the die becomes larger due to wear, and the matching degree with the outer diameter of the copper tube deteriorates, the copper tube will be unevenly stressed during the bending process, thereby reducing the bending accuracy.
When the clearance of the transmission components increases to the extent that it affects the motion accuracy (such as the axial clearance of the lead screw exceeding 0.05 mm), or the surface roughness deteriorates, resulting in a significant increase in friction and obviously affecting the performance of the equipment: Taking the guide rail as an example, if the surface roughness of the guide rail deteriorates, the die will produce large vibrations and offsets during the movement process, thus being unable to ensure the bending accuracy.
When the hydraulic system components (such as the piston seal of the hydraulic cylinder) leak, resulting in unstable hydraulic pressure and affecting the accuracy and precision of the bending action: When the piston seal of the hydraulic cylinder wears out and leaks, the hydraulic pressure of the oil cannot be accurately transmitted to the piston, affecting the movement of the piston and thereby affecting the bending operation of the bending machine on the copper tube.
Replacement Component Procedures: When replacing worn components, the replacement procedures provided by the equipment manufacturer should be strictly followed. First, prepare replacement components that are exactly the same in specification and model as the original components to ensure that their quality and performance meet the requirements. Then, carefully remove the old components according to the location and installation method of the components, taking care not to damage other surrounding components. When installing the new components, ensure that the installation position is accurate and the connection is firm. For bolt-connected components, use appropriate tools to tighten the bolts to the specified torque value. After installation, the new components should also be debugged to check whether they can work normally and whether the original performance and bending accuracy of the equipment have been restored.
Accurate Measurement of Copper Tube Dimensions: Before selecting the bending die, the diameter, wall thickness and other specifications of the copper tube must be accurately measured. Professional measuring tools such as calipers and micrometers should be used to accurately measure the outer diameter, inner diameter and wall thickness of the copper tube, with the measurement accuracy reaching millimeters or even smaller units. For example, for a copper tube with an outer diameter of about 10 mm, the measurement error should be controlled within ±0.05 mm to ensure that the die that best matches the copper tube dimensions can be selected.
Tight Matching of Die Dimensions: According to the measured copper tube dimensions, select a bending die that closely matches it. The inner diameter of the die should match the outer diameter of the copper tube within the tolerance range, and generally the tolerance should be controlled within ±0.02 mm. Only in this way can the copper tube be evenly stressed during the bending process, avoiding problems such as excessive local deformation and reduced bending accuracy. For example, if the outer diameter of the copper tube is 12 mm, then the inner diameter of the selected die should be 12 mm ± 0.02 mm. Only in this way will the copper tube be evenly bent under the action of the die during the bending.
Characteristics of High-Quality Die Materials: Selecting dies made of high-quality materials is crucial for improving the bending accuracy of copper tubes. High-quality dies are usually made of materials with high strength, good wear resistance and excellent thermal stability, such as high-quality alloy steels and die steels. These materials have a relatively high yield strength, being able to withstand the relatively large pressure during the bending process without deformation; they have good wear resistance, being able to maintain the smoothness and dimensional accuracy of the die surface during multiple bending operations; they have good thermal stability, and even if heat is generated due to friction during the bending process, the die will not deform or change in size, thus ensuring the stability of the bending accuracy of the copper tube.
Impact of Die Manufacturing Processes on Accuracy: Besides the material, the manufacturing processes of the die also have a great impact on its accuracy. Adopting advanced manufacturing processes such as precision forging, electric discharge machining and wire cutting machining can produce dies with high dimensional accuracy and good surface quality. For example, electric discharge machining can produce dies with complex shapes and extremely high accuracy, with the processed die having a smooth surface and extremely small dimensional deviations, being able to better ensure the bending accuracy of the copper tube.
Checking the Flatness of the Installation Surface: Before installing the bending die, it is necessary to check whether the installation surface on the bending machine is flat. Use a level meter or other tools to detect the installation surface. If it is found that the installation surface is not flat, measures should be taken to adjust it, such as using shims for leveling. A flat installation surface is the basis for ensuring the firm and stable installation of the die. Otherwise, the die may tilt, loosen, etc. after installation, affecting the bending accuracy of the copper tube.
Ensuring Tight Bolt Connections: When installing the die on the bending machine, use appropriate bolts for connection and ensure that the bolts are tightened to the specified torque value. For different specifications of dies and bending machines, the bolt specifications and tightening torque values may vary, and the requirements provided by the equipment manufacturer should be followed. When tightening the bolts, a torque wrench or other tools can be used to ensure that each bolt can firmly fix the die on the bending machine, preventing the die from loosening, shifting, etc. during the bending process.
Checking the Movement Trajectory of the Die: After installation, first check whether the movement trajectory of the die is consistent with the预设. Start the bending machine to let the die perform an idle movement, and observe whether the die moves according to the design requirements. If it is found that the movement trajectory of the die has a deviation, the cause should be promptly identified. It may be due to improper installation, transmission component failure, etc. Adjustments should be made according to the specific cause to restore the normal movement trajectory of the die.
Checking the Cooperation with Other Components: Besides checking the movement trajectory of the die, it is also necessary to check the cooperation between the die and other related components (such as transmission components, clamping devices, etc.). Observe whether there is friction, collision, etc. between the die and these components during the movement process. If there is, the positions of the die or other components should be adjusted promptly to ensure smooth cooperation between them. For example, if there is friction between the die and the clamping device, the copper tube may be subjected to additional forces during the bending process, affecting the bending accuracy. Through fine debugging of the die, make the die reach the best working state to ensure the accuracy of the copper tube bending process.
Preparations Before Startup: Before starting up the bending machine, a series of preparatory work should be carried out according to the operation manual of the bending machine. First, check whether the connections of all components of the equipment are normal, including whether the power cords, data cables, hydraulic oil pipes (if it is a hydraulic bending machine) are firmly connected, whether there are any damages or leaks, etc. Then, check whether the electrical system of the equipment is normal, which can be judged by checking whether the indicator lights on the control panel are on. In addition, check whether the environment around the equipment is safe, clear the debris around the equipment to prevent accidents during the startup process.
Startup Operation Steps: After completing the preparatory work, follow these steps to start up the machine: First, connect the main power supply of the equipment, wait for the equipment to complete the self-check process. During the self-check process, the equipment will automatically check whether various system parameters are normal, such as the motor speed, sensor status, etc. After the self-check is completed, if everything is normal, the equipment will emit a prompt sound or display the corresponding prompt information on the control panel. At this time, the working mode of the bending machine can be started to prepare for the bending operation of the copper tube.
Shutdown Operation Steps: After the bending operation of the copper tube is completed, the shutdown operation should be carried to. First, stop the working mode of the bending machine to make the equipment in an idle state. Then, cut off the main power supply of the equipment and close the electrical system of the equipment. After shutting down, the equipment should also be cleaned, removing the dust, oil stains and other impurities on the surface and inside of the equipment, and protecting the equipment, such as covering it with a dust cover, to prevent the equipment from being damaged during the idle period, affecting the bending accuracy when it is used next time.
Accurate Placement of Copper Tube: When clamping the copper tube, it is necessary to ensure that the copper tube is placed accurately and closely adheres to the die. Use calipers or other tools to measure the distance between the copper tube and the die, ensuring that the error is within the allowable range, generally requiring the error to be controlled within ±0.05 mm. For example, if the copper tube is not placed accurately and there is a large gap between it and the die, the copper tube may be deformed at the gap during the bending process, affecting the bending accuracy.
Firm Fixing of Copper Tube: After placing the copper tube, use an appropriate clamping device to clamp the copper tube to make it firmly fixed. Different specifications of copper tubes may require different types of clamping devices. For example, for copper tubes with a smaller diameter, a small clamp can be used; for copper tubes with a larger diameter, a large clamp or a multi-point clamping method may be required. When clamping the copper tube, be careful not to damage the surface of the copper tube, otherwise it will affect the quality and bending accuracy of the copper tube. At the same time, ensure that the clamping force of the clamping device is uniform, avoiding the copper tube from being displaced or shaken during the bending process due to uneven clamping force, affecting the bending accuracy.
Contents and Influence of Basic Parameters: For CNC bending machines, operators need to accurately input all basic parameters of the copper tube into the CNC system. These basic parameters include the diameter, wall thickness, bending angle, bending radius, etc. of the copper tube. Any incorrect input of a parameter may lead to a significant deviation between the bending result and the预期, thereby greatly reducing the bending accuracy. For example, if the diameter of the copper tube is input incorrectly, the movement trajectory of the die and the bending force calculated by the CNC system based on the incorrect diameter will be deviated, ultimately resulting in the shape and angle of the bent copper tube being inconsistent with the预期.
Input Precision Requirements: When inputting these basic parameters, a high level of input precision is required. The input precision of the diameter and wall thickness should reach millimeters or even smaller units, the input precision of the bending angle should reach one-tenth of a degree or even smaller units, and the input precision of the bending半径 should reach one-tenth of a millimeter or even smaller units. For example, for a copper tube with a diameter of 10 mm, the input precision should be ±0.05 mm; for a copper tube with a bending angle of 90 degrees, the input precision should be ±0.01 degree; for a copper tube with a bending半径 of 50 mm, the input精度 should be ±0.05 mm.
Adjustment Based on Copper Tube Material Characteristics: Besides the basic parameters, it is also necessary to adjust the bending speed, pressure and other process parameters reasonably according to the material characteristics of the copper tube, such as hardness, toughness, etc. Different materials of copper tubes may require different process parameters to achieve the best bending accuracy. For example, for copper tubes with a higher hardness, it may be necessary to appropriately reduce the bending speed and increase the bending pressure to ensure that the copper tube does not break or deform too much during the bending process; for copper tubes with a better toughness, the bending speed can be appropriately increased and the bending pressure can be appropriately reduced to improve production efficiency while maintaining the bending accuracy.
Adjustment Based on Specific Bending Requirements: It is also necessary to adjust the process parameters according to the specific bending requirements, such as the complexity of the shape of the copper tube after bending, whether continuous bending is required, etc. If the shape of the copper tube to be bent is complex, it may be necessary to reduce the bending speed to better control the bending process of the copper tube; if continuous bending is required, it may be necessary to appropriately adjust the bending pressure to ensure the accuracy and continuity of each bending. When adjusting the process parameters, the best parameter settings can be determined through multiple trials and experience accumulation to achieve the best bending accuracy.
Dimensional Accuracy Standards: Priority should be given to selecting copper tubes with reliable quality and high dimensional accuracy. The dimensional deviations of high
