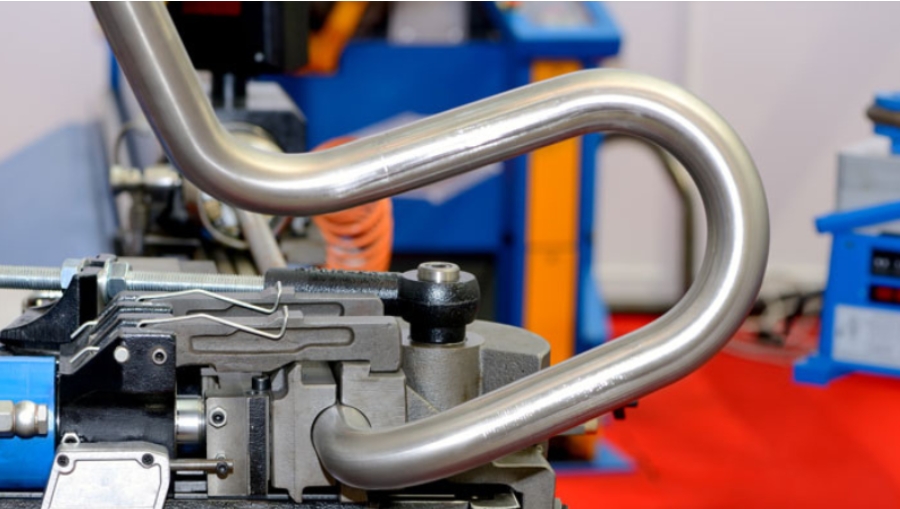

The fully automatic pipe bender for automobile exhaust pipes is a specialized piece of equipment used in the manufacturing of automobile exhaust pipes. The following is a detailed introduction:
Mechanical Structure: It includes the frame and worktable, etc., which provide stable support and a basic framework for the entire equipment, ensuring the stability and precision of the equipment during the pipe bending process.
Feeding Mechanism: Generally driven by a servo motor, it is responsible for accurately conveying the exhaust pipe tubes to be processed to the bending die, ensuring the feeding speed and positional accuracy of the tubes. Common feeding methods include roller feeding, etc.
Bending Die: Corresponding dies are equipped according to different diameters, bending angles, and shape requirements of the exhaust pipes. The material and precision of the dies directly affect the quality and precision of the pipe bending. High-quality dies can ensure that parameters such as the bending radius and angle of the exhaust pipes meet the design requirements.
Hydraulic System: It provides powerful driving force for the pipe bending action. By controlling the pressure and flow rate of the hydraulic oil, it drives the bending die to bend the tubes, realizing the processing of pipe bends with different angles and curvatures.
Control System: Adopting advanced PLC programming control technology combined with a touch-screen operation interface, it enables precise control and parameter setting for each action of the pipe bender. Operators can intuitively input parameters such as the bending angle, radius, and feeding length on the touch screen and monitor the running status of the equipment.
Sensors: Installed at key parts of the equipment, such as the feeding mechanism and bending die, etc., they monitor the position, bending angle, pressure, and other parameters of the tubes in real-time and feed back this information to the control system so that the pipe bending process can be adjusted and corrected in a timely manner to ensure the precision of pipe bending and the safe operation of the equipment.
High Precision: With the help of advanced control systems and precise mechanical structures, it can achieve precise control of the bending angle and radius. The bending precision can reach ±0.1° or even higher, ensuring the assembly precision and performance requirements of automobile exhaust pipes.
High Efficiency: Adopting automated processes such as feeding, bending, and unloading greatly improves production efficiency, reduces manual intervention and production cycles, and can meet the needs of large-scale production in the automobile manufacturing industry.
High Flexibility: Different pipe bending parameters can be set through programming to adapt to the production of automobile exhaust pipes with various specifications, shapes, and bending requirements. It can also quickly switch production tasks to produce different models of exhaust pipes, improving the utilization rate of the equipment and the flexibility of production.
Strong Stability: Each component of the equipment has been carefully designed and rigorously tested, possessing good stability and reliability. It can operate continuously and stably for a long time, reducing the equipment failure rate and maintenance costs and ensuring the continuity of production.
Simple Operation: Equipped with an intuitive touch-screen operation interface, operators can master the operation method of the equipment after simple training, easily set pipe bending parameters and monitor the production process, reducing the technical requirements for operators.
Improve Product Quality: The precise pipe bending precision and stable production quality improve the consistency and reliability of automobile exhaust pipes, reducing faults such as exhaust pipe leakage and vibration caused by pipe bending quality problems, and enhancing the overall performance and quality of automobiles.
Reduce Production Costs: Automated production reduces manual operations, lowering labor costs. Meanwhile, the high-efficiency production method improves production efficiency and reduces the production cost per unit product. In addition, the stability and reliability of the equipment also reduce production delays and losses caused by equipment failures.
Enhance Enterprise Competitiveness: Being able to quickly and efficiently produce high-quality automobile exhaust pipes meets the strict requirements of automobile manufacturing enterprises for component suppliers, helping enterprises increase their market share and competitiveness and adapt to the fast-developing and highly competitive market environment of the automobile industry.
