fiber laser pipe cutting machine

High Precision: It can achieve very accurate cutting. The cutting accuracy can be as fine as ±0.1mm. This allows for the production of pipes with complex geometries and tight tolerances. For instance, in the automotive exhaust system manufacturing, precise cuts are needed to ensure the proper fit of pipes and components.

Fast Cutting Speed: Compared to traditional cutting methods like mechanical sawing or plasma cutting, fiber laser pipe - cutting machines are much faster. They can cut through pipes at a high speed, increasing productivity. The speed depends on factors such as the power of the laser, the material and thickness of the pipe. For a medium - thickness carbon - steel pipe, the cutting speed can be several meters per minute.

Good Cut Quality: The cut surface is smooth, with little to no burrs. The heat - affected zone around the cut is relatively small. This is beneficial for subsequent processing steps such as welding. A smooth cut surface reduces the need for additional finishing operations and ensures better quality welds.

Versatility: It can handle a wide range of pipe materials, including various metals like stainless steel, carbon steel, aluminum, and even some non - metallic materials. It can also cut pipes of different diameters and wall thicknesses. Additionally, it can produce a variety of shapes, from simple straight cuts to more complex shapes with holes, slots, and curves.

Laser Generator: As mentioned earlier, the fiber laser generator is responsible for producing the laser beam. The power of the laser generator can vary depending on the application requirements. Higher - power generators are used for cutting thicker pipes or materials that are more difficult to cut.

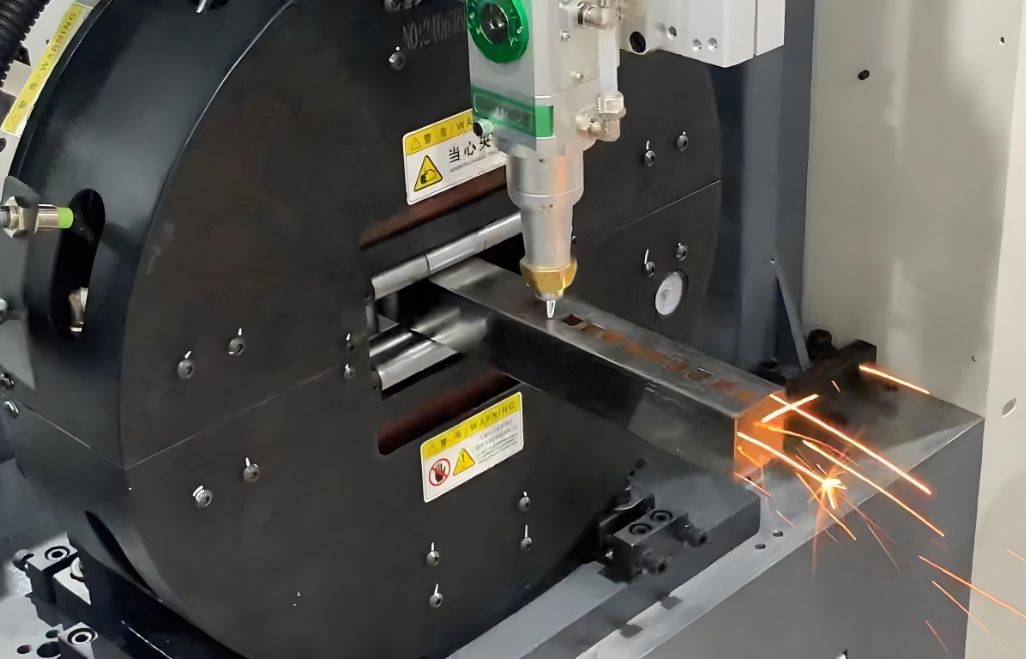

Cutting Head: The cutting head focuses the laser beam onto the pipe surface. It contains optical elements such as lenses and mirrors that can adjust the focus and beam quality. Some advanced cutting heads have features like automatic focus adjustment, which ensures consistent cutting quality across different pipe geometries and thicknesses.

CNC (Computer Numerical Control) System: The CNC system controls the movement of the cutting head and the overall cutting process. Operators can input the cutting parameters such as the shape of the cut, the length and diameter of the pipe, and the cutting speed through a user - friendly interface. The CNC system then converts these instructions into precise movements of the cutting head and other components.

Work - holding Fixtures: These are used to hold the pipe in place during the cutting process. The fixtures need to be designed to accommodate different pipe diameters and shapes to ensure stability and accuracy. For example, for round pipes, V - shaped or circular clamps are often used, while for square or rectangular pipes, flat - surfaced clamping mechanisms are more suitable.

Manufacturing Industry: In the automotive industry, it's used to cut pipes for exhaust systems, fuel lines, and hydraulic systems. In the aerospace industry, it cuts pipes for air - conditioning and fuel systems of aircraft. The precise cutting capabilities ensure the pipes meet strict quality and performance standards.

Construction Industry: It's used to cut pipes for plumbing, heating, ventilation, and air - conditioning (HVAC) systems. The ability to cut different materials and shapes allows for custom - made pipe solutions for building projects.

Furniture and Decorative Arts: It can cut metal pipes for use in modern - style furniture, such as table legs, chair frames, and decorative railing. The machine's ability to create complex shapes adds an aesthetic value to the products.
