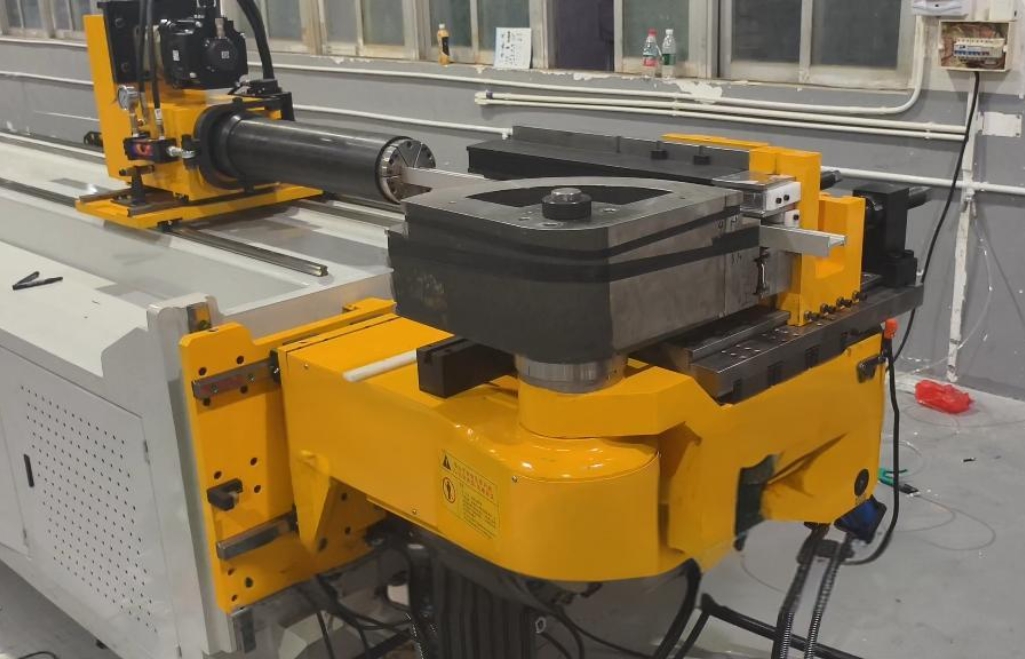

The following is the information regarding the bending precision and efficiency of the bending equipment for T-shaped aluminum alloy I-beam anti-fall rails of power transmission towers:
Influencing Factors:
Equipment's Own Precision: Advanced bending equipment adopts high-precision mechanical structures and transmission systems, such as high-precision guide rails, sliders, and lead screws, which can ensure the motion precision of each component during the bending process and thus improve the bending precision. For example, the motion precision of the slider of a CNC bending machine can reach ±0.01mm or even higher, effectively ensuring the accuracy of the bending angle and size.
Die Precision: Dies are one of the key factors affecting bending precision. The fit clearance and shape precision between the upper and lower dies directly influence the bending effect of the I-beam. High-precision dies can make the I-beam evenly stressed during the bending process, avoid local deformation or distortion, and ensure the consistency of the bending angle and dimensional accuracy. Generally speaking, the manufacturing precision of high-quality dies can be controlled within ±0.05mm.
Material Characteristics: The uniformity of the material and hardness of the aluminum alloy I-beam also have an impact on the bending precision. If the stress distribution of the material is uneven or the hardness is inconsistent, it is easy to cause uneven deformation during the bending process and affect the bending precision. Therefore, strict inspection and pretreatment of the material are required before bending to ensure that the material's performance meets the bending requirements.
Processing Technology: Reasonable processing technology is an important link in ensuring bending precision. Settings of parameters such as the bending sequence, bending speed, and pressure control will all affect the final bending precision. For example, adopting an appropriate step-by-step bending process and gradually adjusting the bending angle can effectively reduce the springback phenomenon and improve the bending precision.
General Precision Range: For the bending equipment of T-shaped aluminum alloy I-beam anti-fall rails of power transmission towers, the precision of the bending angle can usually be controlled within ±0.5°, and the dimensional precision of bending can be controlled within ±0.5mm. Some high-end bending equipment can even achieve higher precision, such as a bending angle precision of ±0.1° and a dimensional precision of ±0.1mm.
Influencing Factors:
Equipment Type: Different types of bending equipment have significant differences in efficiency. CNC bending machines have a higher degree of automation and production efficiency compared with traditional manual or mechanical bending machines. CNC bending machines can set bending parameters through pre-programming to realize automatic feeding, positioning, and bending operations, greatly reducing the time for manual intervention and improving production efficiency. For example, the bending speed of a CNC bending machine can reach 10 - 20 times per minute, while a manual bending machine may only complete 1 - 2 bends per minute.
Equipment Power and Performance: The greater the power of the equipment, the stronger its bending ability, the wider the range of I-beam specifications and thicknesses it can handle, and it can also improve the bending speed to a certain extent. For example, a high-power hydraulic bending machine can provide greater pressure when bending thick-walled aluminum alloy I-beams, making the bending process quicker and smoother and improving the overall efficiency.
Batch Size: The efficiency advantage of the equipment is more obvious when producing in batches. For large-scale production of anti-fall rails for power transmission towers, adopting highly automated bending equipment can further improve production efficiency through continuous operation and optimization of the production process. On the contrary, when producing in small batches, the equipment's debugging and preparation time is relatively long, which will affect the efficiency to a certain extent.
Operator Skills: The proficiency and skill level of operators also have an important impact on bending efficiency. Skilled operators can quickly and accurately adjust equipment parameters and clamp workpieces, avoid equipment failures and production delays caused by improper operations, and thus improve production efficiency.
General Efficiency Level: Under the condition of mass production, ordinary CNC bending equipment can complete the bending processing of 20 - 50 T-shaped aluminum alloy I-beams per hour, while efficient automated bending production lines can process more than 100 pieces per hour. For some bending processing with complex shapes or special requirements, the efficiency may decrease, but with the continuous progress of technology, the efficiency of bending equipment is also constantly improving.
