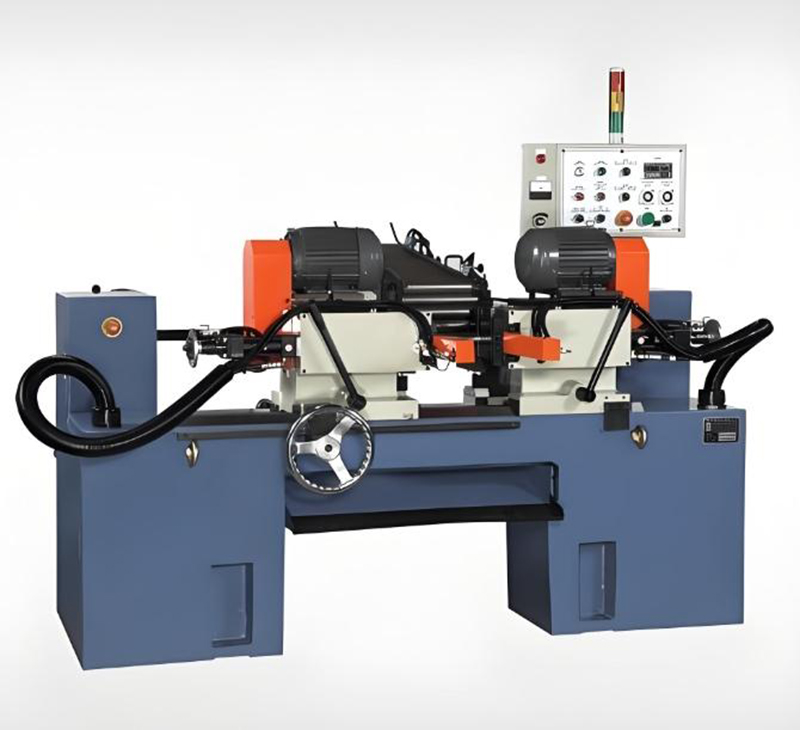

Basis for Motor Selection: The power of the electric motor is not randomly determined but needs to be comprehensively considered based on multiple factors. Firstly, it should be selected according to the material characteristics of the pipes to be processed. Different materials (such as steel pipes and copper pipes in metal pipes, and plastic pipes in non-metal pipes) have different physical properties such as hardness and toughness, and thus have different requirements for the processing power. For example, when processing high-hardness steel pipes, an electric motor with a relatively large power is usually required to ensure sufficient power to drive the cutting tools or abrasives for effective processing; while for relatively soft plastic pipes, the power of the electric motor can be relatively reduced, but it should also ensure that it can meet the normal processing requirements.
Power Transmission Method: The power generated by the electric motor needs to be transmitted to the cutting tools or abrasives through a specific transmission mechanism. Common transmission methods include belt transmission and gear transmission. Belt transmission has the advantages of simple structure and strong shock absorption and vibration buffering capabilities, which can protect the motor and other components from excessive impact to a certain extent; gear transmission has the characteristics of high transmission efficiency and accurate transmission ratio, which can achieve more precise power transmission, ensuring that the cutting tools or abrasives obtain a stable and appropriate rotational speed to meet the requirements of different chamfering processing accuracies.
Tool Equipment and Characteristics: The cutting tools equipped in cutting-type chamfering machines are mostly high-performance tools such as carbide cutting tools. The angle and shape of the cutting edge of these tools are carefully designed based on a large amount of practical experience and mathematical model calculations, aiming to accurately match different chamfer angles (such as the commonly seen 30-degree and 45-degree chamfers) and size requirements. For example, for the requirement of a smaller angle chamfer, the angle of the cutting edge of the tool will be designed to be relatively sharp so that it can more accurately remove the material at the pipe end during the cutting process to form a chamfer shape that meets the requirements.
Cutting Principle: After the power is transmitted to the cutting tools by the electric motor through the transmission mechanism, the tools start to rotate at high speed. When the fixed pipe end comes into contact with the rotating tool, the tool cuts the pipe with its sharp cutting edge. During the cutting process, the cutting edge is like a miniature cutting saw, removing the excess material at the pipe end layer by layer according to the set cutting path. Since the rotational speed of the tool is very high and the contact area between the cutting edge and the pipe is relatively small, the cutting chamfering work of the pipe end can be completed in a short time while ensuring the accuracy and surface quality of the chamfer.
Abrasive Equipment and Characteristics: The abrasives used in grinding-type chamfering machines are usually grinding wheels. The selection of grinding wheels is crucial, and parameters such as their grit, hardness, and binder need to be carefully adjusted according to the specific processing requirements. For example, for chamfering processing that requires extremely high surface smoothness, a grinding wheel with a finer grit will be selected so that the pipe end can obtain a more delicate surface texture during the grinding process; while for the situation where a large amount of material needs to be removed quickly, a grinding wheel with a slightly coarser grit but higher hardness may be selected to improve the grinding efficiency.
Grinding Principle: Under the drive of the electric motor, the grinding wheel also starts to rotate at high speed. When the pipe end approaches the rotating grinding wheel, the abrasive grains on the surface of the grinding wheel have a strong frictional interaction with the material at the pipe end. This friction is not a simple planar friction but, under the high-speed rotation of the grinding wheel, the abrasive grains are like countless tiny cutting edges, grinding the pipe end from different angles. As the grinding progresses, the material at the pipe end is gradually removed, thus forming the required chamfer shape. Since the grinding wheel will continuously wear during the grinding process, it needs to be regularly dressed or replaced to ensure that it always maintains good grinding performance.
Structure and Function of the Clamping Device: The clamping device usually consists of a chuck, a clamping mechanism, and an adjustment knob. The chuck is the part that directly contacts the pipe, and its shape and size are designed to adapt to pipes of different diameters. It generally adopts an adjustable structure so that it can tightly clamp pipes of various specifications. The clamping mechanism is responsible for providing the clamping force and realizes the clamping operation of the pipe through mechanical structures (such as screws and nuts) or hydraulic, pneumatic, etc. means. The adjustment knob is used to enable the operator to flexibly adjust the magnitude of the clamping force according to the actual situation of the pipe (such as the diameter of the pipe, the material of the pipe, etc.), ensuring that the pipe can be firmly fixed without causing damage to the surface of the pipe due to excessive clamping force.
Requirements for Positioning Accuracy: In addition to the clamping function, the clamping device also needs to ensure the positioning accuracy of the pipe. This means that after the pipe is fixed, its end should be accurately located in the position where the cutting tools or abrasives can perform precise processing. In actual operation, auxiliary positioning parts such as positioning pins and positioning slots are usually set to improve the positioning accuracy of the pipe, so that the relative position deviation between the pipe end and the cutting tools or abrasives is controlled within a very small range, thus ensuring the accuracy and consistency of the chamfer.
Composition and Principle of the Feed System: The feed system mainly consists of a feed motor, a screw, a nut, and a guide rail. The feed motor serves as the power source and provides power for the entire feed process. The screw and the nut form a structure similar to a screw drive. The feed motor drives the screw to rotate, and the nut moves in a straight line along the thread of the screw. The guide rail provides guidance and support for the straight-line movement of the nut, ensuring that the nut can move smoothly and accurately. Through this way, the precise feed movement of the cutting tools or abrasives when in contact with the pipe end is achieved.
Regulation of Feed Parameters: In actual processing, the depth and accuracy of the chamfer can be controlled by adjusting the feed speed and the feed amount. The feed speed refers to the moving speed of the cutting tools or abrasives relative to the pipe end, which directly affects the processing efficiency and the surface quality of the chamfer. When the feed speed is fast, the cutting tools or abrasives can complete the processing of the pipe end in a shorter time, but it may lead to an insufficiently smooth chamfer surface and a reduced accuracy; conversely, when the feed speed is slow, although it can improve the accuracy and surface quality of the chamfer, it will reduce the processing efficiency. The feed amount refers to the amount of material removed each time the cutting tools or abrasives come into contact with the pipe end. By adjusting the feed amount, the depth of the chamfer can be precisely controlled. For example, if a deeper chamfer is to be processed, the feed amount can be appropriately increased; while if a more precise chamfer is to be obtained, the feed amount can be appropriately reduced and the feed speed can be slowed down so that the cutting tools or abrasives can perform more detailed processing on the pipe end.
