Power System: It provides power for the equipment, usually consisting of a motor. The power of the motor is selected according to the material and size of the round bar and the processing requirements to ensure that the tool can obtain sufficient cutting power.
Tool System: It includes various types of tools, such as carbide tools, which have good wear resistance and cutting performance. The tools are installed on the tool holder and can be replaced and adjusted as needed to adapt to different processing tasks.
Clamping Device: It is used to firmly fix the round bar to prevent the round bar from moving or rotating during the processing and ensure the accuracy of the chamfer. Common clamping devices include manual clamps and hydraulic fixtures, which can be adjusted according to the diameter of the round bar to accommodate round bars of different specifications.
Transmission Device: It transmits power from the motor to the tool and the round bar, realizing the rotational movement of the tool and the feeding movement of the round bar. Transmission methods include belt drive, gear drive, screw drive, etc. Different transmission methods have their own characteristics and application ranges.
Control System: It is used to control the operating parameters of the equipment, such as tool rotation speed, round bar feeding speed, chamfer depth, etc. Some advanced round bar chamfering machines are equipped with a numerical control system. Operators can precisely control the processing process through programming to achieve automated and high-precision chamfering.
Manual Round Bar Chamfering Machine: It is simple to operate and suitable for small-batch processing tasks with low precision requirements. Operators manually control the feeding of the round bar and the movement of the tool for chamfering.
Semi-automatic Round Bar Chamfering Machine: Some operations are automated, such as the clamping of the round bar and the feeding of the tool are automatically completed by the equipment, but manual loading and unloading are still required. This type of chamfering machine is suitable for medium-batch production and can improve production efficiency to a certain extent.

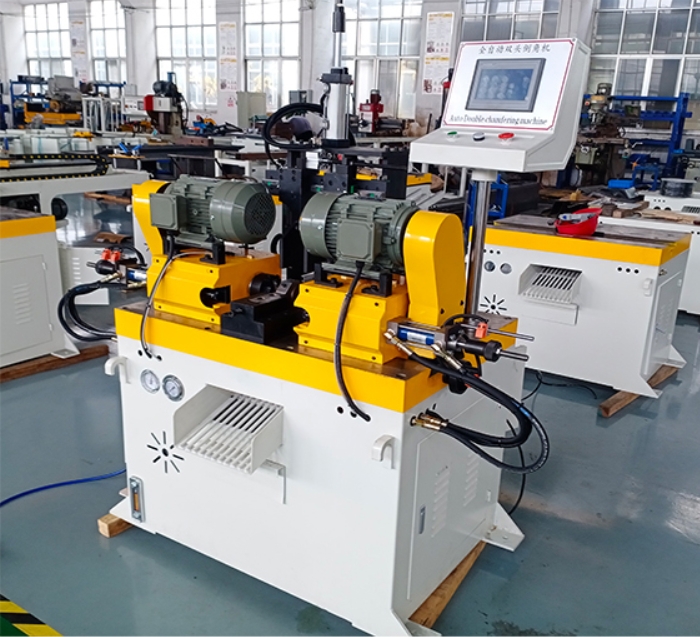

Fully Automatic Round Bar Chamfering Machine: It has an automatic loading and unloading function. The entire processing process requires no human intervention and can achieve continuous and efficient production. Fully automatic round bar chamfering machines are usually equipped with advanced numerical control systems and sensors, which can precisely control processing parameters and ensure the consistency of processing quality. They are suitable for large-batch production.

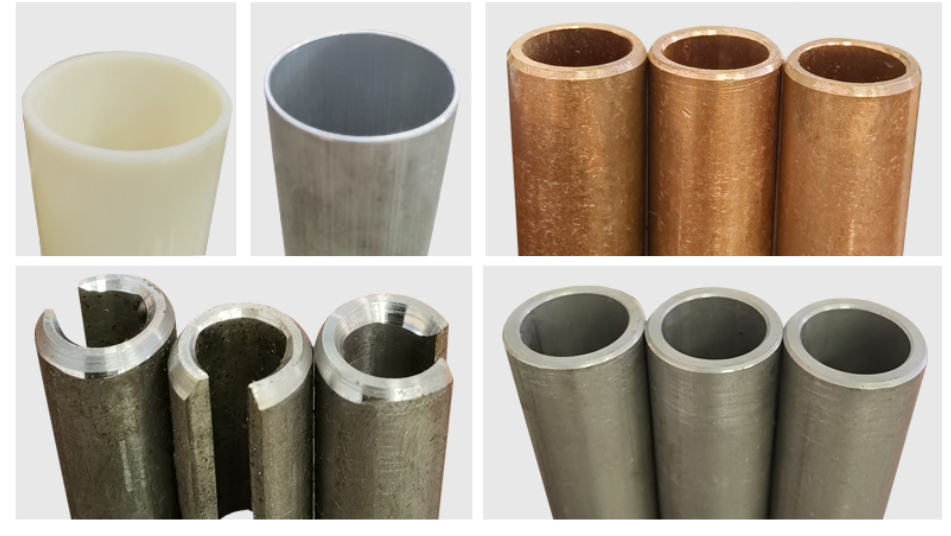

Mechanical Manufacturing Industry: When manufacturing round bar-shaped parts such as shafts and pins, chamfering is an essential process, which can improve the assembly accuracy and service life of the parts.
Automobile Manufacturing Industry: Key parts of automobile engines, such as crankshafts and connecting rods, as well as some metal support round bars of automobile interior parts, all need to be chamfered to meet the design and usage requirements.
Furniture Manufacturing Industry: In furniture manufacturing, metal round bars used as support structures or decorative components can make the products more beautiful and safe after chamfering.
Construction Industry: In construction, some round bars used for connection and support, such as steel pipes of scaffolding, sometimes also need to be chamfered to facilitate construction and improve the connection stability.
