Laser Generation Inside the laser cutting machine, there is a laser generator. It stimulates the particles in the gain medium (such as carbon dioxide, optical fiber, etc.) through electrical energy to make them undergo energy level transitions, thus generating a laser beam with high energy density. For example, in an optical fiber laser, the optical fiber is used as the gain medium, and the pump source injects energy into the fiber to produce the laser.

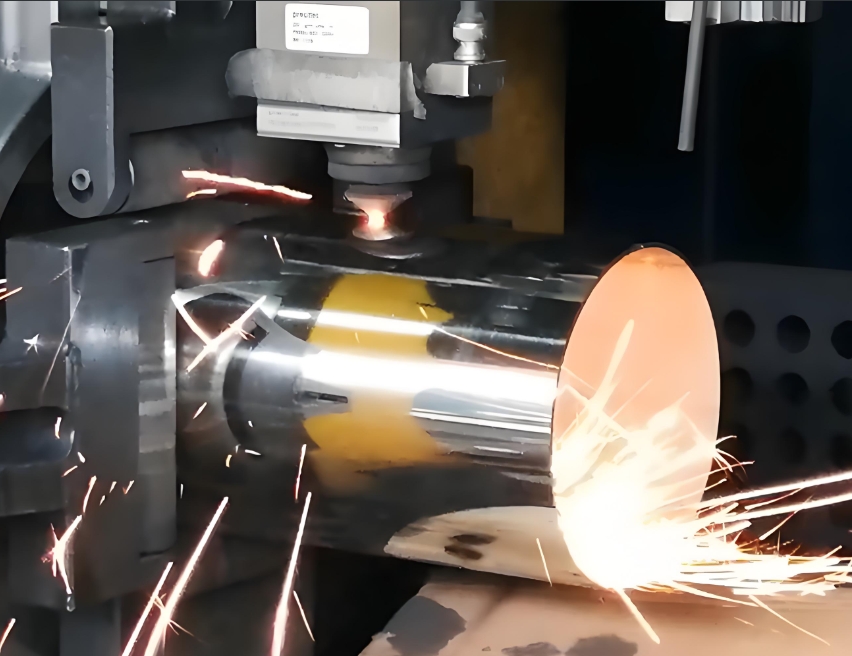

Laser Focusing and Pipe Cutting The generated laser beam is focused by the optical focusing system. The focused laser beam has highly concentrated energy and irradiates on the surface of the pipe. When the laser energy reaches the melting point or boiling point of the pipe material, the pipe material melts or vaporizes rapidly. Meanwhile, the cutting head is controlled by the numerical control system to move along the pre-programmed path to cut the pipe into the required shapes and sizes. During the cutting process, auxiliary gases (such as oxygen, nitrogen) are generally ejected. If oxygen is used for auxiliary cutting, it will also have an oxidation reaction with the metal pipe, further accelerating the cutting process and improving the cutting efficiency; when nitrogen is used for auxiliary cutting, it is mainly to prevent the material from oxidizing during the cutting process, which is suitable for situations where high surface quality of cutting is required.
II. Main Components
Laser Generator This is the core component. As mentioned above, its performance directly determines the quality and energy of the laser beam. Laser generators with different powers are suitable for cutting pipes of different thicknesses and materials. For example, for cutting thin stainless steel pipes, a low-power (such as 500 - 1000 watts) optical fiber laser generator may be sufficient; while for cutting thick-walled carbon steel pipes, a high-power laser generator with more than 3000 watts may be required.

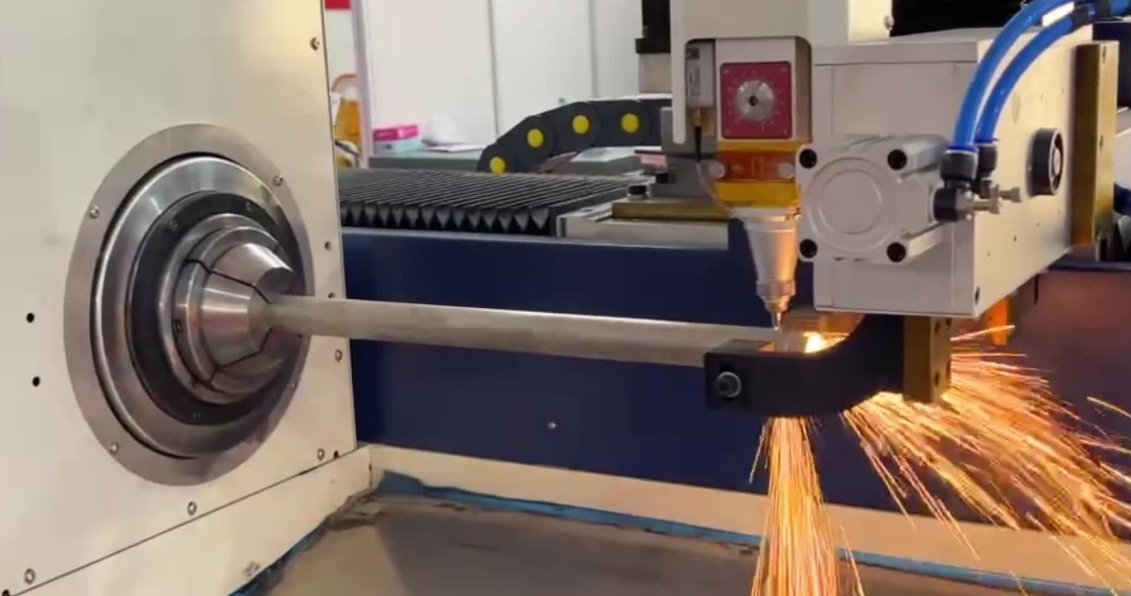

Cutting Head The cutting head is responsible for focusing the laser beam onto the surface of the pipe. It usually contains optical elements such as focusing lenses and can flexibly adjust the focal length to meet the requirements of different pipe diameters and cutting. Some advanced cutting heads also have an automatic focusing function, which can automatically adjust the focal position according to the shape of the pipe and the cutting path during the cutting process to ensure the stability of the cutting quality.
Numerical Control System The numerical control system is the "brain" of the whole machine. It receives the pre-programmed cutting program and controls the movement trajectory, speed of the cutting head and parameters such as the flow rate of the auxiliary gas. Operators can input cutting parameters, such as the length, diameter of the pipe, and the cutting shape (such as circular, square, special-shaped, etc.) through the human-machine interface in the numerical control system. The numerical control system will convert these instructions into motor drive signals to precisely control the cutting process.
Machine Bed and Fixtures The machine bed is the supporting structure of the whole machine and needs to have sufficient rigidity to ensure the stability of the cutting process. Fixtures are used to fix the pipe to prevent it from moving during the cutting process. The design of the fixtures should be adapted to the shape and size of the pipe. For example, for circular pipes, V-shaped blocks or semi-circular fixtures are generally used for fixing; for square pipes, a combination of plane fixtures and side clamping devices can be used to ensure the accurate position of the pipe.
III. Application Fields
Construction Industry It is used to cut various pipes in the construction industry, such as water supply and drainage pipes, fire-fighting pipes, etc. For example, when processing stainless steel fire-fighting pipes, the laser cutting machine can accurately cut out various connection ports and elbow shapes to ensure the tightness and reliability of pipe connections.
Automobile Manufacturing Industry A large number of pipes are used in parts such as the exhaust system and frame structure of automobiles. The pipe laser cutting machine can quickly and accurately cut out pipe parts that meet the design requirements of automobiles, and can also cut out complex patterns or marks on the surface of the pipes for identification and assembly.
Furniture Manufacturing Industry Some modern-style furniture uses metal pipes as frames. Through laser cutting, various uniquely shaped pipe frames can be made, such as curved armrests and special-shaped table legs, providing more creative space for furniture design.
IV. Advantages and Limitations
Advantages
High Precision: It can achieve very precise cutting, and the cutting accuracy can reach ±0.1mm or even higher, which is very important for the processing of pipes with extremely high requirements for dimensional accuracy.
High Speed: Compared with traditional cutting methods (such as sawing, flame cutting, etc.), the laser cutting speed is faster. For example, when cutting a carbon steel pipe with a diameter of 50mm, the laser cutting speed can reach several meters per minute, greatly improving the production efficiency.
Flexibility: It can easily cut out various complex shapes. Whether it is circular, square or pipes with complex curves and hollow patterns, they can all be cut by programming.
High Cutting Quality: The cut surface is smooth, without burrs, and the heat-affected zone is small. This is very beneficial for subsequent processing procedures such as welding and assembly of pipes, reducing the workload of secondary processing.
Limitations
High Equipment Cost: The price of the pipe laser cutting machine is relatively expensive. The costs of core components such as the laser generator and the numerical control system are all high, which may be a large investment for some small enterprises.
Certain Requirements for Materials: Different pipe materials have different characteristics in terms of laser absorption and reaction. Some materials with high reflectivity (such as aluminum, etc.) may require higher energy to achieve effective cutting during laser cutting, and there may be a situation where the reflected laser damages the equipment.
Complex Maintenance: Since the equipment includes high-precision optical systems and electronic systems, its maintenance and repair require professional technicians, and the maintenance cost is also relatively high. For example, the optical lenses in the laser generator need to be regularly cleaned and calibrated, otherwise, the quality of the laser beam and the cutting effect will be affected.
