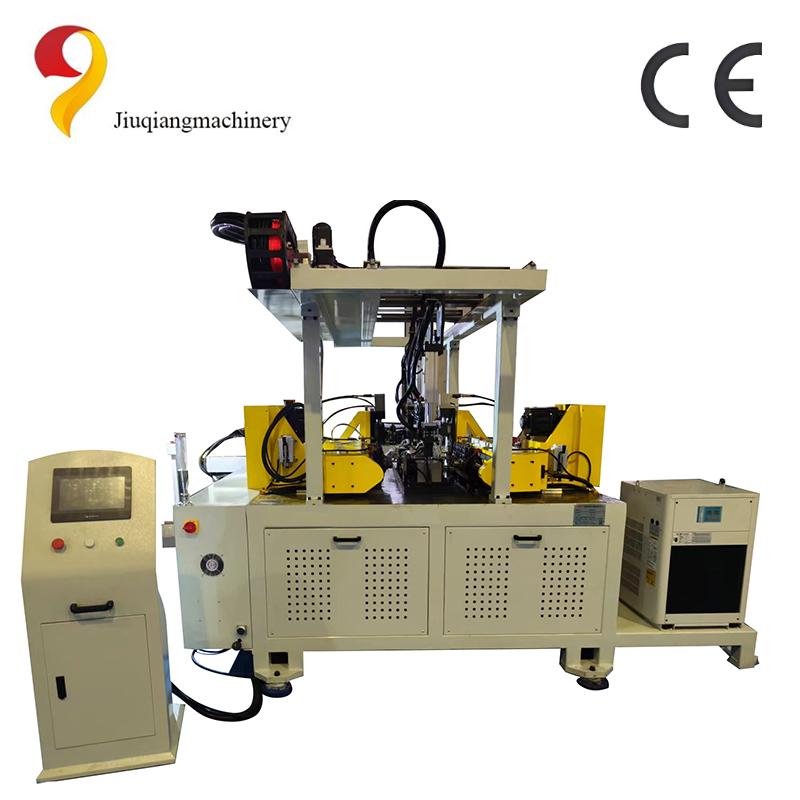

Introduction to Automatic Copper Pipe Bending Machines

Feeding System: This part is responsible for delivering the copper pipe to the bending area accurately and continuously. It often consists of a set of rollers or belts that can adjust the feeding speed according to the bending requirements. In some advanced models, the feeding system is equipped with sensors to detect the position and length of the pipe, ensuring that the correct amount of pipe is fed for each bend.

Bending Mechanism: As mentioned earlier, the bending mechanism includes the bending die and the pressure die. The bending die is usually made of high - strength materials to withstand the forces exerted during the bending process. It can be designed in different shapes to achieve various bending radii. The pressure die, on the other hand, is used to hold the pipe firmly against the bending die during bending, preventing slippage and ensuring a smooth bend.

Control Unit: The control unit, typically a CNC system, is the “brain” of the automatic copper pipe bending machine. It houses the software that processes the input parameters, controls the operation of all the machine's components, and monitors the bending process in real - time. The control unit is usually equipped with a user - friendly interface, such as a touch - screen display, which allows operators to easily input parameters, program bending sequences, and view the machine's operating status.

Hydraulic or Pneumatic System: Many automatic copper pipe bending machines use hydraulic or pneumatic systems to generate the necessary force for bending. Hydraulic systems, in particular, are popular due to their ability to provide high - force output with precise control. The hydraulic system consists of pumps, valves, cylinders, and hydraulic fluid. The valves control the flow of hydraulic fluid to the cylinders, which then drive the movement of the bending die and other components.

High Precision: Automatic copper pipe bending machines can achieve extremely high levels of precision. With the help of advanced CNC technology and servo - motor control, the bending accuracy can reach within ±0.1mm or even higher in some high - end models. This high precision is essential for applications where the slightest deviation in the bend can lead to system failures or inefficiencies, such as in aerospace hydraulic systems or high - performance automotive thermal management systems.

Enhanced Productivity: These machines can operate continuously at high speeds, significantly increasing productivity compared to manual or semi - automatic bending methods. They can perform repetitive bending tasks with consistent quality, reducing the time required for each bend. For example, in a large - scale production line of copper pipes for air - conditioning systems, an automatic bending machine can bend hundreds of pipes per hour, while a manual operator can only manage a fraction of that amount.

Reduced Labor Costs: By automating the bending process, automatic copper pipe bending machines require minimal human intervention. This not only reduces the need for a large number of skilled operators but also decreases the risk of human - error - related quality issues. In addition, the machines can operate 24/7, further maximizing production output while minimizing labor costs.

Flexibility: Modern automatic copper pipe bending machines are highly flexible and can handle a wide range of copper pipe sizes, wall thicknesses, and bending requirements. Operators can easily program the machine to change the bending parameters, allowing for quick adaptation to different production orders. Some machines are also capable of performing complex multi - bend operations in a single setup, enabling the production of intricate copper pipe shapes.

Construction Industry: In building construction, automatic copper pipe bending machines are widely used for plumbing and heating, ventilation, and air - conditioning (HVAC) systems. They can create custom - shaped copper pipes that fit the complex layouts of modern buildings. For example, in high - rise buildings, the machines can bend copper pipes to navigate around structural elements, ensuring efficient installation and optimal performance of the plumbing and HVAC systems.

Automotive Industry: With the growth of the automotive industry, especially the development of electric vehicles, automatic copper pipe bending machines have become indispensable. Copper pipes are extensively used in the thermal management systems of vehicles to transfer heat. The high - precision bending capabilities of these machines are crucial for producing copper pipes that fit within the compact engine compartments or battery cooling systems of cars, ensuring the proper functioning of the thermal management systems.

Aerospace and Electronics: In the aerospace industry, where safety and performance are of the highest priority, automatic copper pipe bending machines are used to manufacture hydraulic systems and fuel lines. The pipes need to be bent with extreme precision to meet the strict standards of the aerospace industry. Similarly, in the electronics industry, these machines are used to create copper pipes for heat sinks in high - performance computing devices. The ability to produce intricate shapes with high precision allows for better heat dissipation within the limited space of electronic enclosures.

Industrial Manufacturing: In various industrial manufacturing processes, such as the production of chemical pipelines, power generation equipment, and food and beverage processing plants, automatic copper pipe bending machines are used to fabricate copper pipes for fluid transfer systems. The machines' high productivity and consistent quality make them ideal for large - scale industrial production.

Intelligent and Automated Upgrades: The future of automatic copper pipe bending machines lies in further 智能化 and 自动化 upgrades. With the integration of artificial intelligence (AI) and machine learning (ML) technologies, these machines will be able to self - optimize the bending process based on real - time data. For example, AI algorithms can analyze factors such as the quality of the incoming copper pipes, the wear and tear of the bending dies, and the ambient temperature, and then adjust the bending parameters accordingly to ensure the best possible bending quality. In addition, the machines will be able to communicate with other devices in the production line, such as robots and automated storage systems, to create a fully integrated and automated manufacturing environment.

Energy - efficiency and Sustainability: As environmental concerns become more prominent, there will be a greater emphasis on developing energy - efficient and sustainable automatic copper pipe bending machines. Manufacturers will focus on reducing the energy consumption of these machines through the use of advanced motor control technologies, energy - recovery systems, and more efficient hydraulic or pneumatic components. In addition, the use of recycled materials in the construction of the machines and the reduction of waste generation during the bending process will also be important areas of development.

Customization and Diversification: To meet the increasingly diverse needs of different industries and customers, automatic copper pipe bending machines will become more customizable. Manufacturers will offer a wider range of options for machine configurations, bending capabilities, and control systems, allowing customers to tailor the machines to their specific production requirements. At the same time, the machines will be able to handle a greater variety of materials, not just copper pipes, but also other types of metal pipes and even composite materials, expanding their application scope.
