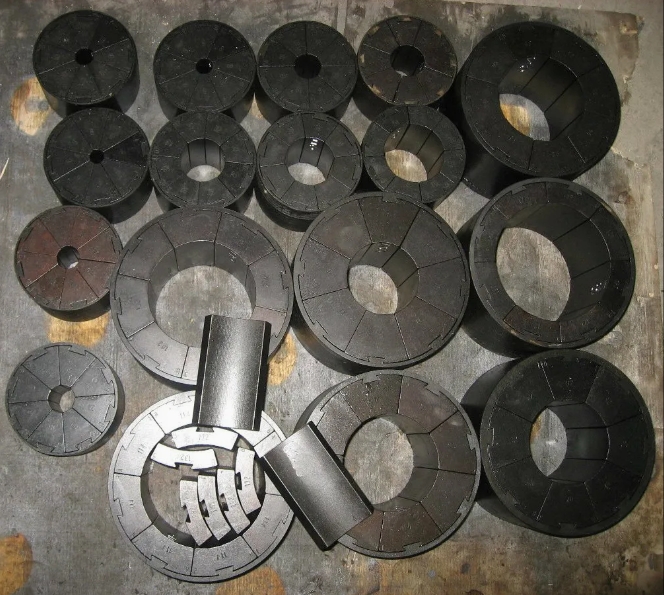

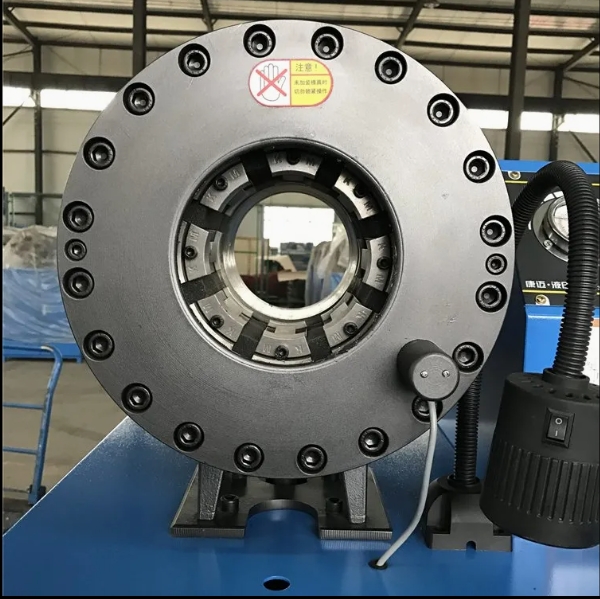

Die Sets for Crimping Stainless Steel Pipes: Typical Hardness Ranges

When it comes to crimping stainless steel pipes, the die sets used play a crucial role, and their hardness is an important factor that affects their performance. The typical hardness range for these die sets can differ based on the specific material from which they are made. Let's take a closer look at some of the commonly used materials and their corresponding hardness ranges:

Hardened steel is frequently utilized in die sets for various crimping applications, and this includes those meant for stainless steel pipes. In general, the hardness of hardened steel die sets typically spans from around 50 to 65 Rockwell C (HRC).

This particular hardness level offers several advantages. Firstly, it provides sufficient resistance to deformation. During the crimping process, significant forces are exerted on the die set as it compresses the ferrule onto the stainless steel pipe and its corresponding fitting. The hardness within this range enables the die set to withstand these forces without undergoing excessive deformation, which is vital for creating a proper and consistent crimp.

Secondly, it also affords a reasonable level of wear resistance. However, it's important to note that compared to some other materials like tungsten carbide, the wear resistance of hardened steel die sets is not as high. Over time, with repeated use in crimping operations, the die set may gradually experience wear, which could potentially affect the quality of the crimped connection. For example, as the die set wears, it might not be able to apply the pressure evenly or with the precise amount of force required, leading to less reliable crimps.

Tungsten carbide is a highly preferred material for die sets when it comes to crimping stainless steel pipes, thanks to its outstanding properties. The hardness of tungsten carbide die sets usually falls within the range of 85 to 92 Rockwell A (HRA).

This extremely high hardness endows tungsten carbide die sets with remarkable characteristics. It makes them highly resistant to deformation. When subjected to the intense forces involved in crimping stainless steel pipes, such as the high pressure required to compress the ferrule tightly onto the pipe and fitting, tungsten carbide die sets can maintain their shape and integrity without deforming. This ensures that the crimping process is carried out accurately and consistently, resulting in reliable and high-quality crimped connections.

Moreover, the high hardness also makes tungsten carbide die sets highly resistant to wear. The abrasion that occurs during the crimping process, due to the contact between the die set and the stainless steel pipe as well as the ferrule, has minimal impact on tungsten carbide. As a result, these die sets can withstand numerous crimping operations without significant wear, thereby maintaining their performance over a long period.

It's crucial to bear in mind that the specific hardness within these mentioned ranges (both for hardened steel and tungsten carbide die sets) may vary slightly. This variation depends on the exact composition of the material used in the die set. Different formulations of hardened steel or tungsten carbide can lead to slightly different hardness levels. Additionally, the manufacturing process itself can also influence the hardness. For instance, factors such as heat treatment methods, cooling rates, and the addition of certain alloying elements during the manufacturing of the die set can all impact its final hardness.

Furthermore, the choice of die set hardness is not solely determined by the material itself. Other factors also come into play. The diameter and wall thickness of the stainless steel pipe being crimped are important considerations. Thicker-walled pipes may require die sets with higher hardness to ensure effective crimping, as they can withstand greater forces without deformation. On the other hand, smaller diameter pipes might need die sets with a more appropriate hardness level to apply the correct amount of pressure evenly.

The specific requirements of the crimping operation in terms of force and precision also affect the choice of die set hardness. If a crimping operation demands a high level of precision and a specific amount of force to create a perfect crimp, then the hardness of the die set needs to be carefully selected to meet these demands. For example, in applications where a very tight and leak-proof crimp is essential, a die set with the appropriate hardness that can apply the necessary force precisely will be required.

In summary, understanding the typical hardness ranges of different die set materials used in crimping stainless steel pipes, as well as the factors that influence the choice of hardness, is essential for achieving optimal crimping results and ensuring the reliability and quality of the crimped connections.
