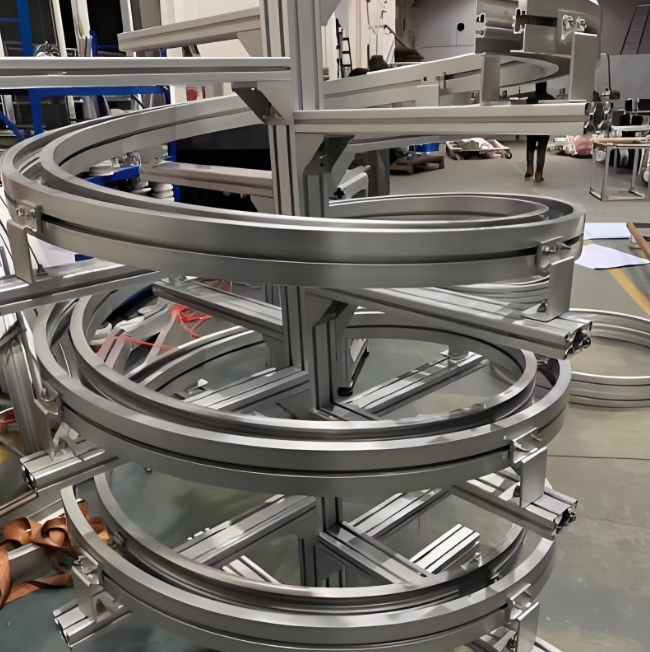

Bending Equipment for T-shaped Aluminum Alloy I-beam Anti-fall Rails of Power Transmission Towers
Hydraulic Drive Principle: This equipment usually adopts a hydraulic system for driving. The hydraulic pump delivers hydraulic oil to the hydraulic cylinder, and the piston movement in the hydraulic cylinder generates huge pressure, which acts on the bending die to make the aluminum alloy I-beam undergo plastic deformation. For example, when a specific bending angle is required, by controlling the pressure of the hydraulic system and the stroke of the piston, the bending angle can be precisely controlled.

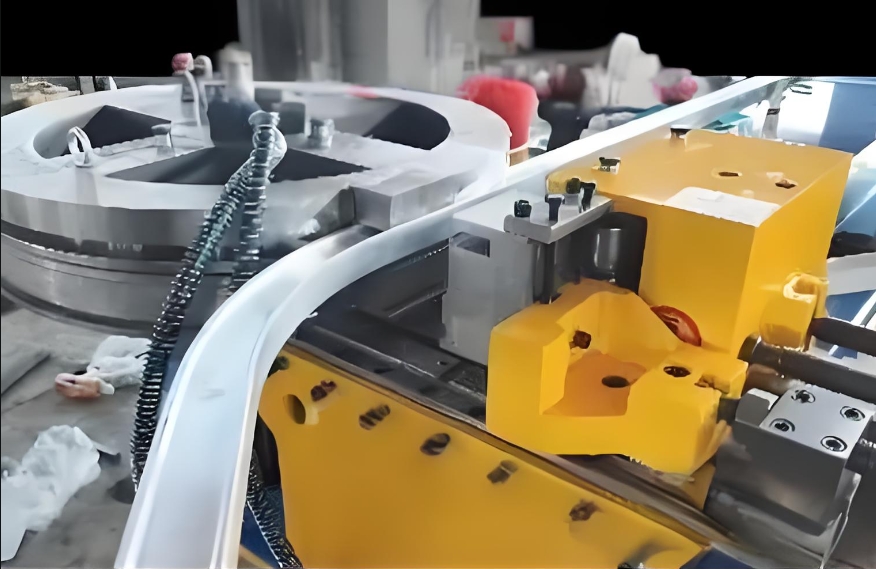

Die Forming Principle: It is equipped with specially designed bending dies. The shape and size of the dies are customized according to the cross-sectional shape of the T-shaped aluminum alloy I-beam and the required bending shape. The dies generally include a fixed die and a movable die. During the bending process, the workpiece (aluminum alloy I-beam) is placed between the dies, and the movable die approaches the fixed die under the drive of the hydraulic system, so that the workpiece gradually conforms to the shape of the die and is bent.
Key Components
Hydraulic System:
The hydraulic pump is the power source of the entire hydraulic system, and its performance directly affects the working efficiency and bending force of the bending equipment. A high-quality hydraulic pump can provide a stable flow rate and pressure of hydraulic oil to ensure the smooth progress of the bending process.
The hydraulic cylinder is the actuating element, and the diameter and stroke of its piston determine the range of the bending force and bending angle. For example, a piston with a larger diameter can generate a greater bending force, which is suitable for thicker or higher-strength aluminum alloy I-beams.
The hydraulic valves are used to control the flow direction and pressure of the hydraulic oil. By adjusting the hydraulic valves, precise control over parameters such as the bending speed, bending force, and bending angle can be achieved.
Bending Dies:
The material of the dies usually selects high-strength alloy steel, such as Cr12MoV. This material has high hardness, high wear resistance, and good thermal stability, which can withstand the high pressure and friction during multiple bending processes and ensure the service life of the dies.
The design of the dies should take into account the special shape of the T-shaped aluminum alloy I-beam. The positioning and fixation of the T-shaped part are very crucial. The surface of the dies is usually finely processed and heat-treated to ensure that the workpiece can smoothly fit the die during the bending process and has good surface quality.
Technical Parameters
Bending Angle Range: Generally, it can achieve a bending angle ranging from 0 to 180 degrees, with an accuracy of ±0.5 degrees. This is very important for meeting the complex installation shape requirements of anti-fall rails on power transmission towers.
Bending Force: Depending on different equipment specifications, the bending force can range from dozens of tons to hundreds of tons. For example, for aluminum alloy I-beams with larger cross-sectional dimensions and harder materials, a larger bending force may be required, and the maximum bending force of the equipment can reach about 300 tons.
Processing Workpiece Size Range: It can handle different specifications of T-shaped aluminum alloy I-beams. For example, the height of the T-shaped part can adapt to a range from 20 mm to 100 mm, and the width of the web of the I-beam can range from 100 mm to 500 mm.
Application Advantages
High Precision: In the construction of power transmission towers, the installation precision requirements for anti-fall rails are very high. This bending equipment can precisely control the bending angle and shape, ensuring the installation precision of the rails and improving the overall safety of the power transmission towers.
High Efficiency: Compared with traditional manual bending or simple bending tools, this equipment can achieve automated or semi-automated operations, greatly improving production efficiency and shortening the processing cycle of anti-fall rails for power transmission towers.
Stable Quality: Through precise hydraulic control and high-quality dies, it can ensure the stable quality of each bending operation and reduce potential safety hazards caused by bending quality problems.
